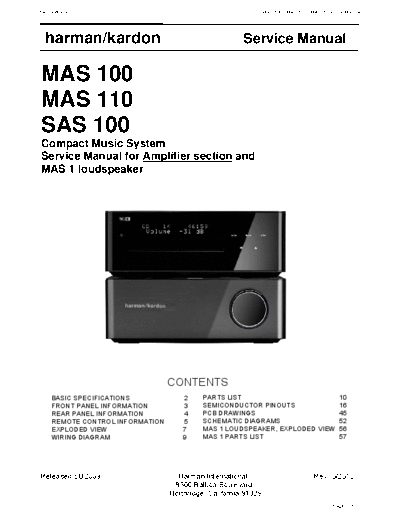

Image preview - the first page of the document
>> Download MAS-100 & 110 & SAS-110 Rev 3 documenatation <<
Text preview - extract from the document
harman/kardon MAS 100 / MAS 110 / MAS 1 Service Manual
harman/kardon Service Manual
MAS 100
MAS 110
SAS 100
Compact Music System
Service Manual for Amplifier section and
MAS 1 loudspeaker
CONTENTS
BASIC SPECIFICATIONS 2 PARTS LIST 10
FRONT PANEL INFORMATION 3 SEMICONDUCTOR PINOUTS 16
REAR PANEL INFORMATION 4 PCB DRAWINGS 45
REMOTE CONTROL INFORMATION 5 SCHEMATIC DIAGRAMS 52
EXPLODED VIEW 7 MAS 1 LOUDSPEAKER, EXPLODED VIEW 56
WIRING DIAGRAM 9 MAS 1 PARTS LIST 57
Released EU2009 Harman International Rev , 0 /2012
8500 Balboa Boulevard
Northridge, California 91329
Page 1 of 57
harman/kardon MAS 100 / MAS 110 / MAS 1 Service Manual
TECHNICAL SPECIFICATIONS
SYSTEM: CD SECTION:
THD < 0.07%, into 6 ohms, both channels driven
>65dB
> 65dB
> 96dBr
>70dB
> 94dBr
GENERAL:
LOUDSPEAKERS:
composite drivers, ported
(both channels driven)
domes, shielded
FM TUNER SECTION:
Harman Kardon is a trademark of Harman International Industries,
Incorporated, registered in the United States and/or other countries.
Harman International Industries, Incorporated.
iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
means that an electronic accessory has been designed to connect specifically
to iPod and has been certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards.
Please register your product at www.harmankardon.com. You'll need your
product's serial number. At the same time, you can choose to be notified
about new products and/or special promotions.
Page 2 of 57
MAS 100 / MAS 110 / MAS 1 Service Manual
harman/kardon
FRONT-PANEL CONTROLS
CONTROLLER AND AMPLIFIER
The MAS 100 and MAS 110 use touch-sensitive controls. To use a control, tap Play/Pause: Each tap toggles between the Play and Pause functions.
gently on its lit icon.
Stop: Fully stops playback.
NOTE: Controls are the same for all models. Eject: When a CD is loaded, tap here to eject it.
USB Port A: Connect a compatible USB device here to enjoy playback
Power: Turns the MAS 100/MAS 110 on or places it in Standby mode. To of audio MP3 or WMA files. Although most USB flash and hard-disk drives in
completely power off the unit, unplug the power supply. the FAT32 file format, as well as many MP3 players, are compatible with the
Message Display: The time and messages are displayed MAS 100 and MAS 110 systems, due to the wide variety of manufacturers,
in this two-line text display. playback cannot be guaranteed. Do not connect an iPod or iPhone to this port.
Do not connect a personal computer or any peripherals to this port.
CD Slot: Load compatible discs here.
Line-In Jack (Line Input): Connect a 3.5mm male-
Skip/Scan Forward/Reverse: These buttons function diffe- to-male cable (not included) to the headphone or line-level
rently, depending on the current source: output on a portable player or other device.
iPod, CD or USB: Press and release to skip to the next track. Press Headphone Jack: Outputs a stereo signal for private
the reverse button twice to skip to the previous track. Press and hold to scan listening through most headphones that are equipped with
forward or reverse within a track. a 3.5mm plug.
Radio: Press and release to select the next programmed preset station. Volume Control: Increases or decreases the volume.
Press and hold to scan quickly through the stations. When you release the
button, the tuner continues to scan until it finds a station of acceptably strong
signal quality, and then it stops. To stop the scan before a station is found,
press the button again.
Message Display Skip/Scan Forward/Reverse
Note: Controls are the same for all models.
USB Port
Power
LINE-IN Input
Play/Pause
CD Slot Headphone
Eject
Stop
Volume
Page 3 of 57
MAS 100 / MAS 110 / MAS 1 Service Manual
harman/kardon
REAR-PANEL CONNECTIONS
AMPLIFIER
AC Power
Input
Right Speaker Input From Left Speaker
Output Controller Output
Right and Left Speaker Output Terminals: Use two-conductor
speaker wire to connect each set of terminals to the correct speaker.
Remember to observe the correct polarity (positive and negative con-
nections).
Input From Controller: Connect the included ribbon cable to this
connector and to the corresponding connector on the MAS controller.
This cable passes audio signals from the controller to the amplifier, and
it transfers AC power from the amplifier to the controller. If this cable
is ever damaged, do not use it, and contact Harman Kardon, Inc., for a
replacement.
AC Power Input: After you have made all other connections, plug the
AC power cord into this receptacle and into an unswitched wall outlet.
Page 4 of 57
harman/kardon MAS 100 / MAS 110 / MAS 1 Service Manual
REMOTE CONTROL FUNCTIONS
Power: Turns the MAS 100/MAS 110 on or off. To completely power Playlist: While programming a playlist, press to delete the track just
off the unit, unplug the power supply. entered. After the playlist has been saved by pressing the Stop Button,
press the Clear Button to delete the entire playlist. To delete a single
Sleep: Each press increases the time until turn-off, from 10 to 90 track, stop play, press the Check Button repeatedly until the desired
minutes, in increments of 10 minutes. The next press after the 90 min-
track appears and press the Clear Button. Press the Play Button to exit
utes setting turns off the Sleep function.
Check mode.
Source Selectors: Selects a source input. Each press of the Line Program/Memory: Used to program playlists and radio presets.
In or Digital In Buttons toggles among the available analog (Line Input on
right-side panel; TV, AUX or Phono Input on rear panel) or digital audio Radio: If the current station has not been programmed into a
inputs (Coaxial 1 or 2, Optical 1 or 2), respectively. Press the Bridge preset, press Program/Memory and press the Enter Button to store
Button to select an iPod docked in The Bridge II. the station at the current preset number, or use the Numeric Keys to
enter a different preset number. The new preset will overwrite the
Display: Adjusts the brightness of the Message Display when hold existing one.
pressed for more than one second in every mode or access to some
special information on DAB mode if less than one second. In DAB mode, USB or CD (Audio or Data): Press the Program Button
selects station-defined information when pressed for less than one to begin Program Mode. Add tracks to the playlist by using the Skip/
second. Each press changes the brightness: Full, Half or Off. When the Scan Transport Controls or the Numeric Keys to select the track, then
display is fully dimmed while the system is turned on, the LED inside press the Program Button to enter the selection. Add up to 99 files.
the Volume Knob and the LED behind the Power Button will remain lit to Press Play to play the playlist, or Stop to save the playlist without
remind you that the system is still on. playing it. During playback, the order of the track in the playlist will
appear on the left, with the disc's track number to the right. See
Settings: Accesses menus for Speaker Setup (tone controls), Time page 16.
Setup (clock), Alarm Setup, System Version and System Reset. See the
Operation section for more information. Check: After a playlist has been programmed and play has been
Back: Returns to previous menu level. stopped, each press of the Check Button displays the tracks in the
playlist.
Info: Displays status of current source.
Eject: When a CD is loaded, press this button to eject it.
Radio: When FM band is in use, each press toggles between the
PS (Program Service) and RT (Radio Text) RDS information, if avail- FM Mode: Used with FM radio, each press toggles between Stereo
able. When a DAB radio station is playing, press this button to access and Monaural playback.
the menu system for the DAB tuner. See pages 14 and 15 for more
information. Auto Store: Scans through all frequencies, searching for stations
with acceptably strong signal quality, and stores them as presets.
Audio CD: Displays CD Text information, if available. Each press
displays the following items: Song, Artist, Album. Random: Each press turns Random playback mode (shuffle) on or off.
This mode plays the tracks of the current disc or drive in random order.
USB or Data CD: Scrolls all ID3 tag information for current
source, if available. Each press displays the following individual Transport Controls
items: Song, Artist, Album, File type, Folder, then back to scrolling. If
Track-Skip/Tuning Up/Down: These buttons function differ-
ID3 tags are not available, the filename will appear.
ently, depending on which source has been selected:
Time: Displays elapsed track time for the current Audio CD (no effect
on data CDs or other sources). Each additional press changes the display iPod, CD or USB: Press and release to skip to the next track.
as follows: remaining track time, elapsed disc time, remaining disc time, Press the reverse button twice to skip to the previous track.
then back to elapsed track time. Radio: Press and release the Track Skip Buttons to tune to the
/ / Navigation Buttons: Use the and Buttons to next higher or lower station by one frequency increment. Press
scroll forward and reverse through the Settings Menus, or through lists of and hold to scan quickly through the stations.
content, and press the Enter Button to make selections. Press the Back Scan Forward/Reverse: Press and hold to scan forward or in
Button to return to the previous menu or content level. reverse within a track when the iPod, CD or USB sources are playing.
Enter: Selects a menu item, or saves setting changes and returns to Play/Pause: Each tap toggles between the Play and Pause func-
the previous menu level. tions.
Clear: Clears the current preset station or a playlist entry. Stop: Fully stops playback.
Radio: To delete the current preset station, press the Clear Button
while it is playing.
Page 5 of 57
harman/kardon MAS 100 / MAS 110 / MAS 1 Service Manual
REMOTE CONTROL FUNCTIONS
