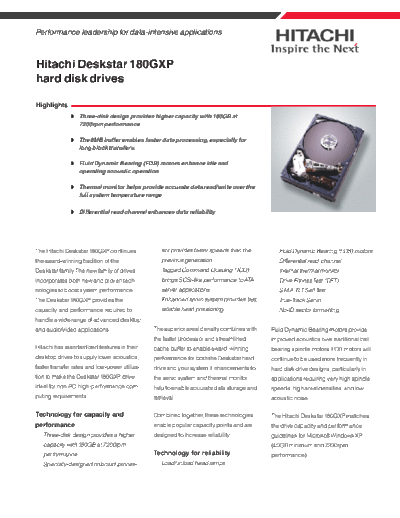

Image preview - the first page of the document
>> Download Hitachi Deskstar 180GXP documenatation <<
Text preview - extract from the document
Performance leadership for data-intensive applications
Hitachi Deskstar 180GXP
hard disk drives
Highlights
Three-disk design provides higher capacity with 180GB at
7200rpm performance
The 8MB buffer enables faster data processing, especially for
long block transfers.
Fluid Dynamic Bearing (FDB) motors enhance idle and
operating acoustic operation
Thermal monitor helps provide accurate data read/write over the
full system temperature range
Differential read channel enhances data reliability
The Hitachi Deskstar 180GXP continues sor provides faster speeds than the Fluid Dynamic Bearing (FDB) motors
the award-winning tradition of the previous generation. Differential read channel
Deskstar family. The new family of drives Tagged Command Queuing (TCQ) Internal thermal monitor
incorporates both new and proven tech- brings SCSI-like performance to ATA Drive Fitness Test (DFT)
nologies to boost system performance. server applications. S.M.A.R.T Self Test
The Deskstar 180GXP provides the Enhanced servo system provides fast, True-Track Servo
capacity and performance required to reliable head positioning. No-ID sector formatting
handle a wide range of advanced desktop
and audio/video applications. The superior areal density combines with Fluid Dynamic Bearing motors provide
the faster processor and streamlined improved acoustics over traditional ball
Hitachi has standardized features in their cache buffer to enable award-winning bearing spindle motors. FDB motors will
desktop drives to supply lower acoustics, performance for both the Deskstar hard continue to be used more frequently in
faster transfer rates and low-power utiliza- drive and your system. Enhancements to hard disk drive designs, particularly in
tion to make the Deskstar 180GXP drive the servo system and thermal monitor applications requiring very high spindle
ideal for non-PC, high-performance com- help to enable accurate data storage and speeds, high areal densities, and low
puting requirements. retrieval. acoustic noise.
Technology for capacity and Combined together, these technologies The Hitachi Deskstar 180GXP matches
performance enable popular capacity points and are the drive capacity and performance
Three-disk design provides a higher designed to increase reliability. guidelines for Microsoft Windows XP-
capacity with 180GB at 7200rpm (40GB minimum and 7200rpm
performance. Technology for reliability performance).
Specially-designed onboard proces- Load/unload head ramps
Hitachi Deskstar 180GXP Specifications
Product name Deskstar 180GXP
Model names IC35L180AVV207-1
IC35L120AVV207-0 or 1
IC35L090AVV207-0 or 1 Hitachi Global Storage Technologies
IC35L060AVV207-0
Configuration
Interface ATA-6
Capacity (GB) 180/120/80/60
Sector size (bytes) 512
Recording zones 27
Data heads (physical) 6/4/3/2
Data disks 3/2/2/1
Max. areal density (Gbits/sq. inch) 45.5
Max. recording density (BPI) 632,000
Track density (TPI) 72,000
Performance
Data buffer4 8 MB / 2 MB (3D-8M, 1D-2M, 2D-2M/8M)
For more information
Rotational speed (rpm) 7,200 Internet and e-mail:
Latency average (ms) 4. 7
1
Media transfer rate (max. Mbits/sec)
Interface transfer rate (max. MB/sec)
699
100
