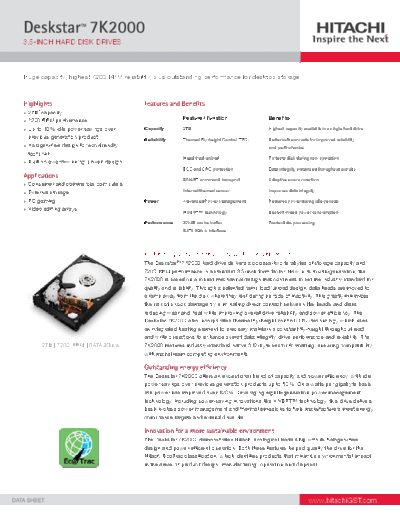

Image preview - the first page of the document
>> Download Hitachi Deskstar 7K2000 documenatation <<
Text preview - extract from the document
DeskstarTM 7K2000
3.5-INCH HARD DISK DRIVES
Huge capacity, highest 7200 RPM reliability, plus outstanding performance for desktop storage
Highlights Features and Benefits
> 2TB1 capacity
Feature / Function Benefits
> 7200 RPM performance
> Up to 10% idle power savings over Capacity 2TB Highest capacity available in a single hard drive
previous generation product Reliability Thermal Fly-height Control (TFC) Better soft error rate for improved reliability
> Halogen-free design for eco-friendly and performance
footprint
Head load/unload Protects disk during non-operation
> Built on award-winning proven design
ECC and CRC protection Data integrity enhanced throughout circuits
Applications
SMART command transport Adaptive error correction
> Consumer and commercial computers
> External storage Internal thermal sensor Improves data integrity
> PC gaming Power Advanced Power Management Reduces power during idle periods
> Video editing arrays
HiVERTTM technology Best-of-breed power consumption
Performance 32MB cache buffer Faster data processing
SATA 3Gb/s interface
Highest capacity and reliability with a proven design
The DeskstarTM 7K2000 hard drive delivers a colossal two terabytes of storage capacity and
7200 RPM performance in a standard 3.5-inch form factor. Now in its fourth-generation, the
7K2000 is based on a robust mechanical design that continues to set the industry standard for
quality and reliability. Through a patented ramp load/unload design, data heads are moved to
a ramp away from the disk where they rest during periods of inactivity. This greatly minimizes
the risk of shock damage by eliminating direct contact between the heads and disks,
reducing wear and heat while improving overall drive reliability and power efficiency. The
Deskstar 7K2000 also incorporates thermal fly-height control (TFC) technology which uses
an integrated heating element to precisely maintain a constant fly-height throughout read
and write operations to enhance overall data integrity, drive performance and reliability. The
2TB | 7200 RPM | SATA 3Gb/s 7K2000 features industry-standard native 512-byte sector formatting, ensuring compatibility
with mainstream computing environments.
Outstanding energy efficiency
The Deskstar 7K2000 offers an exceptional blend of capacity and power efficiency, with idle
power savings over previous generation products up to 10%. On a watts per gigabyte basis,
idle power has improved over 120%. Leveraging eighth-generation power management
technology, including power-saving innovations like HiVERTTM technology, this drive delivers
best-in-class power management and thermal emissions to help manufacturers meet energy
compliance targets and extend drive life.
Innovation for a more sustainable environment
The Deskstar 7K2000 demonstrates Hitachi ecological leadership with its halogen-free
design and power-efficient operation. Both these features helped qualify the drive for the
Hitachi EcoTrac classification, which identifies products that minimize environmental impact
in the areas of product design, manufacturing, operation and disposal.
www.hitachiGST.com
DeskstarTM 7K2000
Specifications
Model(s) HDS722020ALA330
Hitachi quality and service
All Hitachi hard drives are designed to the
Configuration
highest quality standards with field-proven
Interface SATA 3Gb/s
components. They are backed by Hitachi's
Capacity (TB)1 2
worldwide technical support and integration
Sector size (bytes) 512
services, enabling customers around the globe
Max. areal density (Gbits/sq. in.) 285
Performance
to bring their products to market quickly.
Data buffer (MB)2 32 How to read the Deskstar model number
Rotational speed (RPM) 7200 HDS722020ALA330 = 2TB, 32MB buffer
Media transfer rate (Mbits/s, max) 1621 H = Hitachi
Interface transfer rate (MB/s, max) 300 D = Deskstar
Reliability S = Series prefix
72 = 7200 RPM
Error rate (non-recoverable, bits read) 1 in 1014
20 = Full capacity--2TB
Load/unload cycles (at 40◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
