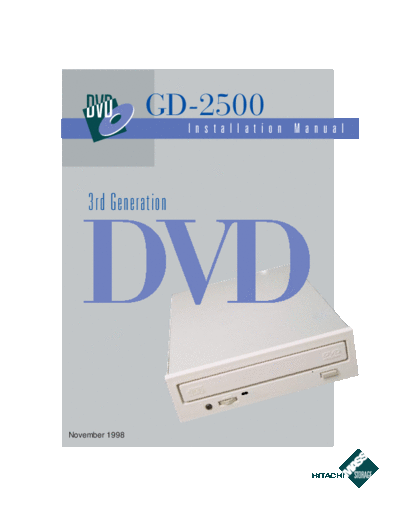

Image preview - the first page of the document



>> Download Hitachi GD-2500 documenatation <<

Text preview - extract from the document

                GD-2500
                     I n s t a l l a t i o n M a n u a l




    3rd Generation


  DVD
November 1998
                                                                                                                Important



1. Read all of these instructions carefully and understand them before using your
DVD-ROM drive.

2. Keep this instruction manual for future reference.

3. If this DVD-ROM drive changes ownership, be sure this manual accompanies the
DVD-ROM drive.



                                                                                                                Contents


IMPORTANT SAFEGUARDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

CONTROLS AND FUNCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...9

DRIVE OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..11

EMERGENCY EJECT PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..12

LENS CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..13

TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

MECHANICAL DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15



@1998 Hitachi, Ltd. All rights reserved. Publication Number:




                                                                                                  GD-2500 DVD-ROM Manual 2
                                                                                  For USA



   Note: This equipment has been tested and found to comply with the limits for a Class B
   digital device, pursuant to Part 15 of the FCC RULES. These limits are designed to provide
   reasonable protection against harmful interference in a residential installation. This
   equipment generates, uses and can radiate radio frequency energy and, if not installed and
   used in accordance with the instructions, may cause harmful interference to radio
   communications. However, there is no guarantee that interference will not occur in a
   particular installation. If this equipment does cause harmful interference to radio or
   television reception, which can be determined by turning the equipment off and on, the user
   is encouraged to try to correct the interference by one or more of the following measures:

          1) Re-orientate or relocate the receiving antenna.
          2) Increase the separation between the equipment and receiver.
          3) Connect the equipment into an outlet on a circuit different from
          that to which the receiver is connected.
          4) Consult the dealer or an experienced radio/TV technician for help.

          Caution:

          Changes or modifications not expressly approved by the party
          responsible for compliance could void the user's authority to
          operate the equipment.
