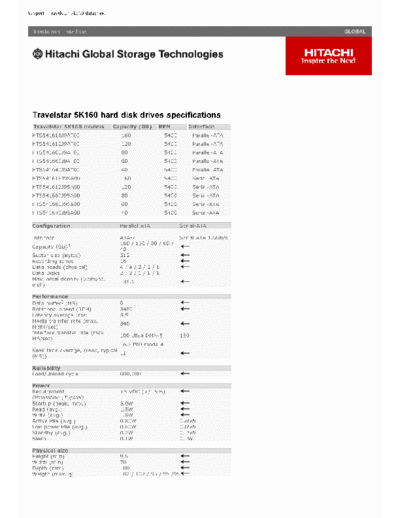

Image preview - the first page of the document



>> Download Hitachi Travelstar 5K160 II documenatation <<

Text preview - extract from the document

Support | Travelstar 5k160 datasheet



  hitachi.com    hitachi.us




  Travelstar 5K160 hard disk drives specifications
  Travelstar 5K160 models              Capacity (GB)    RPM          Interface
  HTS541616J9AT00                        160               5400         Parallel-ATA
  HTS541612J9AT00                        120               5400         Parallel-ATA
  HTS541680J9AT00                        80                5400         Parallel-ATA
  HTS541660J9AT00                        60                5400         Parallel-ATA
  HTS541640J9AT00                        40                5400         Parallel-ATA
  HTS541616J9SA00                        160               5400         Serial-ATA
  HTS541612J9SA00                        120               5400         Serial-ATA
  HTS541680J9SA00                        80                5400         Serial-ATA
  HTS541660J9SA00                        60                5400         Serial-ATA
  HTS541640J9SA00                        40                5400         Serial-ATA

  Configuration                          Parallel ATA             Serial-ATA

  Interface                              ATA-7                    Serial ATA 1.5Gb/s
                                         160 / 120 / 80 / 60 /
  Capacity    (GB) 1
                                         40
  Sector size (Bytes)                    512
  Recording zones                        16
  Data heads (physical)                  4/4/2/2/1
  Data Disks                             2/2/1/1/1
  Max. areal density (Gbits/sq.
                                         131.5
  inch)

  Performance
  Data buffer2 (MB)                      8
  Rotational speed (RPM)                 5400
  Latency average (ms)                   5.5
  Media transfer rate (max.
                                         540
  Mbits/sec)
  Interface transfer rate (max.
                                         100 Ultra DMA-5          150
  MB/sec)
                                         16.6 PIO mode-4
  Seek time average, (read, typical
                                    11
  (MS))

  Reliability
  Load/Unload cycle                      600,000

  Power
  Requirement                            +5 VDC (+/- 5%)
  Dissipation (Typical)
  Startup (peak, max.)                   5.0W
  Read (avg.)                            1.8W
  Write (avg.)                           1.8W
  Active idle (avg.)                     0.80W                    0.85W
  Low power idle (avg.)                  0.60W                    0.65W
  Standby (avg.)                         0.2W                     0.25W
  Sleep                                  0.1W                     0.2W

  Physical size
  Height (mm)                            9.5
  Width (mm)                             70
  Depth (mm)                             100
  Weight (max. g)                        102 / 102 / 95 / 95 /95
Support | Travelstar 5k160 datasheet




  Environmental characteristics
  Operating
  Ambient temperature           5
