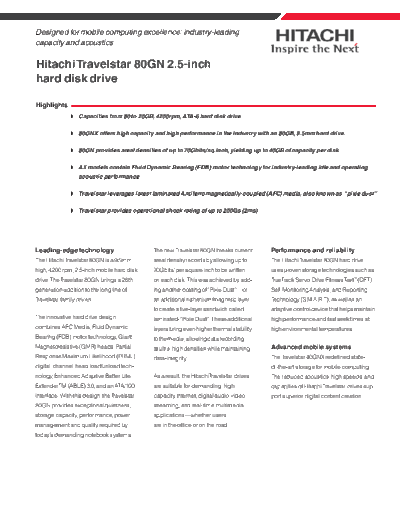

Image preview - the first page of the document
>> Download Hitachi Travelstar 80GN documenatation <<
Text preview - extract from the document
Designed for mobile computing excellence: industry-leading
capacity and acoustics
Hitachi Travelstar 80GN 2.5-inch
hard disk drive
Highlights
Capacities from 80 to 20GB, 4200rpm, ATA-6 hard disk drive
80GNX offers high capacity and high performance in the industry with an 80GB, 9.5mm hard drive.
80GN provides areal densities of up to 70Gbits/sq.inch, yielding up to 40GB of capacity per disk
All models contain Fluid Dynamic Bearing (FDB) motor technology for industry-leading idle and operating
acoustic performance
Travelstar leverages latest laminated Antiferromagnetically-coupled (AFC) media, also known as "pixie dust"
Travelstar provides operational shock rating of up to 200Gs (2ms)
Leading-edge technology The new Travelstar 80GN breaks current Performance and reliability
The Hitachi Travelstar 80GN is a 9.5mm areal density records by allowing up to The Hitachi Travelstar 80GN hard drive
high, 4200 rpm, 2.5-inch mobile hard disk 70Gbits/ per square inch to be written uses proven storage technologies such as
drive. The Travelstar 80GN brings a 26th on each disk. This was achieved by add- TrueTrack Servo, Drive Fitness TestTM (DFT),
generation addition to the long line of ing another coating of "Pixie Dust"--or Self-Monitoring Analysis, and Reporting
Travelstar family drives. an additional ruthenium/magnetic layer Technology (S.M.A.R.T as well as an
.),
to create a five-layer sandwich called adaptive control device that helps maintain
The innovative hard drive design laminated-"Pixie Dust". These additional high performance and fast seek times at
combines AFC Media, Fluid Dynamic layers bring even higher thermal stability high environmental temperatures.
Bearing (FDB) motor technology, Giant to the media, allowing data recording
Magnetoresistive (GMR) heads, Partial at ultra-high densities while maintaining Advanced mobile systems
Response Maximum Likelihood (PRML) data-integrity. The Travelstar 40GNX redefined state-
digital channel, head load/unload tech- of-the-art storage for mobile computing.
nology, Enhanced Adaptive Batter Life As a result, the HitachiTravelstar drives The reduced acoustics, high speeds, and
ExtenderTM (ABLE) 3.0, and an ATA/100 are suitable for demanding, high- capacities of Hitachi Travelstar drives sup-
interface. With this design, the Travelstar capacity Internet, digital audio, video port superior digital content creation
80GN provides exceptional quietness, streaming, and real-time multimedia
storage capacity, performance, power applications--whether users
management and quality required by are in the office or on the road.
today's demanding notebook systems.
Hitachi Travelstar hard disk drive characteristics capabilities, higher quality digital audio and
video, and significantly faster processing
Feature Benefit
for data-intensive multimedia and Internet
26th generation of Travelstar hard drives Hitachi Travelstar 80GN has the industry-leading
performance to enable mobile users to work with a new applications.
range of emerging storage-intensive applications.
Drive Noise Suppression System (DNSS) Hitachi Travelstar 80GN incorporates state-of- By using one of the new Travelstar drives
