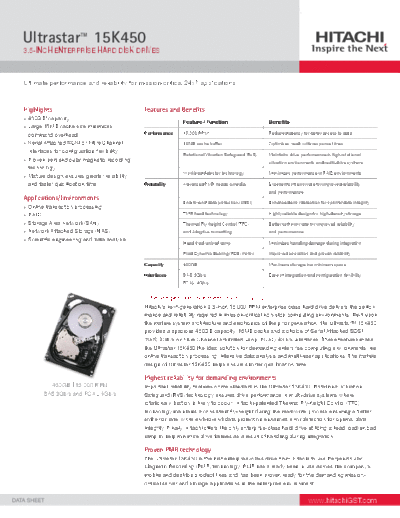

Image preview - the first page of the document
>> Download Hitachi Ultrastar 15K450 documenatation <<
Text preview - extract from the document
UltrastarTM 15K450
3.5-INCH ENTERPRISE HARD DISK DRIVES
Ultimate performance and reliability for mission-critical 24x7 applications
Highlights Features and Benefits
> 450GB1 capacity
Feature / Function Benefits
> Large 16MB cache size minimizes
command overhead Performance 15,000 RPM Reduced latency for faster access to data
> Serial Attached SCSI or Fibre Channel 16MB cache buffer Optimizes read/write response times
interfaces for configuration flexibility
Rotational Vibration Safeguard (RVS) Maintains drive performance in high rotational
> Proven perpendicular magnetic recording vibration environments and multi-drive systems
technology
Workload detector technology Maximizes performance in RAID environments
> Mature design ensures greater reliability
and faster qualification time Reliability Advanced PMR heads & media Excellent soft error rate for improved reliability
and performance
Applications/Environments
End-to-end data protection (ANSI) Enhanced error detection for optimal data integrity
> Online transaction processing
> RAID TMR head technology Highly reliable design for high-density storage
> Storage Area Network (SAN) Thermal Fly-height Control (TFC) Better soft error rate for improved reliability
> Network Attached Storage (NAS) and Adaptive formatting and performance
> Scientific engineering and data analysis
Head load/unload ramp Minimizes handling damage during integration
Fluid Dynamic Bearing (FDB) motor Improved acoustics and proven reliability
Capacity 450GB Maximum storage in a minimum space
Interfaces SAS 3Gb/s Ease of integration and configuration flexibility
FCAL 4Gb/s
Ultimate performance meets high capacity
Hitachi's next-generation 3.5-inch 15,000 RPM enterprise class hard drive delivers the perfor-
mance and reliability required in mission-critical non-stop computing environments. Built upon
the mature system architecture and electronics of the prior generation, the UltrastarTM 15K450
provides a spacious 450GB capacity, 16MB cache and a choice of Serial Attached SCSI
(SAS) 3Gb/s or Fibre Channel Arbitrated Loop (FCAL) 4Gb/s interfaces. These features make
the Ultrastar 15K450 the ideal solution for demanding enterprise computing environments like
online transaction processing, intensive data analysis and multi-user applications. The mature
design of Ultrastar 15K450 helps ensure shorter qualification time.
Highest reliability for demanding environments
450GB | 15,000 RPM Important reliability features come standard in the Ultrastar 15K450. Rotational Vibration
SAS 3Gb/s and FCAL 4Gb/s Safeguard (RVS) technology ensures drive performance in multi-drive systems where
rotational vibration is likely to occur. Hitachi-patented Thermal Fly-height Control (TFC)
technology maintains a consistent fly-height during the read/write process ensuring a better
soft error rate, while end-to-end data protection enhances error detection for optimal data
integrity. Finally, Hitachi offers the only enterprise-class hard drive utilizing a head load/unload
ramp to help minimize drive failures as a result of handling during integration.
Proven PMR technology
The Ultrastar 15K450 is the first enterprise-class drive from Hitachi to use Perpendicular
Magnetic Recording (PMR) technology. PMR has already been in use across the company's
mobile and desktop product lines and has been proven ready for the demanding mission-
critical server and storage applications in the enterprise environment.
www.hitachiGST.com
Ultrastar 15K450
Specifications Hitachi quality and service
Model(s) HUS154545VLS300 HUS154545VLF400 Ultrastar 15K450 extends the company's long-
Interface SAS 3Gb/s FCAL 4Gb/s standing tradition of performance and reliability
Capacity (GB) 1 450 leadership. A balanced combination of new
Sector size (variable, Bytes/sector) 512-528 (4 byte incr.) 512-528 (8 byte incr.) and proven technologies enables high reliability
Recording zones 23 and availability to customer data. Ultrastar
Data heads (physical) 8 product quality, performance, world class
Data disks 4 technical support and service provides customers
Max. areal density (Gbits/sq. in.) 183 with a lower total cost of ownership over
Performance previous generations.
Data buffer (MB) 2 16
Hitachi drives are backed by an array of technical
Rotational speed (RPM) 15,000
support and services, which may include
Latency average (ms) 2.0
Media transfer rate (Mbits/sec, max) 2090 customer and integration assistance. Hitachi is
Interface transfer rate (MB/sec, max) 300 425 dedicated to providing a breadth of hard disk
Sustained transfer rate (MB/sec, typ.) 160-100 (zone 0-22) drive solutions to satisfy all of today's demanding
Seek time (read, ms, typical) 3 3.6 computing needs.
Reliability
Error rate (non-recoverable, bits read) 1 in 1016 How to read the Ultrastar model number
Start/stops 50,000 HUS154545VLF400 = 450GB, FCAL 4Gb/s
Availability (hrs/day x days/wk) 24x7 H = Hitachi
Acoustics U = Ultrastar
Idle (Bels) 3.7 S = Standard (vs C for Compact)
Power 15 = 15,000 RPM
+5 VDC (+/-5%) 45 = Full capacity -- 450GB
Requirement
+12 VDC (+/-5%) 45 = Capacity this model, 45 =450GB
Operating (W, typical) 17.2 17.9 V = Generation code
Idle (W) 13.3 13.4 L = 25.8mm z-height
Power consump. efficiency index (W/GB) 0.03 F4 = Interface, F4 = FCAL 4Gb/s (S3 = SAS 3Gb/s)
Physical size 0 = Reserved
0 = Reserved
z-height (mm) 25.8
Dimensions (width x depth, mm) 101.6 x 146.2 Information and Technical Support
Weight (g, max.) 750
www.hitachigst.com (Main Web site)
Environmental (operating)
www.hitachigst.com/partners (Partner Web site)
Ambient temperature 5o to 55o C
Shock (half-sine wave) 30G (2ms) North America
Vibration, random (G RMS 5 to 500 Hz) 1.2, all axes [email protected]
Toll free: 1 888 426-5214, Direct: 1 507 322-2370
Environmental (non-operating)
Asia Pacific
Ambient temperature -40o to 70o C
[email protected] / 65 6840 9595
Shock (half-sine wave) 250G (2ms)
EMEA and UK
Vibration, random (G RMS 5 to 500 Hz) 1.04, all axes [email protected] / 44 20 7133 0032
1 One GB is equal to one billion bytes when referring to hard drive capacity. Accessible capacity may be less.
2 Portion of buffer capacity used for drive firmware
Germany
3 Excludes command overhead [email protected] / 49 6929 993601
Program Support
Partners FirstTM Program
[email protected]
