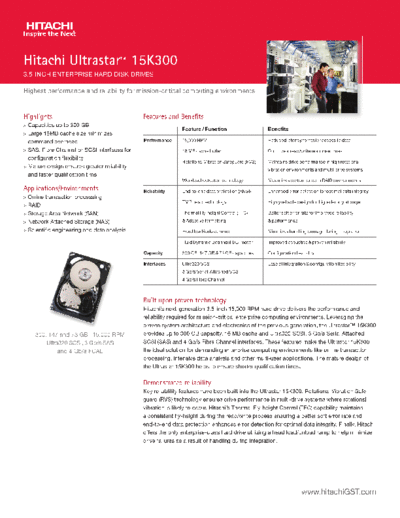

Image preview - the first page of the document
>> Download Hitachi Ultrastar 15K300 documenatation <<
Text preview - extract from the document
Hitachi UltrastarTM 15K300
3.5-INCH ENTERPRISE HARD DISK DRIVES
Highest performance and reliability for mission-critical computing environments
Highlights Features and Benefits
> Capacities up to 300 GB 1
Feature/Function Benefits
> Large 16MB cache size minimizes
command overhead Performance 15,000 RPM Reduced latency for faster access to data
> SAS, Fibre Channel or SCSI interfaces for 16 MB cache buffer Optimizes read/write response times
configuration flexibility
Rotational Vibration Safeguard (RVS) Maintains drive performance in high rotational
> Mature design ensures greater reliability
vibration environments and multi-drive systems
and faster qualification time
Workload detector technology Maximizes performance in RAID environments
Applications/Environments Reliability End-to-end data protection (ANSI) Enhanced error detection for optimal data integrity
> Online transaction processing
TMR head technology Highly reliable design for high-density storage
> RAID
> Storage Area Network (SAN) Thermal Fly-height Control (TFC) Better soft error rate for improved reliability
> Network Attached Storage (NAS) & Adaptive formatting & performance
> Scientific engineering and data analysis Head load/unload ramp Minimizes handling damage during integration
Fluid Dynamic Bearing (FDB) motor Improved acoustics & proven reliability
Capacity 300 GB, 147 GB & 73 GB capacities Configuration flexibility
Interfaces Ultra320 SCSI Ease of integration & configuration flexibility
3 Gb/s Serial-Attached SCSI
4 Gb/s Fibre Channel
Built upon proven technology
Hitachi's next-generation 3.5-inch 15,000 RPM hard drive delivers the performance and
reliability required for mission-critical enterprise computing environments. Leveraging the
proven system architecture and electronics of the previous generation, the UltrastarTM 15K300
300, 147 and 73 GB | 15,000 RPM provides up to 300 GB capacity, 16 MB cache and Ultra320 SCSI, 3 Gb/s Serial Attached
Ultra320 SCSI, 3 Gb/s SAS SCSI (SAS) and 4 Gb/s Fibre Channel interfaces. These features make the Ultrastar 15K300
and 4 Gb/s FCAL the ideal solution for demanding enterprise computing environments like online transaction
processing, intensive data analysis and other multi-user applications. The mature design of
the Ultrastar 15K300 helps to ensure shorter qualification times.
Demonstrated reliability
Key reliablility features have been built into the Ultrastar 15K300. Rotational Vibration Safe-
guard (RVS) technology ensures drive performance in multi-drive systems where rotational
vibration is likely to occur. Hitachi's Thermal Fly-height Control (TFC) capability maintains
a consistent fly-height during the read/write process ensuring a better soft error rate and
end-to-end data protection enhances error detection for optimal data integrity. Finally, Hitachi
offers the only enterprise-class hard drive utilizing a head load/unload ramp to help minimize
drive failures as a result of handling during integration.
www.hitachiGST.com
Ultrastar 15K300 Specifications Hitachi quality and service
Model(s) HUS153030VL3800 HUS153030VLS300 HUS153030VLF400 Hitachi's Ultrastar 15K300 extends the
HUS153014VL3800 HUS153014VLS300 HUS153014VLF400
company's long-standing tradition of perfor-
HUS153073VL3800 HUS153073VLS300 HUS153073VLF400
Interface Ultra320 SCSI 3 Gb/s SAS 4 Gb/s FCAL
mance and reliability leadership. A balanced
Capacity 1
300 GB / 147 GB / 73 GB combination of new and proven technologies
Sector size (variable, Bytes/sector) 512-528 (2 byte incr.) 512-528 (4 byte incr.) 512-528 (8 byte incr.) enables high reliability and availability to
Recording zones 20 customer data. Ultrastar quality, performance,
Data heads (physical) 8/4/2 and world class technical support and service
Data Disks 4/2/1 provides customers with a lower total cost of
Max. areal density (Gbits/sq. in.) 113 ownership over previous generations.
Performance
Data buffer (MB) 2 16 Hitachi drives are backed by an array of techni-
Rotational speed (RPM) 15,000 cal support and services, which may include
Latency average (ms) 2.0 customer and integration assistance. Hitachi is
Media transfer rate (Mbits/sec, max) 1441 dedicated to providing a breadth of hard disk
Interface transfer rate (MB/sec, max) 320 300 425 drive solutions to satisfy all of today's demand-
Sustained transfer rate (MB/sec, typ.) 123-72 (zone 0-19) ing computing needs.
3
Seek time (read, ms, typical) 3.6 / 3.4 / 3.4
Reliability
Error rate (non-recoverable, bits read) 1 in 1016 HowtoreadtheUltrastarmodelnumber
Start/stops 50,000 HUS153030VL3800 = 300 GB, Ultra320 SCSI
Acoustics H = Hitachi
Idle (Bels) 3.5 U = Ultrastar
Power S = Standard (vs C for Compact)
+5 VDC (+/-5%) 15 = 15,000 RPM
Requirement
+12 VDC (+/-5%) 30 = Full capacity -- 300 GB
Operating (W, typical) 18.1 / 14.9 / 13.2 18.5 / 15.4 / 13.7 19.0 / 15.7 / 14.0 30 = Capacity this model, 30 =300 GB
Idle (W) 13.1 / 9.7 / 8.2 13.6 / 10.2 / 8.6 14.1 / 10.7 / 8.9 (14 = 147 GB, 73 = 73 GB)
Power consump. efficiency index (W/GB) 0.044 / 0.066 / 0.112 0.045 / 0.070 / 0.118 0.047 / 0.073 / 0.122 V = Generation code
Physicalsize L = 25.8mm z-height
38 = Interface, Ultra320 SCSI
z-height (mm) 25.8
(S3 = 3.0 Gb/s SAS, F4 = 4GFC)
Dimensions (width x depth, mm) 101.6 x 146.2
0 = Reserved
Weight (g, max.) 745
0 = Reserved
Environmental(operating)
Ambient temperature 5o to 55o C InformationandTechnicalSupport
Shock (half-sine wave) 30 G (2ms) www.hitachigst.com (Main Web site)
Vibration, random (G RMS 5 to 500 Hz) 1.2, all axes www.hitachigst.com/partners (Reseller Web site)
Environmental(non-operating)
NorthAmerica
Ambient temperature -40o to 70o C [email protected]
Shock (half-sine wave) 250 G (2ms) Toll free: 1 888 426-5214, Direct: 1 507 322-2370
Vibration, random (G RMS 5 to 500 Hz) 1.04, all axes AsiaPacific
1 One GB is equal to one billion bytes; accessible capacity may be less
[email protected] / 65 6840 9595
2 Portion of buffer capacity used for drive firmware EMEAandUK
3 Excludes command overhead
[email protected] / 44 20 7133 0032
Germany
[email protected] / 49 6929 993601
