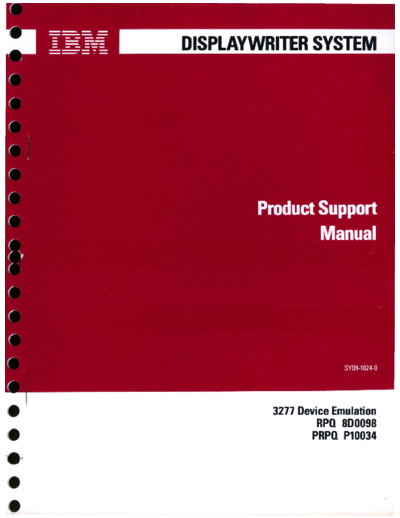

Image preview - the first page of the document
>> Download SY09-1024-0_3277_Device_Emulation_Product_Support_Manual_Nov82 documenatation <<
Text preview - extract from the document
3277 Device Emulation
RPQ 800098
PRPQ P10034
--..- -
----- -
- - ---
- - -----
- -- _.-
------ ---
-.
-~---
--- DISPLAYWRITER SYSTEM
Product Support
Manual
SY09-1024-0
3277 Device Emulation
RPQ 800098
PRPQ P10034
First Edition (November 1982) SAFETY PRECAUTIONS
The drawings and specifications contained herein shall not be All IBM Customer Engineers are expected to take every
reproduced in whole or in part without written permission.
safety precaution possible and observe the following safety
IBM has prepared this maintenance manual for the use of IBM
practices when servicing IBM equipment.
Customer Engineers in the installation, maintenance and repair of
Mechanical Safety:
the specific machines indicated. IBM makes no representations
that it is suitable for any other purpose.
1. Safety glasses must be worn.
2. All safety devices, such as guards, shields, signs, ground
Information contained in this manual is subject to change from wires, etc., must be restored after maintenance. When a
time to time. Any such change will be reported in subsequent guard or shield is removed to observe or make an adjust-
revisions or distributed through Customer Engineering ment, that shield must be replaced when work in the
Memorandums (CEMs) to all subscribers. area is completed.
3. Watches, rings, necklaces, ID bracelets, etc., must be
References in this publication to IBM products, programs, or removed when servicing the machine.
services do not imply that IBM intends to make these available
4. Care must be used when working near moving parts.
in all countries in which IBM operates. Any reference to an IBM
Keep hair away from moving parts. Avoid wearing
program product in this pUblication is not intended to state or
imply that only IBM's program product may be used. Any loose clothing that might be caught in the machine.
functionally equivalent program may be used instead. Shirt sleeves must be kept buttoned or rolled above the
elbows. Ties must be tucked in the shirt or have a tie
Requests for copies of IBM publications should be made to your clasp approximately three inches from the end. Tie
IBM representative or to the IBM Branch Office servicing your chains are not recommended.
locality.
Electrical Safety:
A form for readers' comments is provided at the back of this 1. The equipment referenced in this manual may use high
publication. If the form has been removed, comments may be voltages. Check voltage labels!
addressed to IBM Canada Ltd., Information Development, 2. Safety glasses must be worn when checking energized
Department 849, 1150 Eglinton Avenue East, Don Mills, circuits.
Ontario, Canada M3C IH7. IBM may use or distribute whatever 3. If a circuit is disconnected for servicing or parts replace-
information you supply in any way it believes appropriate ment, it must be reconnected and tested before allowing
without incurring any obligation to you.
the use of the machine.
