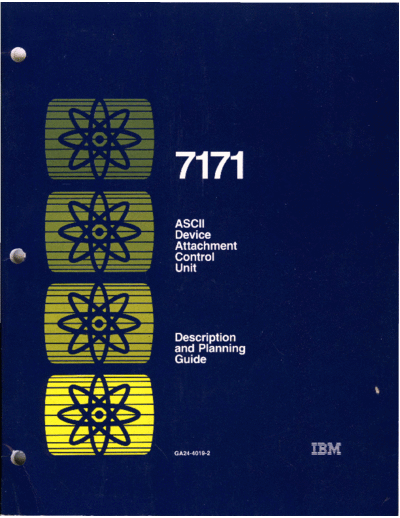

Image preview - the first page of the document
GA24-4019-2_7171_Description_and_Planning_Guide_Apr85


>> Download GA24-4019-2_7171_Description_and_Planning_Guide_Apr85 documenatation <<

Text preview - extract from the document
7171
ASCII
Device
Attachment
Control
Unit




Description
and Planning
Guide




               - --- -
               --- -
               ----
               - ----
               - - ---
                 - ---
GA24-4019-2    --_.-
               -----
Federal Communications Commission (FCC) Statement

Warning: This equipment generates, uses, and can radiate
radio frequency energy and if not installed and used in
accordance with the instruction manual, may cause
interference to radio communications. It has been tested
and found to comply with the limits for a Class A
computing device pursuant to Subpart J of Part 15 of FCC
Rules, which are designed to provide reasonable protection
against such interference when operated in a commercial
environment. Operation of this equipment in a residential
area is likely to cause interference in which case the user at
his own expense will be required to take whatever measures
may be required to correct the interference.




Second Edition (Apri11985)
This edition, GA24-4019-2, is a major revision of GA24-4019-1, and applies to the
initial release of the 7171 ASCII Device Attachment Control Unit and to all
subsequent releases of this product until otherwise indicated in new editions or
Technical Newsletters. The changes incorporated in this revision are primarily for
release to non-US countries.

Changes or additions to the text and illustrations are indicated by a vertical line
to the left of the change.

References in this publication to IBM products, programs, or services do not imply
that IBM intends to make these available in all countries in which IBM operates.
Any reference to an IBM program product in this publication is not intended to
state or imply that only IBM's program product may be used. Any functionally
equivalent program may be used instead.

Publications are not stocked at the address given below; requests for IBM
publications should be made to the IBM branch office serving your locality.

A form for readers' comments is provided at the back of this publication. If the
form has been removed, comments may be addressed to IBM Corporation,
Engineering/Scientific Systems, Department X06, P.O. Box 6, Endicott, NY, U.S.A.
13760. IBM may use or distribute whatever information you supply in any way it
believes appropriate without incurring any obligation to you.
