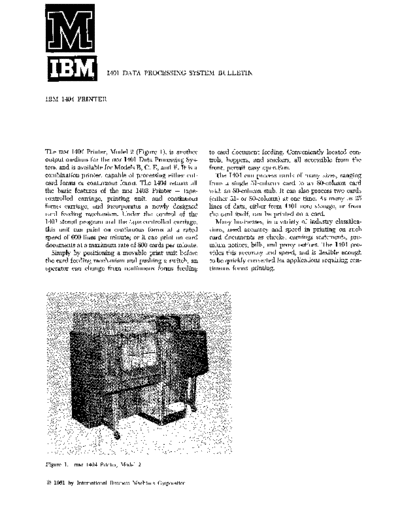

Image preview - the first page of the document



>> Download G24-1446-0_1404_printer documenatation <<

Text preview - extract from the document

                         1401 DATA PROCESSING           SYSTE~1   BULLETIN



IB~,,1   1404 PRINTER




The IBM 1404 Printer, Model 2 (Figure 1), is another         to card document feeding. Conveniently located con-
output medium for the IBM 1401 Data Processing Sys-          trols, hoppers, and stackers, all accessible from the
tem, and is available for Models B, C, E, and F. It is a     front, permit easy operation.
combination printer, capable of processing either cut-          The 1404 can process cards of many sizes, ranging
card forms or continuous forms. The 1404 retains all         from a single 51-column card to an 80-column card
the basic features of the IBM 1403 Printer - tape-           with an 80-column stub. It can also process two cards
controlled carriage, printing unit, and continuous           (either 51- or 80-column) at one time. As many as 25
forms carriage, and incorporates a newly designed            lines of data, either from 1401 core storage, or from
card feeding mechanism. Under the control of the             the card itself, can be printed on a card.
1401 stored program and the tape-controlled carriage,           Many businesses, in a variety of industry classifica-
this unit can print on continuous forms at a rated           tions, need accuracy and speed in printing on such
speed of 600 lines per minute; or it can print on card       card documents as checks, earnings statements, pre-
documents at a maximum rate of 800 cards per minute.         mium notices, bills, and proxy notices. The 1404 pro-
   Simply by positioning a movable print unit before         vides this accuracy and speed, and is flexible enough
the card feeding mechanism and pushing a switch, an          to be quickly converted for applications requiring con-
operator can change from continuous forms feeding            tinuous forms printing.




Figure 1.   IBM   1404 Printer, Model 2
