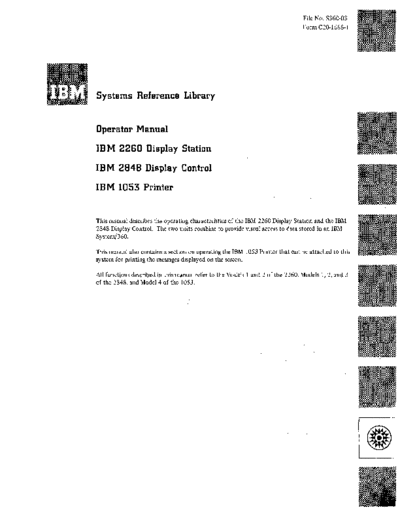

Image preview - the first page of the document



>> Download C20-1688-1_2260_Operator_Manual_Jul68 documenatation <<

Text preview - extract from the document

                                                                                File No. S360-03
                                                                                Form C20-1688-1




Systems Reference Library


Operator Manual

IB M 2260 Display Station

IBM 2848 Display Control

IBM 1053 Printer


This manual describes the operating characteristics of the IBM 2260 Display Station' and the IBM
2848 Display Control. The two units combine to provide visual access to data stored in an IBM
System/360.

This manual also contains a section on operating the IBM 1053 PrInter that can be attached to this
system for printing the messages displayed on the screen.

All functions described in this manual refer to the Models 1 and 2 of the 2260, Models 1, 2, and 3
of the 2848, and Model 4 of the 1053.
CONTENTS


           Introducing the IBM 2260 Display Station                                                     1
           Display Formats                                                                              2
           Controls                                                                                     3
              On/Off . .                                                                                3
              Brightness .                                                                              3
           Control Symbols .                                                                            4
              Cursor . . .                                                                              4
              Destructive Cursor                                                                        4
              Nondestructive Cursor                                                                     4
              Start. .                                                                                  5
              New Line                                                                                  5
              Check                                                                                     6
           Keyboards.                                                                                   7
              Shift.                                                                                    8
              Space/Erase                                                                               8
              Advance                                                                                   8
              Backspace .                                                                               8
              Erase Display                                                                             8
              Start/Up                                                                                  8
              Enter.                                                                                    9
              New Line/Down                                                                             9
              Print. .                                                                                  9
           IBM 1053 Printer Operation                                                                 .11
              Motor On-Off. . .                                                                       .11
              Power . . . . . .                                                                       .11
              Left Margin Set Lever .                                                                 .11
              Paper Insertion                                                                         .12
              Paper Release Lever .                                                                   .12
              Paper Bail and Lever.                                                                   .12
              Line Space
