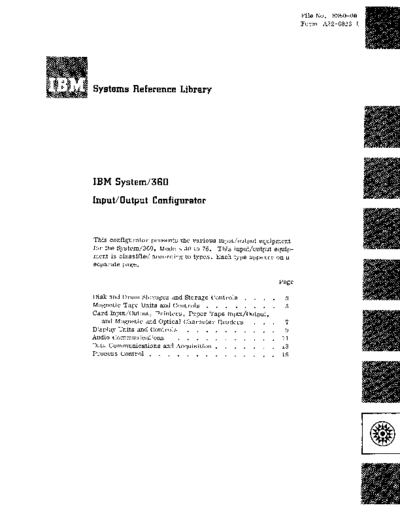

Image preview - the first page of the document
>> Download A22-6823-1_System_360_IO_Configurator_Jul65 documenatation <<
Text preview - extract from the document
File No. S360-00
Form A22-6823-1
Systems Reference Library
IBM System/360
Input/Output Configurator
This configurator presents the various input/output equipment
for the System/360, Models 30 to 75. This input/output equip-
ment is classified according to types. Each type appears on a
separate page.
Page
Disk and Drum Storages and Storage Controls . 3
Magnetic Tape Units and Controls . 5
Card Input/Output, Printers, Paper Tape Input/Output,
and Magnetic and Optical Character Readers 7
Display Units and Controls 9
Audio Communications 11
Data Communications and Acquisition . 13
Process Control . 15
MAJOR REVISION (July, 1965)
This edition, Form A22-6823-1, obsoletes
Form A22-6823-0.
Copies of this and other IBM publications can be obtained through IBM Branch Offices
Address comments concerning the contents of this publication to:
IBM Corporation, Customer Manuals, Dept. B98, PO Box 390, Poughkeepsie, N. Y. 12602
III3 System/360 Input/Output File No. S360-00
Form A22-6823-1
Configurator for Disk and Drum Storages, Storage Controls
(Applicable for Models 30-75 unless otherwise specified)
2311 Disk Storage Drive
2841 Storage Control
- - (Uses 1316 Disk Pack)
Features (Except Mode I 44)
2-Channel Switch
2302-3,4
Additional Storage
Disk Storage
(for 2302-3,4)
Scan
Record Overflow
(Except Model 44)
7320 Drum Storage
7320 Attachment
2302 Attachment
2321 Attachment (Except Model 44)
_ 2321-1 Data Cell Drive
(Models 50-75 Only)
2820 Control Unit
Feature:
2-Channel Switch
2860-1 Max of 2 2820's
-- 2301
Parallel
Drum
2860-2 Max of 3 2820's
2860-3 Max of 4 2820's
For Model 50
Max of One 2820
on High-Speed
Channel Only
(Except Models 30 and 44)
2314 Direct Access Storage
(Uses 2316 Disk Pack)
Feature
2-Channel Switch
* Control feature or adapter required in related control unit
@ Selector Channel
Printed in U. S. A. 3
m System/3S0 Input/Output
File No. S360-00
Form A22-6823-1
Configurator for Magnetic Tape Units and Controls
(Model 30 Only)
(Applicable for Models 30-75 unless othelWise specified)
2415 Magnetic Tape Unit
~CD~--------------------------------------------------------~ and Control
15 KB/sec
~CD 2403 Magnetic Tope Unit
and Control Model 1- Two drives and
(1 Drive + Control for 8) single channel control
Mod Drive Speed T Model 2- Four drives and
1 30 KB/sec single channel control
2402 Magnetic Tape 2401 Magnetic Tape Mode I 3- Six drives and
2 60 KB/sec
Unit (Double Drive) Unit (Single Drive) single channel control
3 90 KB/sec
Mod1 30 KB/sec M~l 30 KB/sec Features
Features Mod2 60 KB/sec Mod2 60 KB/sec Data Conversion
7-Track Compatibility Mod3 90 KB/sec Mod3 90 KB/sec 7-Track Compatibility
Data Conversion
Features Features
16-Drive Addressing
7 -Track Features * 7-Track Feature *
9-Track Feature 9- Track Feature 2401 or 2402
Magnetic
Tape Unit
2816-1 Switching Unit penmits switching of 4 or 8
drives to 2 channels (expandable to 3 or 4 channels).
With 16-Drive Addressing feature and a second 2816,
2803 Tape Control 4,8, 12 ar 16 Drives can be switched between 2, 3
Features or 4 channels.
--
7- Track Compatibil ity 2401 or 2402
Data Conversion Magnetic
16-Drive Addressing Tape Unit
2402 Magnetic Tape 2401 Magnetic Tape
Unit (Double Drive Unit (Single Drive)
Mad1 30 KB/sec Mad1 30 KB/sec
Mod2 60 KB/sec Mad2 60 KB/sec r- - - - - - - - - - - - - - - - - - - - - - - - -,
Mad3 90 KB/sec Mad3 90 KB/sec : Off-Line Operation Only
Features Features
7-Track Feature * 7-Track Feature * I Tape Drive
729- II/IV/V/VI
9-Track Feature 9-Track Feature
I
2404 Magnetic Tape Unit I (at 556 bpi)
7634 7404
~0
and Control I
(1 Drive + Control for 8) or - Graphic Graphic
I Control Output
~CD
2 Ch Rd while Wr Orl Unit
M~ r-, I 2401/2402 - 1, 2, 3 Unit Unit
1 : 2402 Magnetic Tape 2401 Magnetic Tape I 2403 - 1, 2
Unit (Double Drive) Unit (Single Drive)
2 I
Mod 1 30 KB/sec Mod 1 30 KB/sec
I (with 9- Track Read/Write Head)
3 I
I Mod 2 60 KB/sec Mod 2 60 KB/sec I ____________________ _
L
I Mod 3 90 KB/sec Mod 3 90 KB/sec
I I Features Features
L_...J 7-Track Feature*
7-Track Feature*
9-Track Feature 9-Track Feature
Simultaneaus Si mu Itaneous
Read-whi Ie-write Read-whi Ie-write
Note: The 2404 Magnetic Tape Unit and Contral and the 2804 Tape Control can
attach to two channels to overlap a read operation with a write operation.
