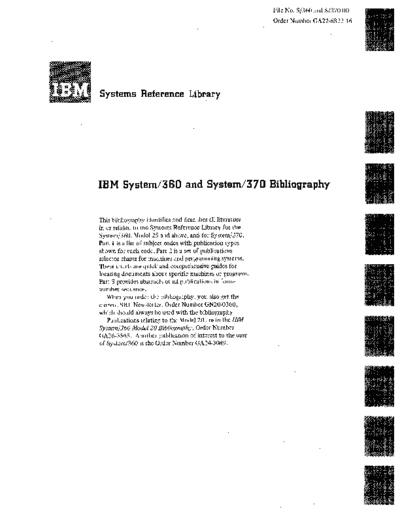

Image preview - the first page of the document
>> Download GA22-6822-16_System_360_System_370_Bibliography_Jul71 documenatation <<
Text preview - extract from the document
File No. S/360 and S/370-00
Order Number GA22-6822-16
Systems Reference Library
IBM System/360 and System/370 Bibliography
This bibliography identifies and describes all literature
in or related to the Systems Reference Library for the
System/360, Model 25 and above, and for System/370.
Part 1 is a list of subject codes with publication types
shown for each code. Part 2 is a set of publications
selector charts for machines and programming systems.
These charts are quick and comprehensive guides for
locating documents about specific machines or programs.
Part 3 provides abstracts of all publications in form-
number sequence.
When you order the bibliography, you also get the
current SRL Newsletter, Order Number GN20-0360,
which should always be used with the bibliography.
Publications relating to the Model 20 are in the IBM
System/360 Model 20 Bibliography, Order Number
GA26-3565. Another publication of interest to the user
of System/360 is the Order Number GA24-3089.
Systems Reference Library
For each major IBM data processing system, a Systems A co:nplete list of publications appears as an accumu-
Reference Library (SRL) contains all basic reference liter- lative index in subject-code sequence in the System/360
ature needed to plan, program, install, and operate the SRL Newsletter, Form GN20-0360.
system. An SRL Bibliography Supplement, Form A24-
3089, covers publications for IBM teleprocessing and Technical Newsletters
data collection equipment. The Bibliography of Data To keep publications current, additions and other modi-
Processing Techniques, Form F20-8172, lists selected fications are distributed as Technical Newsletters (TNLS).
IBM technique-oriented publications that are applicable The TNL masthead carries the file number and form
to many types of systems. number of the publication to which it applies. Also, all
previously issuedTNLS are listed so that you may verify
Bibliography receipt of all changes.
The bibliography is always associated with the System/
360 SRL Newsletter, Form N20-0360. When you order
the bibliography, you receive the SRL Newsletter. The SRL Newsletter
bibliography provides publications selector charts to aid The System/360 SRL Newsletter, Form GN20-0360, is
in quickly finding publications related to specific system issued every four weeks (if changes have occurred during
models, input/output devices, and programming systems. that period) to update the System/360, System/370 Bib-
Additionally, abstracts for all current System/360 SRL liography. All current publications are listed in subject
publications (except those pertaining to the Model 20) code sequence. Each entry shows the form number and
are given in form number sequence. title of the publication as well as the form numbers of
By reviewing the contents of this bibliography, you applicable TNLS. Obsolete publications are listed sepa-
may select items of interest for your installation and be rately, with replacement form numbers (if any) indicated.
aware of other materials that may be useful in the future. Abstracts of new publications are also included.
The SRL Newsletter gives the form number suffix so
File Numbers, Subject Codes that you may verify your publications as current. Some
publications have more than one current edition, since a
The cover page of each SRL manual shows the title, ab-
reprint that incorporates previously distributed replace-
stract, form number, and file number. The file number
ment pages is given a new suffix. All current editions
identifies the system or component discussed and the gen-
and applicable TNLS are listed in the SRL Newsletter.
eral subject area.
For publications associated with one or two Libraries,
SR L Subscription Service
the prefix of the file number is the system type (e .g.,
S360-, 1130/1800-). When the publication is included A direct-mail service is available to IBM system users to
in more than two Libraries, the component types (e.g., supply new publications, major revisions, and Technical
1403-, 1418/1428-) are used, if applicable. In other cases Newsletters for a library that is formed and maintained
"GENL" (general) is used. according to a profIle of the user's interests.
The suffix of the file number is the subject code which To subscribe, see your local IBM representative.
designates a general subject area and the suggested filing
sequence. Code 15, for example, is used for all publica-
IBM Programming Systems
tions related to physical planning specifications; code 33
appears on all publications related to IBM sort and merge SRL Newsletters also show the current status of pro-
programs for the system. See Part 1 for the list of subject gramming systems available for a system. Additional
codes and areas covered. data, including ordering instructions, for these and appli-
In the bibliography, the subject code for any publica- cation programs are in the Catalog of Programs for IBM
tion appears to the upper right of its abstract. System/360, Form GC20-1619.
Sixteenth Edition (March, 1971)
This is a major revision of, and obsoletes, GA22-6822-15 and all asso-
ciated SRL Newsletters. Part 1 now contains a numeric-order list
of Library subject codes with areas of coverage indicated. Part 2
provides publications selector charts to aid the user in finding docu-
mentation for System/360 and Systcm/370 machines and program-
ming systems.
Requests for copies of IBM publications should be made to your
IBM representative or to the IBM branch office serving your
locality.
Part 1-Su bject Codes
00 General Infonnation 26 ALGOL
Bibliographies, System Summaries, Configurators
28 Report Program Generator (RPG)
01 Machine System
29 PL/I
Principles of Operation, Functional
Characteristics, Operating Procedures 30 Input/Output Control System (lOCS), Data
Management
03 Input/Output
Component Descriptions 31 System Service Programs
05 Magnetic Tape Units and Controls 32 Utility Programs
Component Descriptions, Operator Cards
33 Sort/Merge
07 Direct Access Storage Units and Controls
Component Descriptions, Handling Procedures 35 Simulation, Emulation
36 Control Programs
09 Teleprocessing Equipment
Component Descriptions 37 Automatic Testing Programs
10 Auxiliary Equipment 48 Miscellaneous Programs
Component Descriptions
50 Systems Techniques
13 Special and Custom Features 60 Application Programs
Special Feature Descriptions, Custom Feature
Descriptions 61 Type II Programs with Class "A" Maintenance
15 Physical Planning Specifications
65 Program Products - Applications
Installation Manuals-Physical Planning
19 Original Equipment Manufacturers' Infonnation 70 Special Installation Services
20 Programming Systems-General 80 Installation Supplies
21 Assembler Worksheets, Coding Forms, Physical Planning
Templates
22 APL
85 Reference Summaries
23 Basic Formats, Capacities, Characteristics
24 COBOL 90 Education Literature
Course Descriptions
25 FORTRAN
95 Student Texts
Guides, Introductions, Illustrations
99 Other Supplementary Information
KWIC Index, Application Bibliographies
IBM System/360 and System/370 Bibliography 3
Part 2-Publications Selector Charts
These charts are aids for quickly finding order numbers for publications for a particular system. To determine the
System/360 and System/370 publications about a specific models of System/360 and/or System/370 to which an I/O
machine or programming system, except for those per- device currently may attach, see IBM System/360 Input/
taining to the System/360 Model 20. The machine charts Output Configura tor, GA22-6823, and IBM System/370
are arranged according to the numbers of the system Input/Output Configurator, GA22-7002. See IBM System/
models and the I/O devices. The programming charts are 360 Model 20 Bibliography, GA26-3565, for information
arranged to show prerequisite publications and categories of about System/360 Model 20 machines and programming
systems.
Machine System - System/360
.. - - - - - - - - - - - - - - - - . - . -.. ~---.--- - --------~------- -_._- -~------ ---_.._ - - - - -
Publication Order Number
Publication Description ---r---------
Model 25 MOdeI3?_L Model 40 Model 44 Model 50 Model 65 Model 67 Model 75 Model 85 Model 91 Model 195
---- - ------_._- ~-----------
System Summary GA22-6810 (for all modelsl
System References GA22-6821 (for all modelsl
System Physical
GC22-6820 (for all modelsl
Planning Reference
Model Reference GA24-3510 GA24-3231 GA22-6881 GA22-6875 GA22-6898 GA22-6884 GA27-2719 GA22-6889 GA22-6916 GA22-6907 GA22-6943
(CPU)
GA24-3411
(Channell
Model Configurator GA24-3511 GA24-3232 GA22-6813 GA22-6874 GA22-6814 GA22-6887 GA27-2713 GA22-6888 GA22-6920 (in GA22-6944
GA22-69071
Model Operating Procedures GA24-3523 GA24-3373 GA22-6911 GA22-6910 GA22-6908 GA27-2728 GA22-6909 GA22-6927 GA22-6954
Model Physical Planning GX22-6894 GX22-6894 GX22-6894 GX22-6914 GX22-6914 GX226856 GX22-6905 GX22-6856 GX22-6923 GX22-6981
Template GX22-6924
I/O Reference See separate I/O chart.
I/O Configurator GA22-6823 (for all models)
OEMI: Channel-to-Control
GA22-6843 (for all models)
Unit Interface
OEMI: Power Control
GA22-6906 (for all models except 91)
Interface
OEM I: Direct Control
Feature
GA22-6845 (for all models except 44)
Channel-to-Channel
GA22-6892 (for all models)
Adapter Feature
Other Features GA24-3512
GA24-3524
GA24-3255
GA24-3365
I GL22-69021 GA226900
GL22-6903
GA27-2717 GA27-2715
GA27-2716
GA27-2715 GA27-2733
GA24-3526 GC20-1650 GL22-6904 GA27-2717
L -_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ ~_J _ _ _ _-------J_ _ _ _------'- _ _ _ _ _ ~_ ____ ________ __ J.~ ____________ '--___________________________ ~_~ '-----_____---'-_~_ _ ____'___ _ _ _-'
Machine System - System/370
Publication Order Number
Publication Description
Model 145 Model 155 r- Model 165
System Summary GA22-7001 (for all models)
System Reference GA22-7000 (for all models)
System Physical
GA22-7004 (for all models)
Planning Reference
Model Reference GA24-3557 GA22-6942 GA22-6945
(CPU)
GA22-6962
(Channel)
Model Configurator GA22-6957 GA22-6956
Model Operating Procedures GA24-3554
Model Physical Planning
GX22-7005 GX22-7006 GX22-7007
Template
I/O Reference See separate I/O chart.
I/O Configurator GA22-7002 (for all models)
OEMI: Channel-to-Control
GA22-6843 (for all models I
Unit Interface
OEMI: Power Control
GA22-6906 (for all models I
Interface
OEMI: Direct Control
GA22-6845 (for all modelsl
Feature
Other Features GA22-6955
[ GA22-6958
4
'nput /Output
---
Publication Order Number Publication Order Number
I/O Device or Physical I/O Device or Physical
Control Unit Reference OEMI Planning Control Unit Reference OEMI Planning
Manual Manual Template Manual Manual Template
50 Magnetic Data GA27-2725 2314 Direct Access GA26-3599 GX22-6858
Inscriber Modell Storage Facility (GC20-1649)
1017 Paper Tape Reader GA33-4500 GX22-6834 Modell, A Series,
Models 1, 2 and B Series
1018 Paper Tape Punch GA33-4500 GX22-6834 2321 Data Cell Drive GA26-5988 GA26-3674 GX22-6858
Modell Modell (GA26-3633)
(GC20-1649)
1051 Control Unit GX22-6894
2401 Magnetic Tape
Models 1, Nl
1052 Printer-Keyboard
. GX24-3381
Unit Models 1-6,8
2415 Magnetic Tape
GA22-6866
GA22-6866
GA22-6862 GX22-6855
GX22-6855
Models 3,5,8
Unit and Control
1052 Printer-Keyboard GA22-6877 GX22-6894 Models 1-6
Model 7
2420 Magnetic Tape GA32-0007 GX22-6855
1053 Printer GX22-6894 Unit Model 5
Models 1,4
2420 Magnetic Tape Unit GA22-6918 GX22-6855
1231 Optical Mark GA21-9031 GX22-6860 Model 7
Page Reader (GA21-9012)
Model Nl 2495 Tape Cartridge GA27-2726 GX22-6855
Reader Model 1
1255 Magnetic GA24-3542
Character Reader 2501 Card Reader GA21-9026, GX22-6834
Models 1-3 Models B l,B2
1259 Magnetic GA24-3500 GX22-6860 2520 Card Read Punch GA21-9027 GX22-6834
Character Reader Model Bl
Model 2 2520 Card Punch GA21-9027 GX22-6834
1285 Optical Reader GA24-3256 GX22-6860 Models B2,B3
Modell 2540 Card Read Punch GA21-9033 GX22-6834
1287 Optical Reader GA21-9064 GX22-6860 Modell
Models 1-4 2560 Multifunction GA26-5893 GX22-6894
1288 Optical Page GA21-9081 GX22-6860 Card Machine
Reader Model 1 Model Al
1403 Pri nter GA24-3073 GA24-1431, GX22-6834 2671 Paper Tape Reader GA24-3388 GX22-6834
Modell
Models 2,3.7,Nl
1404 Printer
(GA24-3488)
GA24-1446 GA24-3356 GX22-6834 2701 Data Adapter Unit GA22-686~ ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
