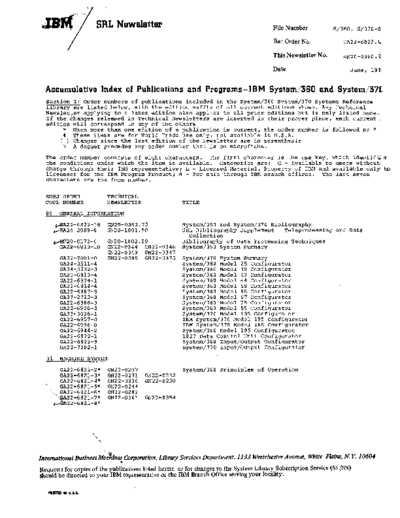

Image preview - the first page of the document
>> Download GN20-0360-75_360-370TNL documenatation <<
Text preview - extract from the document
SRL Newsletter File Number S/360, S/370-G
Re: Order No. GA22-6822.L
This Newsletter No. GN20-0360.1
Date June, 191
Accumulative Index of Publications and Programs-IBM System/360 and System/371
Section 1: Order numbers of publications included in the System/360 System/370 Systems Reference
L~brary are listed below, with the edition suffix of all current editions shown. Any Technical
Newsletter applying to a later edition also applies to all prior editions but is only listed once.
If the changes released in Technical Newsletters are inserted in their proper place, each current
edition will correspond to any of the others
* When more than one edition of a publication is current, the order number is followed by *
# These items are for World Trade use only; not available in U.S.A.
( ) Changes since the last edition of the Newsletter are in parenthesis
t A dagger prec~des any order number that is on microfiche.
The order number consists of eight characters. The first character is the use key, which identifil s
the conditions under which the item is available. Categories are: G - Available to users without
charge through their IBM representative; L - Licensed Material, Property of IBM and available only to
licensees for the IBM Program Product; S - For sale through IBM branch offices. The last seven
characters are the -form number.
SUBJ ORDER TECHNICAL
CODE NUMBER NEWSLETTER TITLE
00 GENERAL INFORMATION
~22-6822-16 GN20-0360.75 System/360 and System/370 Bibliography
vSA24-3089-6 GN20-1001. 50 SRL Bibliography Supplement - Teleprocessing and Data
Collection
~20-8172-6 GN20-1002.29 Bibliography of Data Processing Techniques
GA22-6810-10 GN22-0344 GN22-0346 System/360 System Summary
GN22-0349 GN22-0347
GA22-7001-0 GN22-0385 GN22-0375 System/370 System Summary
GA24-3511~4 System/360 Model 25 Configurator
GA24-3232-3 System/360 Model 30 Configurator
GA22-6813-4 System/360 Model 40 Configurator
GA22-6874-1 System/360 Model 44 Configurator
GA22-6814-4 System/360 Model 50 Configurator
GA22-6887-5 System/360 Model 65 Configurator
GA27-2713-3 System/360 Model 67 Configurator
GA22-6888-3 System/360Mode1 75 Configurator
GA22-6920-3 System/360 Model 85 Configurator
GA33-3006-1 System/370 Model 135 Configurator
GA22-6957-0 IBM System/370 Model 155 Configurator
GA22-6956-0 IBM System/370 Model 165 Configurator
GA22-6944-2 System/360 Model 195 Configurator
GA22-6872-1 1827 Data Control Unit Configurator
GA22-6823-9 System/360 Input/Output Configurator
GA22-7002-1 System/370 Input/Output Configurator
01 MACHINE SYSTEM
GA22-6821-2* GN22-0207 System/360 Principles of Operation
GA22-6821-3* GN22-0231 GN22-0232
GA22-6821-4* GN22-0236 GN22-0250
\ GA22-6821-5* GN22-0244
, GA22-6821-6* GN22-0282
~ "~A22-6821-7* GN22-0361 GN22-0354
t-GA22-6821-8*
International Business Macttn~s Corporation, Library Services Department, 1133 Westchester Avenue, White Plains, N. Y. 10604
~
Requests for copies of the publl6ationslisted herein or for changes t~ the S~stem Library ~ubscription Service (SL/SS)
should be directed to your IBM representative or the IBM Branch OffIce servmg your locahty.
PlIIITU III U.S.A.
~2-7000-l System/370 Principles of Operation
GA24-3572-0 System/360 Model 22 Functional Characteristics
GA24-35l0-l GN24-0425 System/360 Model 25 Functional Characteristics
GA24-3538-0 System/360 Model 25 Channel Characteristics and Functional
Evaluation
GA24-3523-2 System/360 Model 25 Operating Procedures
GA24-323l-l* GN24-0365 System/3 vO ~odel 30 Functional Characteristics
I
GA24-323l-2* GN24-0394
GA24-323l-3* GN24-0405
GA24-323l-4* GN24-0414
GA24-323l-5* GN24-0435 GN24-0431
GA24-323l-6*
GA24-34ll-2 System/360 Model 30 Channel Characteristics and Functional
Evaluation
GA24-3373-l* GN24-0390 System/360 Model 30 Operator's Guide
GA24-3373-2* GN24-0432
GA24-3373-3*
GA22-688l-2* GN22-0297 GN22-0308 System/360 Model 40 Functional Characteristics
GN22-03ll GN22-0335
GN22-0356
GA22-688l-3*
GA22-69ll-l System/360 Model 40 Operating Procedures
GA22-6875-6 System/360 Model 44 Functional Characteristics
GA22-6910-0 System/360 Model 44 Operating Procedures
GA22-6898-1* GN20-0277 GN22-0292 System/360 Model 50 Functional Characteristics
GN22-0299 GN22-0309
GN22-0322
GA22-6898-2* GN22-0330
GA22-6908-2 System/360 Model 50 Operating Procedures
GA22-6884-4 System/360 Model 65 Functional Characteristics
GA27-2728-0* GN27-2921 GN27-2927 System/360 Model 65 Operating Procedures
GA27-2728-1*
GA27':'2719-1 GN27-2940 GN27-2944 System/360 Model 67 Functional Characteristics
GA22-6889-2 GN27-293l System/360 Model 75 Functional Characteristics
GA22-6909-0 System/360 Model 75 Operating Procedures
GA22-6916-1 GN22-0326 GN22-0325 System/360 Model 85 Functional Characteristics
GA2 2 - 6 9' 2 7 -1 System/360 Model 85 Operating Procedures
GA22-6907-2 GN22-0300 System/360 Model 91 Functional Characteristics
GA22-6943-1 System/360 Model 195 Functional Characteristics
GA22-6954-0 System/360 Model 195 Operating Procedures
GA33-3005-1 System/370 Model 135 Functional Characteristics
GA24-3554-0 System/370 Model 145 Operating Procedures
GA24-3557-1 System/370 Model 145 Functional Characteristics
GA22-6942-1 System/370 Model 155 Functional Characteristics
GA22-6962-1 GN22-0376 System/370 Model 155 Channel Characteristics
(GA22-6966-0 System/370 Model 155 Operating Procedures)
GA22-6935-0 System/370 Model 165 Functional Characteristics
(GA22-6969-0 System/370 Model 165 Operating procedures)
03 CARD READERS, PUNCHES
GA21-9025-3 GN21-0082 GN21-0090 1442-Nl and N2 Component Description and Operating
Procedures
GA2l-9026-3 2501 Models Bl and B2 Component Description & Operating
Procedures
GA21-9027-3 GN21-0083 GN2l-0087 2520-Bl, B2 and B3 Component Description and Operating
GN21-0l04 Procedures
GA2l-9033-3 2540 Card Read Punch Component Description and Operating
Procedures
GA21-9124-0 GN2l-0l30 3'505 Card Reader and 3525 Card Punch Subsystem
03 PRINTERS
GA24-3073-6 GN24-0456 1403 Printer Component Description
GA24-l446-1 1404 Printer
GA24-3l20-6 1443 Printer Models 1 to 4, and Nl 1445 Printer Models 1
and Nl -
GA24-3543-0 3211 Printer and 3811 Control Unit compon~ Description
(GA24-3488-4) Form - Design Considerations - System prJnters
2
03 OPTICAL AND MAGNETIC CHARACTER READERS
GA24-l499-6 G~24-0458 GN24-0440 1219 Reader Sorter - 1419 Magnetic Character Reader
GA19-0004-0# GN19-0007 GN19-00l0 1219 Reader Sorter, Model 32 1419 Magnetic Character Reade! I
Model 32
GA2l-903l-0* GN2l-006l GN2l-0068 l23l-Nl Component Description and Operating Procedures
GN2l-0089 GN20-0l05
GA24-3542-l GN24-0464 1255 Magnetic Character Reader Component Description
GA2l-9 03 1..... 1*
GA2l-903l-2*
GA24-3500-2 1259 Magnetic Character Reader Component Description
GA19-0036-l Paper & Print Quality Requirements for IBM 1275 Optical
Reader Sorter
GA19-0034-0 GN19-0063 GN19-0050 1276 Optical Reader Sorter
GA24-3256-5 GN2l-0l02 1285 Optical Reader Component Description and Operating
Procedures
GA2l-9064-5 GN2l-0l22 1287 Optical Reader Component Description and Operating
Procedures
GA2l-908l-3 1288 Optical Page Reader Modell Component Description
GA24-l42l-l* GN24-0253 1412 Magnetic Character Reader Modell
GA24~142l-2* GN24-03l6 GN24-0354
GA24-l42l-3* GN24-0433
GA24-l452-l* GN24-03l0 1418 and 1428 Print Quality Considerations
GA24-l452-2*
GA24-l473-0* GN24-026l 1418 Optical Character Reader 1428 Alphameric Optical Read!,~
GA24-l473-l* GN24-03l2
GA24-l473-2* GN24-04l3
GA24-l473-3*
GA19-0023-2 GN19-0066 IBM 1419 Model 32 Attached to IBM System 360 Models 25, 30~
40, 50, and 65
GA24-355l-0 IBM 2956-5 Component Description
GA2l-9050-3 GN2l-0ll0 IBM 2956 Optical Mark/Hole Reader Models 2 & 3 Component
Description and Operating Procedures
03 OTHER (I/O)
GA22-6877-3* GN22-0268 System/360 Component Descriptions and Operating Procedures
1052 Printer - Keyboard Model 7 with 2150 Console
GA22-6877-4* GN22-0305
GA22-6868-2 GN26-0l82 GN26-02l5 1827 Data Control Unit with System/360 Component Descriptit 1.1
GA27-270l-2 GN27-2933 2250 Display Unit Modell, System/360 Component Descriptiol
GA27-2702-0 System/360 Component Description 2250 Display Unit Model 2 . -
2840 Display Control Modell
GA27-272l-0 GN27-2934 System/360 Component Description IBM 2250 Display Unit Mod~l
3 IBM 2840 Display Control Model 2
GA27-272l-l*
GC20-l688-0* Operator Manual 2260 Display Station 2848 Display Control
1053 Printer
GC20-l688-l* GN20-l902
GA27-2700-4 GN27-3047 System/360 Component 2260 Display Station - 2848 Display
Control
GA27-273l-2 GN27-2945 System/360 Component Description 2265 Display Station 2845
Display Control
GA27-2730-0 2285 Display Copier - Component Description
GA24-3388-4 2671 Paper Tape Reader 2822 Paper Tape Reader Control
GA24-33l2-5* GN24-0409 GN24-04l9 2821 Control Unit
GA24-33l2-7* GN24-0455 GN24-0453
GA33-4500-2 2826 Paper Tape Control Unit 1017 Paper Tape Reader 1018
Paper Tape Punch - System/360 Component Descriptions
GA24-3552-l 32l0-Console Printer Keyboard Model 2 Component Descriptior
GA24-3550-l 3215 Printer Keyboard Component Description
GA36-0002-0 4481 Film Reader/Recorder
GA36-0003-0 4481 Film Reader Programmers Guide
05 MAGNETIC TAPE UNITS AND CONTROLS
GA22-6866-5 GN32-0008 System/360 Component Description 2400-Series Magnetic Tape
units 2803/2804 Tape Controls and 2816 Switching Unit 1
Model 1
GA32-000l-0 2420 Model 7 Tape Drive Operators Guide Card
3
GA32-0006-3 Tape Specifications for IBM One-Half Inch Tape Drives at:
556 and 800 and 3200 FCI
GA32-0007-2 2420 ModelS Magnetic Tape unit Component Description
GA27-2726-l 2495 Tape Cartridge Reader System/360 Component Description
GA32-0020-0 3803/3420 Magnetic Tape Subsystems Component Description
GA22-6828-l 7340 Hypertape Drive Model 3 with System/360
07 DIRECT ACCESS STORAGE UNITS AND CONTROLS
GA26-3633-l
GA26-5756-6
GA22-6895-3
Data Cell Handling Guide
IBM Disk Pack and Cartridge Handling Procedures
System/360 Component Descriptions - 2301 Drum Storage -
I
2820 Storage Control
GA26-3599-3* GN26-0244 GN26-0246 System/360 Component Description - 2314 Direct Access
GN26-0248 Storage Facility and 2844 Auxiliary Storage Control
GA26-3599-4* GN26-0258
GA26-3599-5* GN26-0265
GA26-l606-l IBM 2319 Component Summary
GA26-1589-0 System/360 Component Description - 2835 Storage Control and
2305 Fixed Head Storage Module.
GA26-5988-4* GN26-0202 System/360 Component Descriptions - 2841 Storage Control
Unit - 2302 Disk Storage, Models 3 and 4 - 2311 Disk
Storage Drive Modell, 2321 Data Cell Drive - 2303 Drum
Storage
GA26-5988-5* GN26-02l0 GN26-0229
GA26-5988-7*
GA26-l592-0 Component Summary - 3830 Storage Control - 3330 Disk Storage.
09 TELEPROCESSING EQUIPMENT
~22-6864-2* GN27-3023 GN27-3025 2701 Data Adapter Unit Component Description
GN27-3030 GN27-3033
GN27-3037
GA22-6864-3* GN27-3042
~22-6864-4*
yGA22-6846-3 GN27-3054 System/360 Component Description - 2702 Transmission
Control
0'A27-2703-l* GN27-3027 GN27-3029 System/360 Component Description - 2703 Transmission
GN27-3038 GN27-3043 Control
GN27-3055
GA27-2703-2*
GA27-2704-l System/360 Component Des~ription - 2711 Line Adapter Unit
GA24-3426-0 2712 Remote Multiplexor
GA27-3029-l 2721 Portable Audio Terminal - Component Description
GA27-3039-0 2721 Portable Audio Terminal Operator's Handbook
GA27-300l-0* 2740/2741 Communications Terminal - Operator's Guide
GA27-300l-l*
v427-3005-2 GN27-3039 GN27-3045 2780 Data Transmission Terminal - Component Description
GA27-3035-l 2790 Data Communications System Operators Guide
(GL27-3020-2 (GN27-3076) 2972 M8-ll General Banking Terminal System Component
Description)
GA27-3043-0 IBM 3735 Programmable Buffered Terminal Concept &
Application
GA19-00l0-3# GN27-3057 IBM 3944 Dial Terminal Unit For World Trade Use Only
GA36-000l-0 IBM 4872 MODEM Model 1
GA27-27l0-l 7772 Audio Response Vocabulary
GA27-27ll-0 GN27-2906 GN27-3020 System/360 Component Description - 7772 Audio Response Unit
10 AUXILIARY EQUIPMENT
GA22-695l-0 GN22-0366 IBM 50 Magnetic Data Inscriber Operators Guide
GA27-2725-2 GN22-033l GN22-0339 System/360 Component Description 50 Magnetic Data
GN22-0365 Inscriber
GN22-0340 GN22-034l
13 SPECIAL AND CUSTOM FEATURES
GA22-6892-0* GN22-0225 System/360 Special Feature Channel-to-Channel Adapter
GA22-6892-l*
GL22-6960-0 GN22-0374 System/360 Custom Feature - Reservation System
4
GA24-35l2-2 GN24-0452 System/360 Model 25 1401/1460 and 1440 Compatibility
Features
GA24-3524-2 GN24-0444 System/360 Model 25 Model 20 Mode Feature
GA24-3526-2 System/360 Model 25 Integrated Communications Attachment
Feature
GA24-3547-0 System/360 Model 25, High Speed Channel - 2314 Attachment
Feature RPQ69109
GA19-00l9-0# System/360 Model 30 - 1401/1440/1460 Compatibility Feature
Inverted Print Edit ansSterling Sub-Feature
GA24-3255-7 GN24-0437 IBM System/360 Model 30 1401/1440/1460 Compatibility
Feature
GA24-3365-3 System/360 Model 30 - 1620 Compatibility Feature
GC20-l650-l GN20-l076 System/360 Model 30 1401 Compatibility Mode
GL22-6902-0 System/360 Model 40 Sum of Products Instruction - RPQ
W1256l Special Systems Feature
GL22-6903-0 System/360 Model 40 Halfword Translate Instruction - RPQ
W13462 Special Systems Feature
GL22-6904-0 System/360 Model 40 Table Address Chaining - RPQ W13518
Special Systems Feature.
GA22-6900-2 GN22-030l System/360 Model 44 Data Acquisition Special Features
GA27-27l7-0 System/360 Models 50 and 65 Special Feature Description -
7074 Compatibility Feature
GA27-27l6-0 GN27-29l2 system/360 Model 65 Special Feature Description 7080
Compatibility Feature
GA27-27l5-2 System/360 Model 65 and 67 - Special Feature Description
709/7090/7094 II Compatibility Feature
GA27-2733-0 GN27-2936 GN27-2938 System/360 Model 85, 360 Special Feature Description
GN27-294l 709/7090/7094/7094 II, Compatibility Feature
GA2l-9070-0 1050 Special Feature Description ASCII ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
