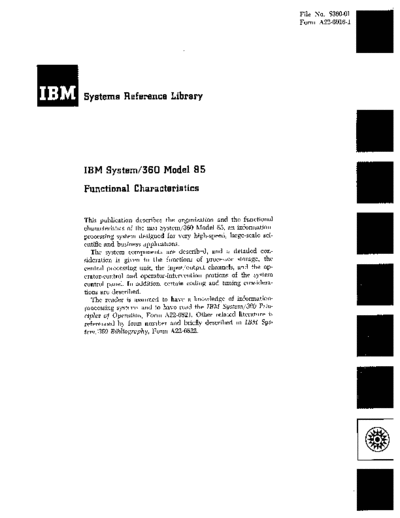

Image preview - the first page of the document
A22-6916-1_360-85_funcChar_Jun68


>> Download A22-6916-1_360-85_funcChar_Jun68 documenatation <<

Text preview - extract from the document
                                                                   File No. S360-01
                                                                   Form A22-6916-1




Systems Reference Library




IBM System/360 Model 85
Functional Characteristics


This publication describes the organization and the functional
characteristics of the IB:M System/360 Model 85, an information-
processing system designed for very high-speed, large-scale sci-
entific and business applications.
   The system components are describ~d, and a detailed con-
sideration is given to the functions of processor storage, the
central processing unit, the input/output channels, and the op-
erator-control and operator-intervention portions of the system
control panel. In addition, certain coding and timing considera-
tions are described.
   The reader is assumed to have a knowledge of information-
processing systems and to have read the IBAf System/360 Prin-
ciples of Operation, Form A22-6821. Other related literature is
referenced by form number and briefly described in IBAf Sys-
tem/360 Bibliography, Form A22-6822.
                                                                                  I




SECOND EDITION (June, 1968)
This is a major revision of, and obsoletes, A22-6916-0. The section "System
Controls" has been updated to reflect changes in the system control panel.
The section "Instruction Times" has been updated to include the high-speed
multiply feature times and to reflect changes in the timing formulas. Other
changes to the text are indicated by a vertical line to the left of the change;
changed or added illustrations are denoted by the symbol
