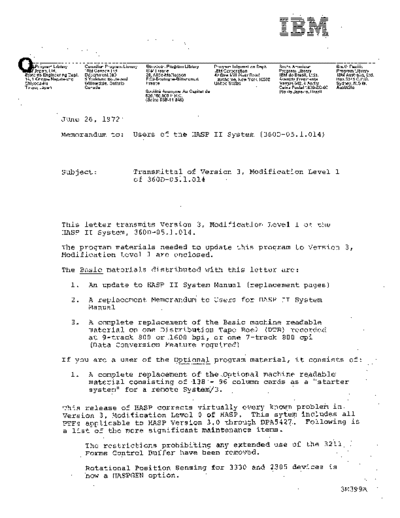

Image preview - the first page of the document
>> Download HASP_II_Manual_Jun72 documenatation <<
Text preview - extract from the document
J> rog ram, Library Canadian Program Library European Program Library Program Information Dept. South American South Pacific
Japan, Ltd. IBM Canada Ltd. IBM France IBM Corporation Program Library Program Library
Systems Engineering Dept. Department 960 23, Allee-Maillasson 40 Saw Mill River Road IBM do Brasil, Ltda. IBM Austraiia, Ltd.
14,1 Choma Nagata-cho 5 Yorkland Boulevard F.92-Bouiogne-Billancourt Hawthorne, New York 10532 Avenida Presidente Box 3318 G.P.D.
Chiyoda-ku Willowdale, Ontario France United States Vargas 642, 4 Andar Sydney, N.S.W.
Tokyo, Japan Canada Caixa Postal 1830-ZC-00 Australia
Societe Anonyme Au Capital de Rio de Janeiro, Brazil
620.256.000 F-R.C.
(Seine 55B-11 846)
June 26, 1972
Memorandum to: Users of the HASP II System (360D-05.1.0l4)
Subject: Transmittal of Version 3, Modification Levell
of 360D-05.1.014
This letter transmits Version 3, Modification Level 1 of the
HASP II System, 360D-OS.1.014.
The program materials needed to update this program to Version 3,
Modification Level 1 are enclosed.
The Basic materials distributed with this letter are:
1. An update to HASP II System Manual (replacement pages)
2. A replacement Memorandum to Users for HASP II System
Manual
3. A complete replacement of the Basic machine readable
material on one Distribution Tape Reel (DTR) recorded
at 9-track 800 or 1600 bpi, or one 7-track 800 cpi
(Data Conversion Feature required)
If you are a user of the Optional program material, it consists of:
1. A complete replacement of' the Optional machine readable
material consisting of 138 - 96. column cards as a "starter
system" for a remote System!3.
This release of HASP corrects virtually every known problem in
Version 3, Modification Level 0 of HASP. This sytem includes all
PTFs applicable to HASP Version 3.0 through DPA5427. Following is
a list of the more significant maintenance items.
The restrictions prohibiting any extended use of the 3211
Forms Control Buffer have been removed.
Rotational Position Sensing for 3330 and 2305 devices is
now a HASPGEN option.
3M399A
Previously announced support for the 3505 Card Reader and
the 3525 Card Punch is included.
The restriction prohibiting operator control of HASP job
flow based on OS jobnames has been removed.
Multi-tasking jobs are no longer excluded from the execution
dynamic priority group.
The restriction prohibiting restart of the HASP execution
phase of a job has been removed.
The operator is no longer prohibited from changing a printer's
FCB or DCS when the printer is stopped for forms mounting.
For as controlled console support, the operator's replies to
WTORs are no longer omitted from the HASP System Log.
Optionally, the user can now define names other than SPOOLn
for HASP spooling volumes.
HASPGEN efficiently accepts both the IEBUPDTE and IEBUPDAT
formats of modification cards and sequence checks them.
HASP command authority has been extended to local input devices
and is controlled by the central operator.
An optional backspace character can now be defined to support
as controlled consoles with no backspace key.
HASP Remote Job Entry maintenance items:
The 3780 Data Communications Terminal is now supported by
HASP.
The Space Compression/Expansion feature of 2770 and 3780
terminals is supported.
Any of the three optional buffer sizes for 2770 terminals may
now be specified. Current 2770 users must respecify RMTnn
parameters prior to HASPGEN, according~the new definitions
on page 388.
HASP RMTGEN will optionally punch an 80-column card deck for
System/3 remote terminals without 5424 card readers.
This modification is supported on current as releases.
This memorandum should be added to your program package for future
reference.
The HASP II System has Programming Service Classification A.
Any discrepancy between the material received and the material
listed above, or any errors in reproduction, should be reported
to the Manager of the Program Library providing your programming
systems.
cc: IBM Systems Engineering Managers (no enclosures)
IBM Field Engineering Managers (no encloures)
Program Information Department
I
.
Q p~~g~~m
a Library
M Japan, Ltd.
Systems Engineering Dept.
Canadian Program Library
IBM Canada Ltd.
Department 960
European Program Library
IBM France
23, Allee-Maillasson
Program Information Dept.
IBM Corporation
40 Saw Mill River Road
South American
Program Library
IBM do Brasil, Ltda.
South Pacific
Program Library
IBM Australia, Ltd.
14, 1 Chome Nagata-cho 5 Yorkland Boulevard F.92-Boulogne-Billancourt Hawthorne, New York 10532 Avenida Presidente Box 3318 G.P.O.
Chiyoda-ku Willowdale, Ontario France United States Vargas 642, 4 Andar Sydney, N.S.W.
Tokyo, Japan Canada Caixa Postal 1830-ZC-00 Australia
Societe Anonyme Au Capital de Rio de Janeiro, Brazil
620.256.000 F-R.C.
(Seine 55B-11 846)
June 26, 1972
Memorandum to: Recipients of HASP II (360D-05. 1.014)
Subject Replacement Memorandum for HASP II System
Manual
The attached memorandum replaces the memorandum currently
attached to the HASP II System Manual.
Attachment
Program Information Department
3H399C
.1I;p~ogr~m Library Canadian Program Library European Program Library Program Information Dept. South American South Pacific
'-1M J~pan, Ltd. Dept.
Systems Engineering
IBM Canada Ltd.
Department 960
IBM France
23, Allee-Maillasson
IBM Corporation
40 Saw Mill River Road
Program Library
IBM do Brasil, Ltda.
Program Library
IBM Australia, Ltd.
14, 1 Chome Nagata-cho 5 Yorkland Boulevard F.92-Boulogne-Billancourt Hawthorne, New York 10532 Avenida Presidente Box 3318 G.P.O.
Chiyoda-ku Willowdale, Ontario France United States Vargas 642, 4 Andar Sydney, N.S.w.
Tokyo,Japan Canada Caixa Postal 1830-ZC-00 Australia
Societe Anonyme Au Capital de Rio de Janeiro, Brazil
620.256.000 F-R.C.
(Seine 55B-11 846)
