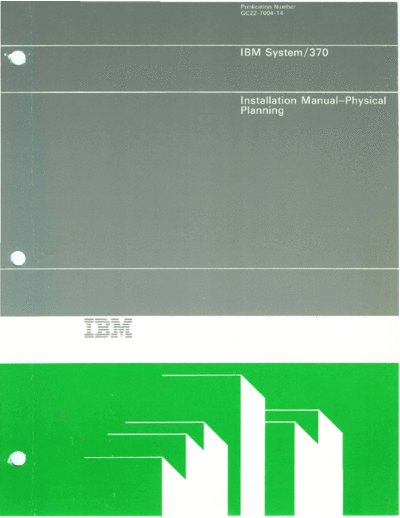

Image preview - the first page of the document
GC22-7004-14_370_Installation_Manual_Physical_Planning_Jun85


>> Download GC22-7004-14_370_Installation_Manual_Physical_Planning_Jun85 documenatation <<

Text preview - extract from the document
---
 -
- - - ---
----
 --   --
 -
- -_ . -
--
-   -----
                     IBM System/370



                     Installation Manual-Physical
                     Planning




Publication Number   File Number
GC22-7004-14         S370-15
Federal Communications                    Commission           (FCC)
Statement


Warning: This equipment generates, uses, and can radiate                        For machines manufactured before January 1, 1981, the
radio frequency energy and if not installed and used in                        FCC does not require compliance. To detennine the exact
accordance with the instructions manual, may cause inter-                      category of your machine, refer to the label attached to the
ference to radio communications. It has been tested and                        machine.
found to comply with the limits for a Class A computing
device pursuant to Subpart J of Part 15 of FCC Rules,                            CAUTION
which are designed to provide reasonable protection against                      The power attachment cable plug (when supplied) is
such interference when operated in a commercial environ-                         approved for use with the particular machines and meets
ment. Operation of this equipment in a residential area is                       the relevant testing laboratory or country/test-house
likely to cause interference in which case the user at his                       standards. For the user's safety, the plug must be con-
own expense will be required to take whatever measures                           nected to a properly wired and grounded receptacle.
may be required to correct the interference.                                     An improperly wired receptacle could place a hazard-
                                                                                 ous voltage on accessible metal parts of the machine.
The preceding statement applies to equipment covered by                          The customer is responsible for receptacle wiring.
this Installation Manual-Physical Planning (IM-PP).
This equipment has been tested and found to comply with
the limits for a Class A computing device as described.




Fifteenth Edition (June 1985)

This major revision obsoletes GC22-7004-13 and the following Technical News-
letters:

GN22-2097
GN22-2098
GN22-2099

This edition deletes Section 1 of this manual and adds miscellaneous information
and changes. The deleted material from this manual is now in IBM General
Information Manual Installation Manual-Physical Planning, GC22-7072. Changes
or additions to the text or to an illustration are indicated by a vertical line to the
left of the change.

Changes are made periodically to the information herein; before using this pub-
lication in connection with the installation and operation of IBM equipment,
refer to the latest IBM System/370 and 4300 Processors Bibliography,
GC20-0001, for the editions that are applicable and current.

References in this publication to IBM products, programs, or services do not
imply that IBM intends to make these available in all countries in which IBM
operates. Any reference to an IBM program product in this publication is not
intended to state or imply that only IBM's program product may be used. Any
functionally equivalent program may be used instead.

Publications are not stocked at the address given below. Requests for IBM publi-
cations should be made to your IBM representative or to the IBM branch office
serving your locality.

A form for readers' comments is provided at the back of this pUblication. If the
form has been removed, comments may be addressed to IBM Corporation,
Product Publications, Department B96, PO Box 390, Poughkeepsie, NY, U.S.A.
12602. IBM may use or distribute whatever information you supply in any way
it believes appropriate without incurring any obiigation to you.
