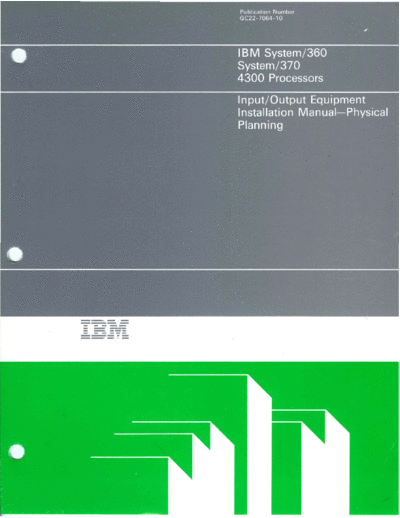

Image preview - the first page of the document
>> Download GC22-7064-10_IO_Equipment_Installation_Physical_Planning_Jul86 documenatation <<
Text preview - extract from the document
--- -
- ---
- -
- --
- - ---
IBM System/360
System/370
4300 Processors
Input/Output Equipment
Installation Manual-Physical
Planning
Publication Number File Number
GC22-7064-10 5360/5370/4300-15
Federal Communications Commission (FCC)
Statement
Warning: This equipment generates, uses, and can radiate For machines manufactured before January 1, 1981, the
radio frequency energy and if not installed and used in FCC does not require compliance. To determine the exact
accordance with the instructions manual, may cause inter- category of your machine, refer to the label attached to the
ference to radio communications. It has been tested and machine.
found to comply with the limits for a Class A computing
device pursuant to Subpart J of Part 15 of FCC Rules, which CAUTION
are designed to provide reasonable protection against such The power attachment cable plug (when supplied) is
interference when operated in a commercial environment. approved for use with the particular machines and meets the
Operation of this equipment in a residential area is likely to relevant testing laboratory or countryftest-house standards.
cause interference in which case the user at his own expense For the user's safety, the plug must be connected to a
will be required to take whatever measures may be required properly wired and grounded receptacle. An improperly
to correct the interference. wired receptacle could place a hazardous voltage on acces-
sible metal parts of the machine. The customer is re-
The preceding statement applies to equipment covered by sponsible for receptacle wiring.
this Installation Manual-Physical Planning (IM-PP). This
equipment has been tested and found to comply with the
limits for a Class A computing device as described.
Eleventh Edition (July 1986)
This major revision obsoletes GC22-7064-8 and GC22-7064-9 and Technical Newsletters
GN22-2319, GN22-2320, GN22-2321, GN22-2323, GN22-2325, GN22-2326,
GN22-2328, GN22-2330, GN22-2331, and GN22-2333.
Changes or additions to the text and illustrations are indicated by a vertical line to the
left of the change.
Changes are made periodically to the information herein; before using this pUblication
in connection with the operation of IBM equipment, refer to the latest IBM System/360
Bibliography, GC20-0360, and IBM System/370, 30xx, and 4300 Processors
Bibliography, GC20-0001, for the editions that are applicable and current.
References in this publication to IBM products, programs, or services do not imply
that IBM intends to make these available in all countries in which IBM operates. Any
reference to an IBM program product in this pUbication is not intended to state or imply
that only IBM's program product may be used. Any functionally equivalent program
may be used instead.
Publications are not stocked at the address given below. Requests for copies of IBM
publications should be made to your IBM representative or to the IBM branch office
serving your locality.
A form for readers' comments is provided at the back of this pUblication. If the form
has been removed, address comments to IBM Corporation, Product. Publications,
Department B96, P.O. Box 390, Poughkeepsie, NY, USA 12602. IBM may use or
distribute whatever information you supply in any way it believes appropriate without
incurring any obligation to you.
