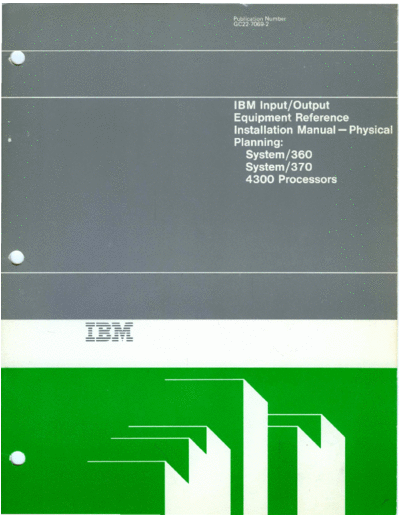

Image preview - the first page of the document
GC22-7069-2_Input_Output_Equipment_Physical_Planning_Aug83


>> Download GC22-7069-2_Input_Output_Equipment_Physical_Planning_Aug83 documenatation <<

Text preview - extract from the document
---- -
- -- ---
  - -
- --
  - -
  - - ---
                           IBM Input/Output
                           Equipment Reference
                           Installation Manual- Physical
                           Planning:
                             System/360
                             System/370
                             4300 Processors




I
\.,




      Publication Number   File Number
      GC22-7069-2          S360/S370/4300-15
Federal Communications                    Commission           (FCC)
Statement


Warning: This equipment generates, uses, and can radiate                      CAUTION
radio frequency energy and if not installed and used in                       The power attachment cable plug (when supplied) is
accordance with the instructions manual, may cause inter-                     approved for use with the particular machines and meets
ference to radio communications. It has been tested and                       the relevant testing laboratory or country/test-house
found to comply with the limits for a Class A computing                       standards.    For the user's safety, the plug must be
device pursuant to Subpart J of Part 15 of FCC Rules,                         connected to a properly wired and grounded receptacle.
which are designed to provide reasonable protection against                   An improperly wired receptacle could place a hazardous
such interference when operated in a commercial environ-                      voltage on accessible metal parts of the machine. The
ment. Operation of this equipment in a residential area is                    customer is responsible for receptacle wiring.
likely to cause interference in which case the user at his
own expense will be required to take whatever measures
may be required to correct the interference.

The preceding statement applies to equipment covered by
this Installation Manual-Physical Planning (IM-PP).
This equipment has been tested and found to comply with
the limits for a Class A computing device as described.
  For machines manufactured before January 1, 1981, the
FCC does not require compliance. To determine the exact
category of your machine, refer to the label attached to the
machine.


                                                                                                                                        /




Third Edition (August 1983)

This major revision obsoletes GC22-7069-0, GC22-7069-1, and Technical
Newsletters GN22-2180 and GN22-2191. Information to support cable changes
to the 1255 and 1419 Magnetic Character Readers has been added. Changes to
the text and illustrations are indicated by a vertical line to the left of the change.

Changes are made periodically to the information herein; before using this pub-
lication in connection with the installation and operation of IBM equipment, refer
to the latest IBM System/360 Bibliography, GC20-0360, and IBM System/370
and 4300 Processors Bibliography, GC20-000 1, for the editions that are applicable
and current.

References in this publication to IBM products, programs, or services do not
imply that IBM intends to make these available in all countries in which IBM
operates. Any reference to an IBM program product in this publication is not
intended to state or imply that only IBM's program product may be used. Any
functionally equivalent program may be used instead.

Publications are not stocked at the address ,below. Requests for IBM publications
should be made to your IBM representative or to the IBM branch office serving
your locality.

A form for readers' comments is provided at the back of this publication. If the
form has been removed, comments may be addressed to IBM Corporation, Product
Publications, Department B98, PO Box 390, Poughkeepsie, NY, U.S.A. 12602.
IBM may use or distribute whatever information you supply in any way it believes
appropriate without incurring any obligation to you.
