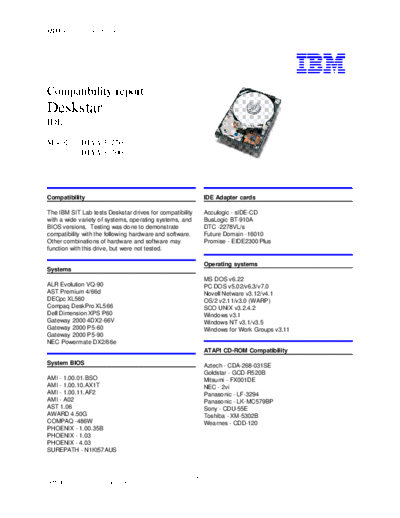

Image preview - the first page of the document
Deskstar (DJAA) Compatibility Summary v1.0 - Abridged


>> Download Deskstar (DJAA) Compatibility Summary v1.0 - Abridged documenatation <<

Text preview - extract from the document
IBM storage products




Compatibility report
Deskstar
IDE

Models:        DJAA-31270
               DJAA-31700




Compatibility                                                 IDE Adapter cards

The IBM SIT Lab tests Deskstar drives for compatibility       Acculogic - sIDE-CD
with a wide variety of systems, operating systems, and        BusLogic BT-910A
BIOS versions. Testing was done to demonstrate                DTC -2278VL/s
compatibility with the following hardware and software.       Future Domain -16010
Other combinations of hardware and software may               Promise - EIDE2300 Plus
function with this drive, but were not tested.

                                                              Operating systems
Systems
                                                              MS DOS v6.22
ALR Evolution VQ-90                                           PC DOS v5.02/v6.3/v7.0
AST Premium 4/66d                                             Novell Netware v3.12/v4.1
DECpc XL560                                                   OS/2 v2.11/v3.0 (WARP)
Compaq DeskPro XL566                                          SCO UNIX v3.2.4.2
Dell Dimension XPS P60                                        Windows v3.1
Gateway 2000 4DX2-66V                                         Windows NT v3.1/v3.5
Gateway 2000 P5-60                                            Windows for Work Groups v3.11
Gateway 2000 P5-90
NEC Powermate DX2/66e
                                                              ATAPI CD-ROM Compatibility

System BIOS                                                   Aztech - CDA-268-031SE
                                                              Goldstar - GCD-R520B
AMI - 1.00.01.BSO                                             Mitsumi - FX001DE
AMI - 1.00.10.AX1T                                            NEC - 2vi
AMI - 1.00.11.AF2                                             Panasonic - LF-3294
AMI - A02                                                     Panasonic - LK-MC579BP
AST 1.06                                                      Sony - CDU-55E
AWARD 4.50G                                                   Toshiba - XM-5302B
COMPAQ -486W                                                  Wearnes - CDD-120
PHOENIX - 1.00.35B
PHOENIX - 1.03
PHOENIX - 4.03
SUREPATH - N1Kt57AUS



                                                          Page 1
IBM Hard Disk Drive Technical Support Center                                                  version 1.0
