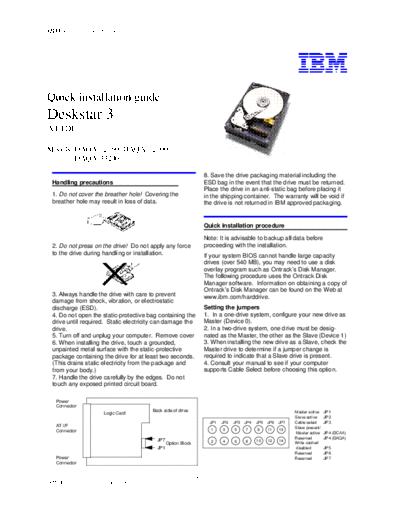

Image preview - the first page of the document
Deskstar 3 Quick Installation Guide v3.0


>> Download Deskstar 3 Quick Installation Guide v3.0 documenatation <<

Text preview - extract from the document
IBM storage products




Quick installation guide
Deskstar 3
AT/IDE

Models: DAQA-32160, DAQA-32700,
        DAQA-33240

                                                                          8. Save the drive packaging material including the
  Handling precautions                                                    ESD bag in the event that the drive must be returned.
                                                                          Place the drive in an anti-static bag before placing it
  1. Do not cover the breather hole! Covering the                         in the shipping container. The warranty will be void if
  breather hole may result in loss of data.                               the drive is not returned in IBM approved packaging.


                                                                          Quick installation procedure

                                                                          Note: It is advisable to backup all data before
  2. Do not press on the drive! Do not apply any force                    proceeding with the installation.
  to the drive during handling or installation.                           If your system BIOS cannot handle large capacity
                                                                          drives (over 540 MB), you may need to use a disk
                                                                          overlay program such as Ontrack's Disk Manager.
                                                                          The following procedure uses the Ontrack Disk
                                                                          Manager software. Information on obtaining a copy of
                                                                          Ontrack's Disk Manager can be found on the Web at
  3. Always handle the drive with care to prevent                         www.ibm.com/harddrive.
  damage from shock, vibration, or electrostatic
  discharge (ESD).                                                        Setting the jumpers
  4. Do not open the static-protective bag containing the                 1. In a one-drive system, configure your new drive as
  drive until required. Static electricity can damage the                 Master (Device 0).
  drive.                                                                  2. In a two-drive system, one drive must be desig-
  5. Turn off and unplug your computer. Remove cover                      nated as the Master, the other as the Slave (Device 1)
  6. When installing the drive, touch a grounded,                         3. When installing the new drive as a Slave, check the
  unpainted metal surface with the static-protective                      Master drive to determine if a jumper change is
  package containing the drive for at least two seconds.                  required to indicate that a Slave drive is present.
  (This drains static electricity from the package and                    4. Consult your manual to see if your computer
  from your body.)                                                        supports Cable Select before choosing this option.
  7. Handle the drive carefully by the edges. Do not
  touch any exposed printed circuit board.

   Power
   Connector
                                               Back side of drive                                                        Master active    JP1
                         Logic Card
                                                                                                                         Slave active     JP2
                                                                               JP1   JP2   JP3   JP4   JP5   JP6   JP7   Cable select     JP3
   AT I/F                                                                                                                Slave present/
   Connector                                                                   1     3     5     7     9     11    13
                                                                                                                         Master active    JP4 (DCAA)
                                                                                                                         Reserved         JP4 (DAQA)
                                                 JP7                           2     4     6     8     10    12    14
                                                       Option Block                                                      Write cached
                                                 JP1                                                                     disabled         JP5
                                                                                                                         Reserved         JP6
   Power                                                                                                                 Reserved         JP7
   Connector


                                                                      Page 1
IBM Hard Disk Drive Technical Support Center                                                                                                version 3.0
IBM storage products


  Attaching the drive                                                  return to your original configuration and contact
  1. Turn off the computer, unplug the power cord, and                 technical support.
  open the case.
  2. Match pin 1 of the 40-pin cable to pin 1 of the drive
  interface connector. Pin 1 is usually denoted by a
  stripe along the edge of the cable.
  3. Attach a power plug to either the 3- or 4-pin power
  connector.
