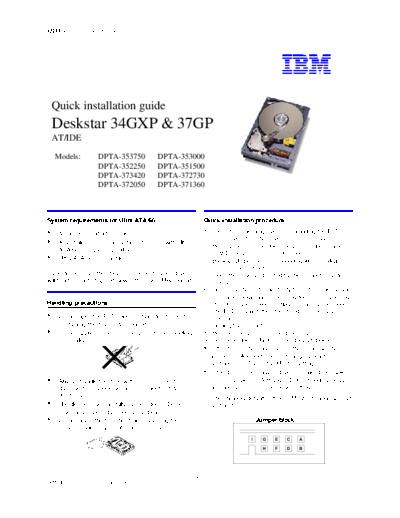

Image preview - the first page of the document



>> Download Deskstar 34GXP & 37GP Quick Installation Guide v1.0 - English documenatation <<

Text preview - extract from the document

IBM storage products




    Quick installation guide
    Deskstar 34GXP & 37GP
    AT/IDE

    Models:           DPTA-353750              DPTA-353000
                      DPTA-352250              DPTA-351500
                      DPTA-373420              DPTA-372730
                      DPTA-372050              DPTA-371360



System requirements for Ultra ATA/66                          Quick installation procedure

Y    40 pin, 80 conductor cable                               1. Save the packaging materials including the ESD bag
                                                                  in the event that the drive must be returned.
Y    A contoller card or motherboard chipset with Ultra
                                                              2. Record the serial number and part number of your
     ATA/66 or higher capability
                                                                  IBM Deskstar for future reference.
Y    Ultra ATA/66 compatible BIOS                             3. Backup all data before proceeding with installation.
                                                              4. Turn off the computer.
If you do not have the above components, your drive           5. Open the case as directed by the computer system
will function, but at speeds lower than 66.6 MB/second.           manual.
                                                              6. Discharge the static electricity from the package and
                                                                  from your body. With one hand touch an unpainted
Handling precautions                                              metal surface on your computer chassis, then touch
                                                                  the ESD bag with the other hand for at least 2
Y    Do not open the ESD (electro-static discharge) bag           seconds.
     containing the drive until required.                     7. Unplug the computer.
Y    Do not apply pressure on the drive during handling       8. Remove the drive from the ESD bag.
     or installation.                                         9. Set the jumpers. Refer to the diagram below
