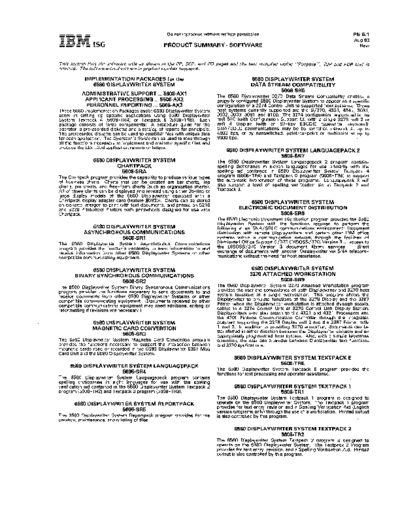

Image preview - the first page of the document
>> Download 03_Product_Summary_Software documenatation <<
Text preview - extract from the document
--- - PSS.1
- ----
- - ---
-----
- - --
Do not reproduce without written permission
Aug 83
..:. ..:.: == ';' == ISG PRODUCT SUMMARY - SOFTWARE New
This section lists the software title as shown in the PP, SCP, and PO pages and the text included under "Purpose". IVP and FDP text is
omitted. The software products are in product number sequence.
IMPLEMENTATION PACKAGES for the 65S0 DISPLAYWRITER SYSTEM
65S0 DISPLAYWRITER SYSTEM DATA STREAM COMPATIBILITY
5608-SR6
ADMINISTRATIVE SUPPORT ... 560S-AX1 The 6580 Displaywriter 3270 Data Stream Compatibility enables a
APPLICANT PROCESSING ." 560S-AX2 properly configured 6580 Displaywriter System to appear as a specific
PERSONNEL REPORTING ... 560S-AX3 configuration of a 3274 Control Unit to supported host systems. Those
These 6580 Implementation Packages assist 6580 Displaywriter System host systems currently supported are the S/370, 4331, 4341, 3031,
users in setting up specific applications using 6580 Displaywriter 3032, 3033, 3081, and 8100. The 3274 configuration supported is the
System Textpack 4 (5608-TR4) or Textpack 6 (5608-TR6). Each mdl 51 C (with Configuration Support C), with a single 3278 mdl 2 or
package consists of three components: A procedure guide for the mdl 4 Display (with an 87-key EBCDIC typewriter keyboard).
operator, a prerecorded diskette and a catalog of reports for principals. SNA/SDLC communications may be by switched network at up to
The prerecorded diskette can be used to establish files with unique data 4800 bps, or by nonswitched, point-to-point or multipoint at up to
for each ap~lication. The Operator's Guide can be used to step through 9600 bps.
all the functions necessary to implement and maintain specific files and
produce the identified application reports or letters.
65S0 DISPLAYWRITER SYSTEM LANGUAGEPACK 2
560S-SR7
65S0 DISPLAYWRITER SYSTEM The 6580 Displaywriter System Languagepack 2 program contains
CHARTPACK spelling dictionaries in eleven languages for use primarily with the
560S-SRA spelling aid contained in 6580 Displaywriter System Textpack 4
The Ch,artpack program provides the capability to produce various types program (5608-TR4) and Textpack 6 program (5608-TR6) to support
of business charts. Charts that can be created are bar charts, line the automatic hyphenation of these programs. Languagepack 2 will
charts, pie charts, and free-form charts (such as organization oharts). also support a level of spelling verification aid in Textpack 2 and
All of these charts can be displayed and revised using either 25-line or Textpack 3.
large display models of the 6580 Displaywriter equipped with a
Chartpack display adapter card (feature #6955). Charts can be stored 65S0 DISPLAYWRITER SYSTEM
on diskette, merged to print with text documents, and printed on 5218
and 5228 Printwheel Printers with printwheels designed for use with ELECTRONIC DOCUMENT DISTRIBUTION
Chartpack. 560S-SRS
The 6580 Electronic Document Distribution program provides thE' 6580
Displaywriter System with the functions required to perform the
65S0 DISPLAYWRITER SYSTEM following in an SNA/SDLC communications environment: Document
ASYNCHRONOUS COMMUNICATIONS distribution with remote Displaywriters and certain other IBM office
560S-SR1 systems within a communication network through the facilities of
The 6580 Displaywriter System Asynchronous Communications Distributed Office Support S/370 (DISOSS/370) Version 3 '" access to
program provides the functions necessary to send information to and the DISOSS/370 Version 3 document library services '" direct
receive information from other 6580 Displaywriter Systems or other exchange of documents with another Displaywriter via SNA telecom-
compatible communicating equipment. munications without the need for host assistance.
65S0 DISPLAYWRITER SYSTEM 65S0 DISPLAYWRITER SYSTEM
BINARY SYNCHRONOUS COMMUNICATIONS 3270 ATTACHED WORKSTATION
560S-SR2 560S-SR9
The 6580 Displaywriter System Binary Synchronous Communications The 6580 Displaywriter System 3270 Attached Workstation program
program provides the functions necessary to send documents to and provides the user the convenience of both Displaywriter and 3270 host
receive documents from other 6580 Displaywriter Systems or other system functions in a single workstation. This program allows the
compatible communicating equipment. (Documents received by other Displaywriter to emulate functions of the 3278 Display and the 3287
compatible communications equipment may need additional editing or Printer when the Displaywriter workstation is attached through coaxial
reformatting if revisions are necessary.) cables to a 3274 Control Unit or 3276 Control Unit Display Station.
Displaywriters may also attach to the 4321 and 4331 Processors and
the 4701 Finance Communication Controller through the integrated
65S0 DISPLAYWRITER SYSTEM adapters supporting the 3278 Display mdl 2 and the 3287 Printer mdls
MAGNETIC CARD CONVERSION 1 and 2. In addition to providing 3270 emulation, documents can be
transferred in either direction between the Displaywriter diskette and an
560S-SR3 appropriately programmed host system. Also, with a simple keystroke
The 6580 Displaywriter System Magnetic Card Conversion program operation, the user can alternate between Displaywriter text functions
provides the functions necessary to support the interaction between and 3270 applications.
magnetic cards read or recorded in the 6580 Displaywriter 6361 Mag
Card Unit and the 6580 Displaywriter System.
6580 DISPLAYWRITER SYSTEM TEXTPACK E
560S-TRE
65S0 DISPLAYWRITER SYSTEM LANGUAGEPACK
The 6580 Displaywriter System Textpack E program provides the
560S-SR4 functions for text processing and operator assistance.
The 6580 Displaywriter System Languagepack program contains
spelling dictionaries in eight languages for use with the spelling
verification aid contained in the 6580 Displaywriter System Textpack 2 65S0 DISPLAYWRITERSYSTEM TEXTPACK 1
program (5608-TR2) and Textpack 3 program (5608-TR3). 560S-TR1
The 6580 Displaywriter System Textpack 1 program is designed to
65S0 DISPLAYWRITER SYSTEM REPORTPACK oper~te on the 6580 Displaywriter System. The Textpack 1 program
provides for text entry, revision and a Spelling Verification Aid (English
560S-SR5 version programs only) through the use of a workstation. Printed output
The 6580 Displaywriter System Reportpack program provides for the is also controlled by this program.
creation, maintenance, and printing of files.
65S0 DISPLAYWRITER SYSTEM TEXTPACK 2
560S-TR2
The 6580 Displaywriter System Textpack 2 program is designed to
operate on the 6580 Displaywriter System. The Textpack 2 Program
provides for text entry, revision, and a Spelling Verification Aid. Printed
output is also controlled by this program.
---
- ----
- ----
---- ISG
Do not reproduce without written permission PSS.2
Aug 83
