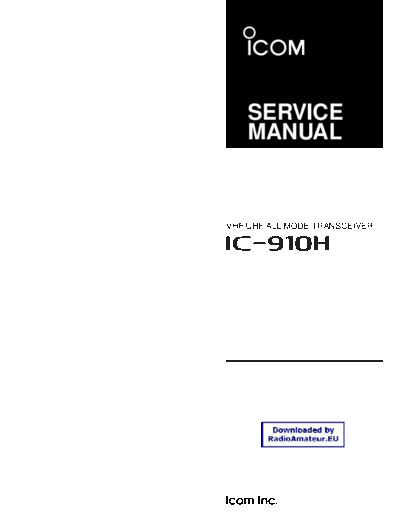

Image preview - the first page of the document
IC910H_serv


>> Download IC910H_serv documenatation <<

Text preview - extract from the document
    SERVICE
    MANUAL



VHF/UHF ALL MODE TRANSCEIVER

i910H
                      INTRODUCTION                                                             DANGER
This service manual describes the latest service information            NEVER connect the transceiver to an AC outlet or to a DC
for the IC-910H VHF/UHF ALL MODE TRANSCEIVER at the                     power supply that uses more than 16 V. This will ruin the
time of publication.                                                    transceiver.

                                                                        DO NOT expose the transceiver to rain, snow or any liquids.
 VERSION No.             VERSION                 SYMBOL
                                                                        DO NOT reverse the polarities of the power supply when
         #02               Europe                     EUR               connecting the transceiver.
         #04              Australia                   AUS
                                                                        DO NOT apply an RF signal of more than 20 dBm (100 mW)
         #06               U.S.A.                 USA-1                 to the antenna connector. This could damage the transceiv-
         #07                Korea                     KOR               er's front end.


To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.




                     ORDERING PARTS                                                       REPAIR NOTES
Be sure to include the following four points when ordering              1. Make sure a problem is internal before disassembling
replacement parts:                                                         the transceiver.
                                                                        2. DO NOT open the transceiver until the transceiver is
1.   10-digit order numbers                                                disconnected from its power source.
2.   Component part number and name                                     3. DO NOT force any of the variable components. Turn
3.   Equipment model name and unit name                                    them slowly and smoothly.
4.   Quantity required                                                  4. DO NOT short any circuits or electronic parts. An insu-
                                                                           lated tuning tool MUST be used for all adjustments.
                                                          5. DO NOT keep power ON for a long time when the trans-
                                                                           ceiver is defective.
     1110003140 IC    LA1150N       IC-910H   MAIN UNIT 5 pieces        6. DO NOT transmit power into a signal generator or a
     8810005770 Screw BiH M3
