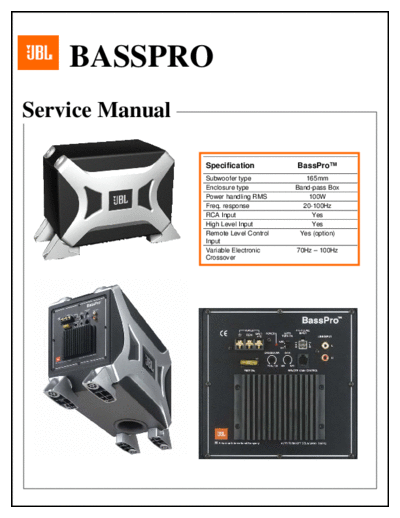

Image preview - the first page of the document



>> Download hfe_jbl_basspro_service_en documenatation <<

Text preview - extract from the document

    BASSPRO
Service Manual

                 Specification          BassProTM
                 Subwoofer type            165mm
                 Enclosure type         Band-pass Box
                 Power handling RMS         100W
                 Freq. response           20-100Hz
                 RCA Input                   Yes
                 High Level Input            Yes
                 Remote Level Control    Yes (option)
                 Input
                 Variable Electronic    70Hz
