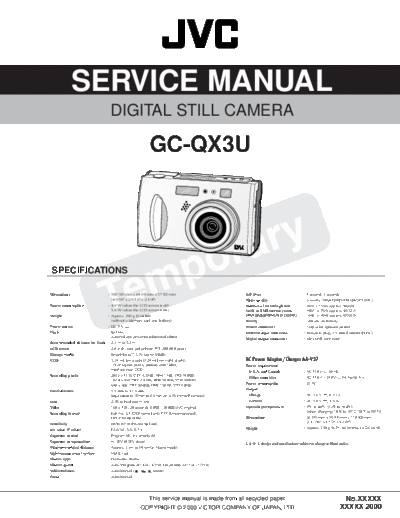

JVC_GC-QX3U


>> Download JVC_GC-QX3U documenatation <<

Text preview - extract from the document
               SERVICE MANUAL
                                  DIGITAL STILL CAMERA

                                                              GC-QX3U




 SPECIFICATIONS

Dimensions                       : 108 (W) mm x 64 (H) mm x 57 (D) mm                              Self timer                             : 1 second, 8 seconds
                                   (4-5/16" x 2-9/16" x 2-1/4")                                    Photo quality                          : 3 modes (STANDARD/FINE/NO COMP.)
Power consumption                : 4.0 W (when the LCD screen is off)                              Number of storable photos              : 2032 x 1536: approx. 10/8/0
                                   5.6 W (when the LCD screen is on)                               (with an 8MB Memory card,                1024 x 768: approx. 43/32/3
Weight                           : Approx. 290 g (0.64 lbs)                                        STANDARD/FINE/NO COMP.)                   640 x 480: approx. 87/65/9
                                   (without a Memory card and battery)                             Battery                                : Lithium ion battery
Power source                     : DC 5 V                                                          Printer connector                      : Output for optional printer
Flash                            : Built-in,                                                       VIDEO output connector                 : Two-pole plug, 3.5 mm diameter (NTSC)
                                   Auto/red-eye prevention/forced/disabled
                                                                                                   Digital output connector               : Mini-USB connector
Recommended distance for flash   : 2.3 m to 5.2 m
LCD screen                       : 2.0 inch, cool polysilicon TFT, 200,000 pixels
Storage media                    : SmartMediaTM 3.3V (up to 64MB)
CCD                              : 3.34 million pixels (3.24 million valid pixels),                AC Power Adapter/Charger AA-V37
                                   1/1.8" square pixels, primary color filter,                     Power requirement
                                   interlace scan CCD                                                                                     : AC 120 V`, 60 Hz
                                                                                                     U.S.A. and Canada
Recording pixels                 : 2032 x 1536 (TIFF 9.5MB, FINE 1MB, STD 700KB)                                                          : AC 110 V
