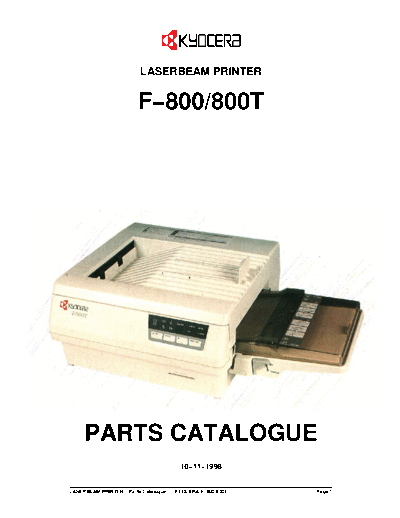

Image preview - the first page of the document
>> Download Kyocera F-800 Parts Manual documenatation <<
Text preview - extract from the document
LASERBEAM PRINTER
F-800/800T
PARTS CATALOGUE
10-11-1998
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 1
F-800/800T Parts Catalogue
Table of Contents
Covers (Fig.1) 3
Upper Unit (Fig.2) 5
Lower Unit (Fig.3) 7
Controller box (Fig.4) 10
Drive unit (Fig.5) 12
Fuser (Fig.6) 14
Connection cords (Fig.7) 16
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
'Ref No.' Reference number which corresponds to the parts in the figure
'Part code' Part code which identifies the part
'Part description' A brief description of the part
'Quantity' Quantity of the part used in the printer or option
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
Consumables and Maintanence Kits
TK-6 Toner Kit
DK-5 Drum (12K pages)
DV-10 Developer (20K pages)
FK-5 Fuser (100K pages)
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 2
Fig.1 - Covers
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 3
Ref No. Part Code Description Quantity
01-001 5AAMF800**03 Top Cover Assy 1
01-002 5MVB752SH002 Base Side Cover 1
01-003 5AAVCLEAN018 Cleaning Stick 1
01-005 5AAFZF800T*1 Key Board Assy F800T 1
01-021 5MVU741SH001 Paper Stopper 1
01-006 5AAMF800**02 Base Assy F800T 1
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 4
Fig.2 - Upper Unit
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 5
Ref No. Part Code Description Quantity
02-00A 5AAYF800*C2 Upper Unit Entirety 1
02-00B 5AAYF800*B7 Deve Drive Assy 1
02-00D 5AAYF800*B1 Eraser Assy 1
02-00E 5AAYF800*88 Paper Sensor Assy 1
02-013 5MMZ321SL003 Eject Stopper 1
02-014 5MVX833SL001 Deve Guide A 1
02-015 5MMX522LD003 Guide Spring 1
02-016 5MMX831SL001 Deve Guide B 1
02-017 5MVL821SB002 Drum Rail 1
02-018 5MMW361LJ019 Drum Spring F 1
02-019 5MMW361LJ020 Drum Spring R 1
02-020 5MVF166SB002 Spring Foot 2
02-021 5MMX422LD001 Fuser Press SP 2
02-022 5MVX622DG001 Safety Lever 1
02-024 5MVX483SB002 P.Sensor Bkt 1
02-025 5MMX321SM001 Cord Keep 1
02-026 5AACCNFC1GEA Conn Cord Assy 1
02-032 5MML363SL002 B-S Angle (FU) 1
02-033 5MMS531SL002 B-S Angle (RU) 1
02-034 5MML532SL002 SCN Angle (F) 1
02-035 5MML532SL003 SCN Angle (R) 1
02-036 5MMT476LD003 SCN Shaft 2
02-041 5MVX664SX001 Eject Lever F 1
02-042 5MVX321SJ001 Eject Lever R 1
02-043 5MMT865SD001 Eject Stay 1
02-044 5MMW262LJ004 Eject Spring 1
02-045 5MMW267LJ001 Eject Spring 1
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 6
Fig.3 - Lower Unit
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 7
Ref No. Part Code Description Quantity
03-00C 5AAYF800**D6 Paper Shute T Assy 1
03-00D 5AAYF800**D5 Paper Shute B Assy 1
03-00E 5AAYF800**97 Fan Assy 1
03-00F 5AAYF800**53 Counter Gear Assy 1
03-00G 5AAYF800**37 B-S Bkt Assy (F) 1
03-00H 5AAYF800**38 B-S Bkt Assy (R) 1
03-00I 5AAPRZZC1011BH P.W.Board Assy Rear 1
03-00J 5AAPRZZC1008BH Assy Connect 1
03-00K 5AAYF800**94 Regist Roller B Sub 1
03-00L 5AAYF800**D3 Transfer Charger Assy (AVSHILD026) 1
03-001 5AAMF800**02 Base Assy 1
03-002 5MMX552RD001 Clutch Earth Plate 1
03-003 5MVX864SB005 Entrance Guide 1
03-004 5MVX731SB001 Sensor Dog 1
03-005 5MVS723KF001 Regist Guide F 1
03-006 5MVS623KF002 Regist Guide R 1
03-007 5MMW167LJ003 Regist Spring F 1
03-008 5MMW167LJ004 Regist Spring R 1
03-011 5AAVSEPRT003 Paper Separator Assy 1
03-012 5MMW365LJ001 Paper Separator SP 2
03-013 5MML222RD002 Earth Plate 1
03-014 5MMX332SL004 SCN BKT Assy (A) 1
03-015 5MMX332SL005 SCN BKT Assy (B) 1
03-016 5AAYF800**D3 TC Assy 1
03-017 5AAVPLATE010 Discharger Assy 1
03-018 5MVX773XH001 TC Receptacle 1
03-019 5MVX853XH001 MCH Connect 1
03-020 5AAYF800T*03 Trans Assy 1
03-021 5MMS663RD001 Front Earth Plate 1
03-023 5MML262RD001 Drum Earth 1
03-024 5MML422RJ001 Drive Earth 1
03-025 5MVB877SB001 Inner Cover 1
03-026 5MVN331SX001 Dens Cont Knob 1
03-027 5MVX662SB013 Ozone Filter 1
03-029 5MML632RD001 B-S Earth 1 1
03-030 5MML643RD001 B-S Earth 2 1
03-031 5MVS321KJ003 P Side Seal F (Incl. 03-D) 1
03-032 5MVS331KJ001 P Side Seal R (Incl. 03-D) 1
03-033 5MVS217RJ002 P Sponge S (Incl. 03-C) 2
03-034 5MVS617RJ001 P Sponge L (Incl. 03-L) 2
03-035 5AACCNFT6GEA Conn Cord Assy 1
03-036 5MMX321SM001 Cord Keep 1
03-041 5AAYF800**93 Feed Roller Sub Assy 1
03-042 5MVX422DX001 Feed Bearing 2
03-043 5EYYAGAAF02**01 Feed Clutch 1
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 8
Ref No. Part Code Description Quantity
03-052 5MVG137DB009 Count Gear Z28 1
03-053 5MVX421DX002 Regist Bearing R 1
03-054 5MVX421DX001 Regist Bearing F 1
03-055 5EYYAGAAF01**01 Regist Clutch 1
03-056 5MVG127DB014 Regist Gear B 1
03-061 5MMT876SN023 Regist Roller T (Incl. 03-C) 1
03-062 5MVX511DB001 Regist Arm F (Incl. 03-C) 1
03-063 5MVX511DB002 Regist Arm R (Incl. 03-C) 1
03-064 5MML831LD002 Paper Shot T (Incl. 03-C) 1
03-065 5MVX211DX001 Regist Bearing T (Incl. 03-C) 2
03-066 5MVG127DB013 Regist Gear T (Incl. 03-C) 1
03-067 5MMW176LJ004 Arm Spring F (Incl. 03-C) 1
03-068 5MMW176LJ005 Arm Spring R (Incl. 03-C) 1
03-071 5MMT863LD001 Paper Roller (Incl. 03-D) 1
03-072 5MMF154CJ001 Paper Roller Bushing (Incl. 03-D) 2
03-073 5MMC183LD001 Regist P Shoot B (Incl. 03-D) 1
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 9
Fig.4 - Controller box
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 10
Ref No. Part Code Description Quantity
04-001 5AAVCHASS015 Controller Box Assy 1
04-002 5MMB884SL001 Controller Cover 1
04-003 5MMS777SL003 Controller Box Plate 1
04-004 5MVE75JSJ001 Guide Rail 2
04-005 5MMU663LD001 Rom Push Plate 1
04-006 5MVS873KJ001 Insulator 1
04-007 5MVS755VH001 I/F Sheet 1
04-008 5MVS655VH001 Inlet Sheet 1
04-009 5MVS655VH002 Switch Sheet 1
04-010 5MVT211NW001 Doub Locking Spacer 7
04-011 5MVQ421RB004 Board Spacer 1
04-012 5MVX111NB003 Plasti Rivet 2
04-021 5AAEZF800**2 Switching Regulator 1
04-026 5ESC0220106***01 See-Saw SW UL VDE S 1
04-041 5AAPRLGG2002CH Main PWB Assy F-800T 1
04-041 5AAPRLGG2002EH Main PWB Assy F-800 1
04-051 5AAYF800**C3 Inlet Assy AC 1
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 11
Fig.5 - Drive unit
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 12
Ref No. Part Code Description Quantity
05-000 5AAYF800**B2 Drive Gear Assy (with Motor) 1
05-00A 5AAYF800**C5 Drive Gear Sub (without Motor) 1
05-00B 5AAYF800**C6 Main Motor Sub (AXMT002GEA) 1
05-003 5MMG038SV01 Motor Gear Z30 H24 1
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 13
Fig.6 - Fuser
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 14
Ref No. Part Code Description Quantity
06-000 FK-5 Fuser Unit 1
06-00A 5AAYF800**B4 Fuser Sub Cover Assy 1
06-00A 5AAYF800**C7 Fuser Cover 1
06-012 5MVX332XN002 Separator 4
06-013 5MMW163LJ003 Separator Spring 4
06-014 5MMP232LD001 Cleaner Spring 2
06-015 5MVX752SB001 Jam Actuator 1
06-016 5MVG307DB001 Exit Roll Pulley 1
06-017 5MVG038DB001 Exit Roll GE Z23 1
06-018 5MVS668RB003 Exit Belt 1
06-019 5MVT877CB001 Exit Roller 2
06-020 5MVM176DB003 Exit Roll Bushing 4
06-021 5MVM272RB003 Exit Tire A 2
06-022 5MVM272RB002 Exit Tire B 2
06-031 5MVB664XB001 Fuser Cover F 1
06-032 5MVB666XB001 Fuser Cover R 1
06-044 5MVM374DB001 Exit Pulley 2
06-045 5MMP332LD001 Exit Pulley Bkt 2
06-046 5MVX642CB002 Inlet Upper Guide 1
06-047 5MMS623RD001 Cord Plate F 1
06-048 5MMS713RD001 Cord Plate R 1
06-049 5MVX622XB001 Thermister Support 1
06-051 5MBSP%4007NZ Stud Screw 3
06-052 5MMP333LD001 Heater Support 1
06-054 5MVX221XB001 Cord Stopper 1
06-055 5AACCNFR0GEA Conn Cord Assy 1
06-056 5AAXTM001GEA Thermistor Assy 1
06-057 5EYFFQ21001**01 Thermostat 240V 210C 1
06-058 5EZPB24125220101 Heater Lamp 240V 1
06-061 5AAPRHCC1002BH Heat Control PWB 1
06-062 5AAPRSSC1002BH P.W. Board Assy Jam 1
06-063 5AAVCLEAN Cleaning Pad
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 15
Fig.7 - Connection cords
LASERBEAM PRINTER - Parts Catalogue KYOCERA F-800/800T Page 16
Ref No. Part Code Description Quantity
07-001 5AACCNFN0GEA Conn Cord Assy 1
07-002 5AACCNEP8GEA Conn Cord Assy 1
07-003 5AACCNEQ3GEA Conn Cord S00026 1
07-004 5EYCS12C129**01 Connector 2
