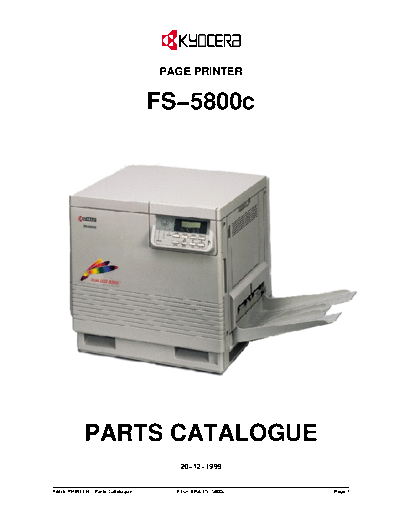

Image preview - the first page of the document
Kyocera FS-5800c Parts Manual


>> Download Kyocera FS-5800c Parts Manual documenatation <<

Text preview - extract from the document
                                 PAGE PRINTER


                                 FS-5800c




           PARTS CATALOGUE
                                    20-12-1999


PAGE PRINTER - Parts Catalogue     KYOCERA FS-5800c   Page 1
FS-5800c Parts Catalogue
Table of Contents

Covers (Back/Left) (Fig.1)                                                                    3
Covers (Right/Front) (Fig.2)                                                                  5
Paper Feeder (Fig.3)                                                                          7
Paper Feeder (Fig.4)                                                                          9
Power Supply Unit (Fig.5)                                                                    12
Paper Eject Unit (Fig.6)                                                                     14
Toner Cartridge Selector (Fig.7)                                                             16
Face Down Unit (Fig.8)                                                                       18
Upper/Read/Left Side Parts (Fig.9)                                                           20
Engine Control Board Connector (Fig.10)                                                      22
Main Control Board (Fig.11)                                                                  24
Toner Cartridge Drive Unit (Fig.12)                                                          26
Mechanical Base (Fig.13)                                                                     28
Mechanical Base (Fig.14)                                                                     30
Mechanical Base (Fig.15)                                                                     32
Media Tray (Fig.16)                                                                          34
Fuser Unit (Fig.17)                                                                          36

Introduction

The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:

'Ref No.'                        Reference number which corresponds to the parts in the figure
'Part code'                                                 Part code which identifies the part
'Part description'                                               A brief description of the part
'Quantity'                                    Quantity of the part used in the printer or option

Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.

Consumables and Maintanence Kits

TK-80K                            Black Toner Kit
TK-80C                            Cyan Toner Kit
TK-80M                            Magenta Toner Kit
TK-80Y                            Yellow Toner Kit
IU-80                             Imaging Unit (60K images)
FK-80                             Fuser (30K Pages)
OS-80                             Oil Supply Web (15K Pages)
TR-80                             Transfer Roller (80K Pages)



PAGE PRINTER - Parts Catalogue            KYOCERA FS-5800c                                 Page 2
                                                                                                      01-001




                            01-031




                                                                                                                                                      01-003
                                                                                                          01-004


                                                             01-033


                                                                         01-028
                  01-032
                                                                                                                   01-005         01-006

                                                                                          01-027


                                      01-029            01-030




                                                                             01-025



                                                                    01-026




                                                                                                                             01-017


                             01-011                        01-013
                                                                                                                    01-018

         01-012




                   01-010




                                                                                                                                           01-007

 01-015



                                       01-009



            01-014


01-016
                                               01-008




                                                                                  Fig.1 - Covers (Back/Left)



           PAGE PRINTER - Parts Catalogue                                             KYOCERA FS-5800c                                              Page 3
Ref No.      Part Code           Description                  Quantity

01-001       5SNSP0012572        Top Cover                           1
01-002       5SNSP0012555        Spring A                            1
01-003       5SNSP0012903        Paper Guide                         1
01-004       5SNSP0012904        Top Cover Retainer                  2
01-005       5SNSP0012485        Left Side Cover                     1
01-006       5SNSA580CE01        Upper Rear Cover Assembly           1
01-007       5SNSP0012492        Lower Rear Cover                    1
01-008       5SNSP0012558        Strap                               1
01-009       5SNSA580CE04        Paper Chute Assembly                1
01-010       5SNSP0012486        Left Side Door                      1
01-011       5SNSA580CE05        Tray Cover Assembly                 1
01-012       5SNSP0012549        Tray Cover Lever                    1
01-013       5SNSP0012548        Tray Cover Spring                   1
01-014       5SNSP0012559        Left Side Door Hook                 2
01-015       5SNSP0012561        Left Side Door Shaft                1
01-016       5SNSP0012560        E-ring                              2
01-017       5SNSP0012905        T/Humidity Sensor Case              1
01-018       5SNSP0012906        T/Humidity Sensor Board             1
01-019       5SNSP0012907        Rivet                               1
01-020       5SNSP0012550        Screw 3 x 8                        10
01-021       5SNSP0013179        Screw 3 x 6                        11
01-022       5SNSP0012551        Screw 3 x 12                        1
01-023       5SNSP0012556        Spring B                            1
01-024       5SNSP0012487        Multi Purpose Tray Holder           1
01-025       5SNSA580CE06        MPF Paper Support Assembly          1
01-026       5SNSP0012488        Paper Guide Right                   1
01-027       5SNSP0012489        Paper Guide Left                    1
01-028       5SNSP0012557        Paper Guide Spring                  2
01-029       5SNSP0012552        Rack                                2
01-030       5SNSP0012553        Pinion Gear                         1
01-031       5SNSP0012490        Extension Tray                      1
01-032       5SNSP0012554        Bushing                             2
01-033       5SNSP0012562        Screw 3 x 8                         3




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5800c               Page 4
                                                                                                                                                                                 02-021

            02-025



            02-006                          02-005


                                                                                                                                        02-020

                                                                   02-024                                                          02-026
            02-025
                                                                                                                                                                                 02-010

             02-027
                                                                                    02-026
                                                                                                                                                                        02-014
             02-025
                                                          02-004
                                                                                                                                                               02-009
             02-006
                                                                                  02-029
                                                     02-005                                                                                           02-022



                                                                       02-024
                                                                                                                                            02-008



                               02-027                          02-004



02-001                                                             02-024



                                                                                     02-007


                                                                                                      02-026

                                                                                             02-024



                                                                                                                                                                                              02-019

                                                                                         02-023


                                                                                02-003
                                                                                                                                                                                   02-019


                                                                                                                        02-012




                                                                                                                        02-013

                                                                                                                                                      02-018

                                                              02-019


                                                                                                               02-016
                                                                                                                          02-019
                                                                                                                                             02-019


                      02-019            02-002


                                                                                                                                                                                  02-015




                                                                                   Fig.2 - Covers (Right/Front)



         PAGE PRINTER - Parts Catalogue                                                   KYOCERA FS-5800c                                                                           Page 5
Ref No.      Part Code           Description                   Quantity

02-001       5SNSA580CE02        Front Cover Assembly                 1
02-002       5SNSP0012493        Bottom Front Cover                   1
02-003       5SNSP0012908        Magnet Retainer                      1
02-004       5SNSP0012909        FC Hinge Support                     2
02-005       5SNSP0012910        Front Cover Hinge                    2
02-006       5SNSP0012911        Hinge Shaft                          2
02-007       5SNSP0012526        Lower Operation Panel Cover          1
02-008       5MVB876SH056        Panel Front                          1
02-009       5MVX742SH002        Operation Button                     1
02-010       5AAPRDSC2001AH      Printer LCD Board                    1
02-011                           LCD Board Bracket                    1
02-012       5SNSP0013180        E-ring                               2
02-013       5SNSP0012913        Bushing                              2
02-014                           Screw 3 x 6                          3
02-015       5SNSP0012494        Paper Exit Tray                      1
02-016       5SNSP0012495        Right Side Front Cover               1
02-017       5SNSP0012496        Right Side Rear Cover                1
02-018       5SNSP0012497        Right Side Lower Cover               1
02-019       5SNSP0013179        Screw 3 x 6                          9
02-020                           Screw 2 x 6                          4
02-021       5SNSP0013183        Screw 2 x 6                          4
02-022       5SNSP0013184        Screw 3 x 10                         2
02-023       5SNSP0013185        Screw 3 x 8                          1
02-024       5SNSP0012550        Screw 3 x 8                          7
02-025       5SNSP0013186        E-ring                               4
02-026       5SNSP0013187        Screw 3 x 8                          3
02-027       5SNSP0013188        Screw 3 x 5                          4
02-028       5SNSP0012914        Door Reinforcement                   1
02-029       5MVS747CH001        Panel Key English                    1
02-029       5MVS747CH002        Panel Key German                     1
02-029       5MVS747CH003        Panel Key French                     1
02-029       5MVS747CH004        Panel Key Spanish                    1
02-029       5MVS747CH005        Panel Key Italian                    1
02-029       5MVS747CH006        Panel Key Danish                     1
02-029       5MVS747CH007        Panel Key Swedish                    1




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5800c                Page 6
                                                                   03-001
03-002




                                                                                                                                          03-004
                   03-021

                                     03-022


                                                                                                                                              03-005
          03-026            03-027                                           03-003


                                                                                          03-010                                              03-006


           03-028                                                            03-011
                                                               03-024                                                                         03-007


         03-029


                                                                                                     03-035


                                                                                            03-012                                                               03-008
   TR-80


                                                                               03-023                                            03-035
                                                                                                              03-022
                                                                                        03-034
                                                                                                     03-021

                                                                                           03-026
                                                                            03-029                                               03-036                                     03-009




                                                                                                                                                          03-011

                                                                                                                                                       03-012




                                                                                                               03-016




                                                                                                     03-037                          03-014



                                                                                                     03-015




                                                                                 03-032




                                                                                                                        03-031


                                                                                                      03-018
                                                                                                                                                                   03-017

                                              03-032




                            03-033                        03-019                                                                            03-030



                                                 03-020




                                                            Fig.3 - Paper Feeder



  PAGE PRINTER - Parts Catalogue                            KYOCERA FS-5800c                                                                                    Page 7
Ref No.      Part Code           Description                         Quantity

03-001       5SNSA580CE04        Paper Chute Assembly                       1
03-002       5SNSP0012915        Paper Chute Opening Adjuster               1
03-003       5SNSP0012916        Bushing                                    1
03-004       5SNSA580CE48        Retard Pad Assembly                        1
03-005       5SNSP0012917        Retard Pad Spring                          1
03-006       5SNSP0012918        Retard Pad Platform                        1
03-007       5SNSP0012919        Paper Thickness Select Level               1
03-008       5SNSA580CE49        MPT Chute Assembly                         1
03-009       5SNSP0012920        MPT Chute Right Spring                     1
03-010       5SNSP0012921        MPT Chute Left Spring                      1
03-011       5SNSP0012922        Pinch Roller                               4
03-012       5SNSP0012923        Pinch Roller Spring                        2
03-013       5SNSP0012925        MPT/Reg. Senor Cover                       1
03-014       5SNSP0012925        MPT Paper Out Sensor Arm                   1
03-015       5SNSP0012926        Registration Sensor Arm                    1
03-016       5SNSP0012927        MPT Paper Out/Reg Sensor Board             1
03-017       5SNSP0012928        Paper Feed Unit Cover                      1
03-018       5SNSP0012929        Paper Feed Unit Board                      1
03-019       5SNSP0012930        Connector Bracket                          1
03-020       5SNSP0012931        PF Unit Coupling Connector - Male          1
03-021       5SNSP0012932        Bushing                                    2
03-022       5SNSP0012933        Registration Spring                        2
03-023       5SNSP0012934        Registration Roller Gear                   1
03-024       5SNSP0012935        Pin                                        1
03-025       5SNSP0012498        Registration Roller                        1
03-026       5SNSP0012936        Bushing                                    2
03-027       5SNSA580CE50        Cleaning Roller Holder Assembly            1
03-028       5SNSP0012937        Pressure Roller/Cleaning Roller            1
03-029       5SNSP0012938        Cleaning Roller Spring                     2
03-030       5SNSP0013189        Screw 3 x 14                               1
03-031       5SNSP0013190        Screw 3 x 6                                1
03-032       5SNSP0013184        Screw 3 x 10                               2
03-033       5SNSP0012581        Screw 3 x 8                                2
03-034       5SNSP0012939        Spacer                                     1
03-035       5SNSP0013191        E-ring                                     5
03-036       5SNSP0012940        Pinch Roller Shaft                         1
03-037       5SNSP0012941        Resist Senor Cable                         1

TR-80        TR-80               Transfer Unit                              1




PAGE PRINTER - Parts Catalogue      KYOCERA FS-5800c                     Page 8
                                                               04-044            04-048



                      04-042


                                  04-001

                                           04-002

                                                    04-042
                                                                      04-003
                                                                                                                                                    04-036
                                                                                               04-004


         04-042         04-001




                                                      04-010                                                                                                                                 04-044
                                                                                                              04-009




                                                                                     04-005
                                                                                                                                           04-003
                                                                                                   04-042
                                              04-013                                                                                                         04-042
           04-001
04-042                                                                                                                                                                04-002

                                                                                                                      04-011                                                              04-006
                    04-019        04-042                                                                                                                                   04-042
                                                                                 04-043                                        04-042
                                                                                                                                            04-006                                             04-042


                                                    04-018                                                                                  04-042                                                          04-007
                                                                                                04-014                                                       04-012


                                                                                                                      04-043                                                                                   04-008


                                                                        04-020                                                                                          04-042

                                                                                                                                 04-015
                                                                                                   04-042                                                    04-016


                                                                                                    04-019        04-006
                                                                        04-041                                                                                          04-043


                                                                                                                                           04-018                                04-017
                                                                                      04-022
                                                                      04-045                                                        04-042
                                                                                                                                                                                    04-043
                                                                                                                                             04-021
                                                                                                                                                              04-042



                                                                                                                                                                        04-023




                                                                                                                        04-025


                                                                                                                                 04-024




                                                                                                                                                                                                   04-046
                                                                                                         04-026
                                                                                                                                                    04-028                       04-031

                                                                                                                                                                                          04-032
                                                                                                                                                                                                      04-030


                                                                                                            04-001


                                                                                                             04-033

                                                                                                                                                                                                                        04-029
                                                        04-035                                                                            04-005
                                                                                                             04-043

                                                     04-026                        04-034
                                                                      04-043                    04-043




                         04-038
                                                             04-043

                               04-037
                                             04-044




                                                                                          Fig.4 - Paper Feeder



   PAGE PRINTER - Parts Catalogue                                                         KYOCERA FS-5800c                                                                                                     Page 9
Ref No.      Part Code           Description                       Quantity

04-001       5SNSP0012942        Bushing                                  4
04-002       5SNSP0012943        Cam                                      2
04-003       5SNSP0012944        Pickup guide Roller                      2
04-004       5SNSA580CE03        Pickup Roller Assembly M.P.T.            1
04-005       5SNSP0012945        Pin                                      4
04-006       5SNSP0012946        Bushing                                  3
04-007       5SNSP0012947        Gear                                     1
04-008       5SNSP0012519        STR Sensor Arm                           1
04-009       5SNSP0012948        M.P.T. Roller Shaft                      1
04-010       5SNSP0012499        Registation Roller                       1
04-011       5SNSP0012949        Registation Roller Gear                  1
04-012       5SNSP0012500        Registation Roller Clutch                1
04-013       5SNSA580CE51        STR Holder Assembly Left                 1
04-014       5SNSP0012950        STR Holder Shaft                         1
04-015       5SNSA580CE52        STR Holder Assembly Right                1
04-016       5SNSP0012951        STR Gear                                 1
04-017       5SNSP0012952        Gear                                     1
04-018       5SNSP0012953        Spring                                   2
04-019       5SNSP0012954        STR Cam                                  2
04-020       5SNSP0012955        STR Cam Shaft                            1
04-021       5SNSP0012520        STR clutch                               1
04-022       5SNSP0012956        M.P.T. Holder Guide                      1
04-023       5SNSP0012957        Gear                                     1
04-024       5SNSP0012958        Gear                                     1
04-025       5SNSP0012959        Gear                                     1
04-026       5SNSP0012960        Gear                                     2
04-027       5SNSP0012961        Motor Bracket Paper Feed Unit            1
04-028       5SNSP0012501        Motor Paper feed Unit                    1
04-029       5SNSA580CE13        Clutch Assembly Paper Feed Unit          1
04-030       5SNSP0012962        Bushing                                  1
04-031       5SNSP0012502        Pickup Roller Rubber                     2
04-032       5SNSP0012503        Pickup Roller                            2
04-033       5SNSP0012963        Gear                                     1
04-034       5SNSP0012964        Gear                                     1
04-035       5SNSP0012965        Gear                                     1
04-036       5SNSP0012966        Paper Feed Roller                        1
04-037       5SNSP0012967        Joint Gear                               1
04-038       5SNSP0012968        Gear Guide Roller                        1
04-039       5SNSP0012521        Paper Out Sensor Arm                     1
04-040       5SNSP0012522        Paper Empty Sensor Arm                   1
04-041       5SNSP0012969        Pin                                      2
04-042       5SNSP0013180        E-ring                                  17
04-043       5SNSP0013191        E-ring                                   9
04-044       5SNSP0013192        E-ring                                   4
04-045       5SNSP0013188        Screw 3 x 5mm                            1


PAGE PRINTER - Parts Catalogue     KYOCERA FS-5800c                   Page 10
Ref No.      Part Code           Description          Quantity

04-046       5SNSP0013190        Screw 3 x 6mm               2
04-047       5SNSP0013193        Screw 3 x 6mm               1
04-048       5SNSP0012970        Bearing                     1
04-049       5SNSP0012971        Bearing                     1




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5800c      Page 11
                   05-002




                                                   05-001




                                                            05-006




                                                                05-003



                                                                                          05-006




                                  05-008
                                                                                                         05-004
                                 05-009



                                      05-006




                                                                                                                  05-006




                                                                                               05-005
                                   05-006
                                                                                 05-007




                                          05-006




                                                                               05-006




                                                   Fig.5 - Power Supply Unit



PAGE PRINTER - Parts Catalogue                        KYOCERA FS-5800c                                  Page 12
Ref No.      Part Code           Description          Quantity

05-001       5SNSP0012575        Power Supply                1
05-002       5SNSP0012972        Power Supply Frame          1
05-003       5SNSP0012973        Sheild Cover                1
05-004       5SNSP0012974        Fan Motor Bracket           1
05-005       5SNSP0012504        Fan Motor                   1
05-006       5SNSP0013190        Screw 3 x 6                13
05-007       5SNSP0013194        Screw 3 x 25                2
05-008       5SNSP0012975        Fuse (F201)                 1
05-009       5SNSP0012976        Fuse (F203)                 1




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5800c      Page 13
                        06-001
                                                                                        06-012




                                                                                            06-001




                                              06-006



         06-012

                                                            06-005




                                     06-013




06-002




                                                                                                              06-005




                                                                                                                       06-004




                       06-007
                                                                                                                                06-012




                                                                          06-008                              06-003




                                                                                                     06-012


                          06-009

                                                                                   06-010




                                                                                                     06-011




                                                         06-012




                           06-012
                                                                                   06-012




                                                       Fig.6 - Paper Eject Unit



    PAGE PRINTER - Parts Catalogue                      KYOCERA FS-5800c                                                   Page 14
Ref No.      Part Code           Description                  Quantity

06-001       5SNSP0012579        Unit Inner Cover                    1
06-002       5SNSP0012578        Solenoid Side Cover                 1
06-003       5SNSP0012571        Motor Side Cover                    1
06-004       5SNSP0012567        Spring D                            1
06-005       5SNSP0012568        Spacer                              2
06-006       5SNSP0012564        Spring C                            1
06-007       5SNSP0012566        Cover Spring B                      1
06-008       5SNSP0012565        Cover Spring A                      1
06-009       5SNSP0012573        Face Down Cover                     1
06-010       5SNSP0012570        Paper Tray Full Sensor Arm          1
06-011       5SNSP0012574        Unit Cover                          1
06-012       5SNSP0012581        Screw 3 x 8                        16
06-013       5SNSP0012562        Screw 3 x 8                         1




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5800c              Page 15
  07-035




         07-005                     07-017




                  07-044

                                                                                                                    07-041
                           07-002

                                               07-001


                                                                                             07-005

                                                         07-002                                                                       07-007


                                                                  07-003

                                                                            07-004      07-035

                                                                                            07-006    07-035



                                                                                                                         07-008
                                                         07-028
                               07-039




                                                                                                                                                           07-009
                                                                                                       07-027
                                                                                                                                                                                      07-010

                                             07-029                07-035

                                                                                                                                   07-002                                                      07-011
                                         07-038
                                                                               07-030                                                  07-026

                                                07-032                                                                                                                                   07-013

                                                                                                                                                                                          07-037
                                                                                                                                    07-035              07-012

                                                                                                                                                                                               07-014
                                                                                                                                                             07-036
 07-036



                                                                                                                                                                                07-039

07-033
                                                                                                                                                                                                          07-015
                      07-034                                                                                                                            07-005




                                                                                                                                               07-025      07-035
                                                                                                                                                                             07-016

                                                                                                                         07-035   07-023     07-035
                                                                                                                                                                                      07-039
                                                                                                                                  07-042                                                                07-021




                                                                                                                                                                    07-039
                                                                                                                07-022


                                                                                                                                                                                                        07-040
                                                                                                                                             07-043



                                                                                                                                                                                07-020




                                                                                                                    07-018



                                                                                                                                                                       07-040
                                                                                                                                                        07-019




                                                                                                                                   07-040




                                                                               Fig.7 - Toner Cartridge Selector



           PAGE PRINTER - Parts Catalogue                                                KYOCERA FS-5800c                                                                                  Page 16
Ref No.      Part Code           Description                             Quantity

07-001       5SNSP0012977        Toner Selector Shaft                           4
07-002       5SNSP0012978        Pin                                            8
07-003       5SNSP0012979        Pin                                            4
07-004       5SNSP0012980        Toner Selector Cam                             4
07-005       5SNSP0012981        Bushing                                        9
07-006       5SNSP0012982        Toner Selector Cam Gear                        4
07-007       5SNSP0012983        Upper Paper Ejection Guide                     1
07-008       5SNSP0012984        Face Down Switch Gate                          1
07-009       5SNSP0012985        Gear                                           1
07-010       5SNSP0012986        Joint Gear Spring                              1
07-011       5SNSP0012987        Gear                                           1
07-012       5SNSP0012988        Joint Gear Shaft                               1
07-013       5SNSP0012989        Joint Gear Bracket                             1
07-014       5SNSP0012990        Relay Cable Bracket                            1
07-015       5SNSP0012991        Cable                                          1
07-016       5SNSP0012992        Cam Motor Bracket                              1
07-017       5SNSP0012993        Plastic Washer                                 4
07-018       5SNSP0012994        Cam Shaft                                      4
07-019       5SNSP0012484        Cam Motor                                      4
07-020       5SNSP0012995        Cam Motor Board with Motor                     1
07-021       5SNSP0012996        Toner Cartridge Movement Sensor Board          1
07-022       5SNSP0012997        Cam Gear                                       4
07-023       5SNSP0012998        Gear                                           1
07-024       5SNSP0012999        Gear                                           1
07-025       5SNSP0013000        Gear                                           1
07-026       5SNSP0012523        Switch Back Arm                                1
07-027       5SNSP0013001        Switch Back Shaft                              1
07-028       5SNSA580CE07        Solenoid Assembly                              1
07-029       5SNSP0013002        Plastic Washer                                 1
07-030       5SNSP0013003        Bushing                                        1
07-031       5SNSP0013004        Spring                                         1
07-032       5SNSP0013005        Switch Back Arm                                1
07-033       5SNSP0012524        Release Lever                                  1
07-034       5SNSP0013006        Spring                                         1
07-035       5SNSP0013191        E-ring                                        17
07-036       5SNSP0012560        E-ring                                         2
07-037       5SNSP0013180        E-ring                                         1
07-038       5SNSP0013195        E-ring                                         2
07-039       5SNSP0013190        Screw 3 x 6                                    7
07-040       5SNSP0013196        Screw 3 x 8                                    5
07-041       5SNSP0012581        Screw 3 x 8                                    1
07-042       5SNSP0013007        Nut                                            4
07-043       5SNSP0013197        Screw 26 x 5                                   8
07-044       5SNSP0013008        Developer Cam                                  4




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5800c                         Page 17
                                                         08-026
                                                                                      08-003



                                      08-003

                                                                                                                           08-001

                                                                                                                                         08-026


                                                                                                                                                  08-007

                                                                                                                  08-008
                                                                                                                                                            08-004

                                                                                                                                                                     08-005
                                                                            08-027


                                                                                                         08-004

                                                                                                                  08-006                      08-026




                                                08-025
                                                                                                                                                       08-027



                                                                                                           08-025

                                                            08-011




                                                                                                                            08-025

                                                             08-015        08-014

          08-027                                                                    08-015
                                                                                                                              08-012
                                                                                               08-014

                                                                                                          08-013




08-026                                                                                                                                             08-019


                                                 08-015
                                                                                                                                                   08-028

                                                                                                                                                  08-020
                                                  08-014

                                                             08-023

                                                                                                            08-017
                                                                  08-028
                                                                                                  08-014          08-016
                                                                      08-015
                                                                                                                                    08-018


                                                                               08-009


                                               08-022      08-021
                                                                                      08-028
                                                                  08-022

                                                                           08-021
                                                                                    08-022

                                                                                         08-021
                                                                                                                                                  08-027
                                                                                                08-022

                                                                                                                   08-026

                                                                                                        08-021




                                                            Fig.8 - Face Down Unit



         PAGE PRINTER - Parts Catalogue                      KYOCERA FS-5800c                                                                                                 Page 18
Ref No.      Part Code           Description                    Quantity

08-001       5SNSP0013009        Paper Ejection Roller                 1
08-002       5SNSP0012010        Paper Ejection Roller                 1
08-003       5SNSP0013011        Bushing                               2
08-004       5SNSP0013012        Bushing                               2
08-005       5SNSP0013013        Gear                                  1
08-006       5SNSP0013014        Gear                                  1
08-007       5SNSP0013015        Pin                                   1
08-008       5SNSP0013016        Pin                                   1
08-009       5SNSA580CE17        Paper Ejection Sensor Board           1
08-010       5SNSP0013017        Stopper Shaft                         1
08-011       5SNSP0013018        Supporter Shaft                       1
08-012       5SNSP0012525        Lower Paper Ejection Guide            1
08-013       5SNSP0012518        Paper Exit Sensor Arm                 1
08-014       5SNSP0013019        Guide Roller                          4
08-015       5SNSP0013020        Guide Roller Spring                   4
08-016       5SNSP0012530        Paper Ejection Sensor Arm             1
08-017       5SNSP0013021        Spring                                1
08-018       5SNSP0013022        Plastic Washer                        1
08-019       5SNSA580CE18        Paper Exit Sensor Board               1
08-020       5SNSP0013023        Cable                                 1
08-021       5SNSP0012538        Roller                                4
08-022       5SNSP0012539        Spring                                4
08-023       5SNSA580CE19        Paper Tray Full Sensor Board          1
08-024       5SNSP0013024        Hook Shaft                            1
08-025       5SNSP0013180        E-ring                                4
08-026       5SNSP0013191        E-ring                                8
08-027       5SNSP0013190        Screw 3 x 6                          10
08-028       5SNSP0012562        Screw 3 x 8                           4




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5800c                Page 19
                                                                                                                                                                                                                                                         09-027

                                                                                                                                                                                                                                     09-028
                                                                                                                                                                                                                 09-029

                                                                                                                                                                                                                            09-023
PAGE PRINTER - Parts Catalogue


                                                                                                                                                                                                                                                                           09-002
                                                                                                                                                                                                                                                                                       09-027
                                                                                                                                                                                             09-028




                                                                                                                                                                                 09-027

                                                                                                                                                            09-031
                                                                                                                                                                                                                                              09-001

                                                                                                                                                   09-025                                      09-022

                                                                                                                                                    09-026                                                                                                        09-020


                                                                                                                                                     09-030                                    09-024

                                                                                                                            09-027
                                 Fig.9 - Upper/Read/Left Side Parts




                                                                                                                                                                                                                                                                     09-033

                                                                                                                        09-017
KYOCERA FS-5800c




                                                                                                                                                              09-015
                                                                                                                                                                                                                                                                            09-027
                                                                                                                                                                        09-027

                                                                                                                       09-027

                                                                                                                                                                                09-013

                                                                                                                                     09-027

                                                                                                                                     09-032                                                                                                                                          09-003
                                                                                                                                        09-014                                             09-004
                                                                                                          09-027
                                                                                                                                                 09-027

                                                                                                                                                     09-032                      09-011

                                                                                                                                                                  09-012
                                                                               09-019                                                                                                                              09-035            09-027    09-006                                09-027
                                                                                                                                                               09-018
                                                                                                                                                                                                            09-036
                                                                               09-027                                                                                   09-010                                                                          09-007


                                                                                                                                                                                                        09-009


                                                                               09-005                                                                                                     09-008
                                                                                                                                                                       09-018




                                                                      09-027
Page 20




                                                                                                                   09-027




                                                                                                 09-021

                                                                                        09-027
Ref No.      Part Code           Description                         Quantity

09-001       5SNSA580CE08        LSU (laser Scanning Unit)                  1
09-002       5SNSP0013025        Front Panel Cable Cover                    1
09-003       5SNSA580CE09        High Voltage Board                         1
09-004       5SNSP0013026        Switch Cover Plate                         1
09-005       5SNSP0013027        ROM Access Panel                           1
09-006       5SNSP0013028        HUU Cable                                  1
09-007       5SNSP0013029        HVU Cable                                  1
09-008       5SNSP0012505        Main Motor                                 1
09-009       5SNSP0013030        Main Motor Bracket                         1
09-010       5SNSP0012506        Paper Feed Motor                           1
09-011       5SNSP0013031        Ozone Fan Motor Braket                     1
09-012       5SNSP0012507        Ozone Fan Motor                            1
09-013       5SNSP0013032        F/T Cartridge Fan Motor Bracket            1
09-014       5SNSP0012507        Fuser/Toner Cartridge Fan Motor            1
09-015       5SNSP0013033        Cleaning Board Bracket                     1
09-016       5SNSA580CE24        Cleaning Board                             1
09-017       5SNSP0013034        Drive Unit Cover                           1
09-018       5SNSP0013198        Screw 3 x 10                               8
09-019       5SNSP0013035        Engine Control Board Shield Cover          1
09-020       5SNSP0013036        LCD Harness                                1
09-021       5SNSP0013037        Flat Cable Shield                          1
09-022       5SNSP0013038        Earth Plate                                1
09-023       5SNSP0013039        Earth Plate                                1
09-024       5SNSP0013040        Earth Plate                                1
09-025       5SNSP0013041        Polygon Motor Heat Sink Shaft              1
09-026       5SNSP0013042        Polygon Motor Heat Sink Spring             1
09-027       5SNSP0013190        Screw 3 x 6                               71
09-028       5SNSP0013199        Screw 4 x 14                               3
09-029       5SNSP0013200        Screw 3 x 6                                1
09-030       5SNSP0013043        Bushing                                    1
09-031       5SNSP0013201        E-ring                                     1
09-032       5SNSP0013202        Screw 3 x 35                               4
09-033       5SNSP0013202        Screw 3 x 8                                3
09-034       5SNSP0013044        Cable Clamp                                1
09-035       5SNSP0013191        E-ring                                     1
09-036       5SNSP0012527        Main Gear                                  1




PAGE PRINTER - Parts Catalogue      KYOCERA FS-5800c                    Page 21
                                                                                    10-017


                                           10-015








◦ Jabse Service Manual Search 2022 ◦ Jabse PravopisonTap.bg ◦ Other service manual resources online : FixyaeServiceinfo
