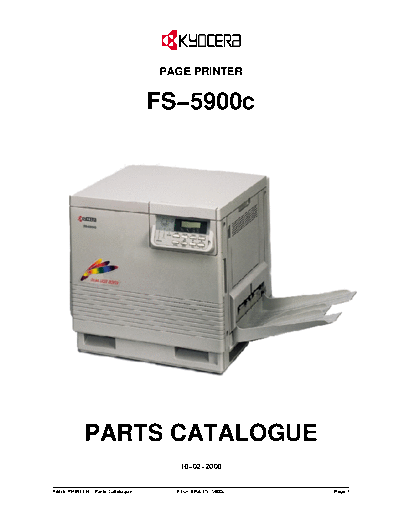

Image preview - the first page of the document
Kyocera FS-5900c Parts Manual


>> Download Kyocera FS-5900c Parts Manual documenatation <<

Text preview - extract from the document
                                 PAGE PRINTER


                                 FS-5900c




           PARTS CATALOGUE
                                    10-02-2000


PAGE PRINTER - Parts Catalogue     KYOCERA FS-5900c   Page 1
FS-5900c Parts Catalogue
Table of Contents

Covers (Back/Left) (Fig.1)                                                                    3
Covers (Right/Front) (Fig.2)                                                                  5
Paper Feeder (Fig.3)                                                                          7
Paper Feeder (Fig.4)                                                                          9
Power Supply Unit (Fig.5)                                                                    12
Paper Eject Unit (Fig.6)                                                                     14
Toner Cartridge Selector (Fig.7)                                                             16
Face Down Unit (Fig.8)                                                                       18
Upper/Right/Left Side Parts (Fig.9)                                                          20
Engine Control Board Connector (Fig.10)                                                      22
Main Control Board (Fig.11)                                                                  24
Toner Cartridge Drive Unit (Fig.12)                                                          26
Mechanical Base (Fig.13)                                                                     28
Mechanical Base (Fig.14)                                                                     30
Mechanical Base (Fig.15)                                                                     32
Media Tray (Fig.16)                                                                          34
Fuser Unit (Fig.17)                                                                          36

Introduction

The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:

'Ref No.'                        Reference number which corresponds to the parts in the figure
'Part code'                                                 Part code which identifies the part
'Part description'                                               A brief description of the part
'Quantity'                                    Quantity of the part used in the printer or option

Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.

Consumables and Maintanence Kits

TK-81K                            Black Toner Kit
TK-81C                            Cyan Toner Kit
TK-81M                            Magenta Toner Kit
TK-81Y                            Yellow Toner Kit
IU-81                             Imaging Unit (60K images)
FK-81                             Fuser (30K Pages)
OS-81                             Oil Supply Web (15K Pages)
TR-81                             Transfer Roller (80K Pages)
CP-81                             Cleaning Pad
MC-81                             Main Charger

PAGE PRINTER - Parts Catalogue            KYOCERA FS-5900c                                 Page 2
                                                                                                                                                                                           01-001
PAGE PRINTER - Parts Catalogue                                                                                                                                                                                                    01-021




                                                                                               01-031


                                                                                                                                                                                01-004

                                                                                                                            01-032

                                                                                                                                                                                         01-020
                                                                                                                                                                                                    01-004
                                                                                                                                         01-029



                                                                                   01-032                                                                                                                                                    01-021
                                                                                                                                              01-028
                                                                                                                                                                                                                      01-020
                                                                                   01-024                                                                     01-027
                                                                                                                                                                                                                                                      01-006
                                                                                                                                                                       01-005

                                                                                               01-029

                                                                                                                   01-030
                                 Fig.1 - Covers (Back/Left)




                                                                                                                                                  01-025
                                                                                                01-028
KYOCERA FS-5900c




                                                                                                                                                                                                                                                               01-021
                                                                                                                                     01-026




                                                                                                                                                                                                             01-017

                                                                                                                                                                                                    01-019
                                                                                                     01-011
                                                                                                                       01-013
                                                                                                                                                                                             01-018

                                                                                01-012                                                   01-010                                                                                01-021


                                                                                                                                                  01-016

                                                                                                                                                   01-014


                                                                                                                                           01-023




                                                                                                                                                                                                                                           01-007

                                                                                                                                                     01-020
                                                                   01-015                                01-022

                                                                                                                                         01-009
                                                                                            01-002

                                                                                                                                01-020
                                                                       01-014

                                                                                                                  01-008
                                                              01-016
Page 3
Ref No.      Part Code           Description                  Quantity

01-001       5SNSP0012572        Top Cover                           1
01-002       5SNSP0012555        Spring A                            1
01-003       5SNSP0012903        Paper Guide                         1
01-004       5SNSP0012904        Top Cover Retainer                  2
01-005       5SNSP0013429        Left Side Cover                     1
01-006       5SNSP0013432        Upper Rear Cover Assembly           1
01-007       5SNSP0013369        Lower Rear Cover                    1
01-008       5SNSP0012558        Strap                               1
01-009       5SNSA580CE04        Paper Chute Assembly                1
01-010       5SNSP0012486        Left Side Door                      1
01-011       5SNSP0013427        Tray Cover Assembly                 1
01-012       5SNSP0012549        Tray Cover Lever                    1
01-013       5SNSP0012548        Tray Cover Spring                   1
01-014       5SNSP0012559        Left Side Door Hook                 2
01-015       5SNSP0012561        Left Side Door Shaft                1
01-016       5SNSP0012560        E-ring                              2
01-017       5SNSP0013336        T/H Sensor Case                     1
01-018       5SNSP0013398        T/H Sensor Board                    1
01-019       5SNSP0012907        Rivet                               1
01-020       5SNSP0012550        Screw 3 x 8                        10
01-021       5SNSP0013179        Screw 3 x 6                        11
01-022       5SNSP0012551        Screw 3 x 12                        1
01-023       5SNSP0012556        Spring B                            1
01-024       5SNSP0012487        Multi Purpose Tray Holder           1
01-025       5SNSP0013428        MPF Paper Support Assembly          1
01-026       5SNSP0012488        Paper Guide Right                   1
01-027       5SNSP0013333        Paper Guide Left                    1
01-028       5SNSP0012557        Paper Guide Spring                  2
01-029       5SNSP0012552        Rack                                2
01-030       5SNSP0012553        Pinion Gear                         1
01-031       5SNSP0012490        Extension Tray                      1
01-032       5SNSP0012554        Bushing                             2




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5900c               Page 4
                02-025


             02-006
                                  02-005

                                                                                                              02-026
                                              02-024
               02-025



             02-027


               02-025                      02-004

        02-006                                                   02-026
                                  02-005

    02-025                                             02-024                                                           02-022




                         02-027              02-004

                                                          02-024




                                                                                                                                                            02-012

                                                                                      02-026


                                                                02-003                                                                                         02-019

                                                                                            02-024
                                                                          02-023
                                                                                                                                          02-013
                                                                                   02-028                                                                     02-017


                                                                                                                                                     02-019

                                                                   02-001
                                                                                             02-013

                                                                                            02-012


                                                                                                                                 02-018
                                                    02-019
                                                                                                              02-019
                                                                                                     02-016            02-019


                  02-019
                                  02-002




                                                                                                                                                   02-015




                                                                            Fig.2 - Covers (Right/Front)



PAGE PRINTER - Parts Catalogue                                                     KYOCERA FS-5900c                                                                  Page 5
Ref No.      Part Code           Description                   Quantity

02-001       5SNSP0013433        Front Cover Assembly                 1
02-002       5SNSP0012493        Bottom Front Cover                   1
02-003       5SNSP0012908        Magnet Retainer                      1
02-004       5SNSP0012909        Front Cover Hinge Support            2
02-005       5SNSP0012910        Front Cover Hinge                    2
02-006       5SNSP0012911        Hinge Shaft                          2
02-007       5SNSP0012526        Lower Operation Panel Cover          1
02-008       5MVB876SH056        Panel Front                          1
02-012       5SNSP0013180        E-ring                               2
02-013       5SNSP0012913        Bushing                              2
02-015       5SNSP0013368        Paper Exit Tray                      1
02-016       5SNSP0012495        Right Side Front Cover               1
02-017       5SNSP0012496        Right Side Rear Cover                1
02-018       5SNSP0013372        Right Side Lower Cover               1
02-019       5SNSP0013179        Screw 3 x 6                          9
02-022       5SNSP0013184        Screw 3 x 10                         2
02-023       5SNSP0013456        Screw 3 x 8                          1
02-024       5SNSP0012550        Screw 3 x 8                          7
02-025       5SNSP0013186        E-ring                               4
02-026       5SNSP0013187        Screw 3 x 8                          3
02-027       5SNSP0013188        Screw 3 x 5                          4
02-028       5SNSP0012914        Door Reinforcement                   1
02-029       5MVS747CH001        Panel Key English                    1
02-029       5MVS747CH002        Panel Key German                     1
02-029       5MVS747CH003        Panel Key French                     1
02-029       5MVS747CH004        Panel Key Spanish                    1
02-029       5MVS747CH005        Panel Key Italian                    1
02-029       5MVS747CH006        Panel Key Danish                     1
02-029       5MVS747CH007        Panel Key Swedish                    1




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5900c                Page 6
           03-002                                                03-001




                03-021
                                                                                                                                                     03-004
                                  03-022



           03-026                                                                                                                      03-005
                                                                                    03-003
                         03-027

                                                 03-025                                                                                                  03-006

                                                                                                03-010
            03-028                                                                 03-011
                                                                 03-024
                                                                                                                                                         03-007

      03-029




                                                                                                                  03-035
                                                                                                                                                                      03-008
   TR-81
                                                                                                       03-012



                                                                                        03-023                                                  03-035
                                                                                                     03-034              03-022

                                                                                                                03-021
                                                                                                                                       03-036


                                                                                   03-029
                                                                                                                                                     03-012
                                                                                                                                                                                    03-009

                                                                                                                                                                     03-011




                                                                                                                                                                          03-013




                                                                                                                                  03-016




                                                                                                                                                            03-014


                                                                                                                   03-037



                                                                                                                         03-015




                                                                                            03-032

                                                                                                                                           03-031



                                                                                                                   03-018
                                                                                                                                                                                03-017
                                               03-032




                                      03-033

                                                                          03-019                                                                     03-030


                                                        03-020




                                                                     Fig.3 - Paper Feeder



PAGE PRINTER - Parts Catalogue                                       KYOCERA FS-5900c                                                                                         Page 7
Ref No.      Part Code           Description                       Quantity

03-001                           Paper Chute Assembly                     1
03-002                           Paper Chute Opening Adjuster             1
03-003       5SNSP0012916        Bushing                                  1
03-004       5SNSP0013436        Retard Pad Assembly                      1
03-005       5SNSP0012917        Retard Pad Spring                        1
03-006       5SNSP0012918        Retard Pad Platform                      1
03-007       5SNSP0012919        Paper Thickness Select Level             1
03-008       5SNSP0013439        MPT Chute Assembly                       1
03-009       5SNSP0012921        MPT Chute Right Spring                   1
03-010       5SNSP0013326        MPT Chute Left Spring                    1
03-011       5SNSP0012922        Pinch Roller                             4
03-012       5SNSP0012923        Pinch Roller Spring                      2
03-013       5SNSP0012924        MPT/Reg. Senor Cover                     1
03-014       5SNSP0012925        MPT Paper Out Sensor Arm                 1
03-015       5SNSP0012926        Registration Sensor Arm                  1
03-016       5SNSP0013423        MPT Paper Out/Reg Sensor Board           1
03-017       5SNSP0013438        Paper Feed Unit Cover                    1
03-018       5SNSP0013414        Paper Feed Unit Board                    1
03-019       5SNSP0012930        Connector Bracket                        1
03-020       5SNSP0012931        Connector Bracket                        1
03-021       5SNSP0012932        Bushing                                  2
03-022       5SNSP0012933        Registration Spring                      2
03-023       5SNSP0012934        Registration Roller Gear                 1
03-024       5SNSP0012935        Pin                                      1
03-025       5SNSP0012498        Registration Roller                      1
03-026       5SNSP0012936        Bushing                                  2
03-027       5SNSP0013437        Cleaning Roller Holder Assembly          1
03-028       5SNSP0012937        Pressure Roller/Cleaning Roller          1
03-029       5SNSP0012938        Cleaning Roller Spring                   2
03-030       5SNSP0013189        Screw 3 x 14                             1
03-031       5SNSP0013457        Screw 3 x 6                              1
03-032       5SNSP0013184        Screw 3 x 10                             2
03-033       5SNSP0012581        Screw 3 x 8                              2
03-034       5SNSP0012939        Spacer                                   1
03-035       5SNSP0013002        Plastic Washer                           5
03-036       5SNSP0012940        Pinch Roller Shaft                       1
03-037       5SNSP0012941        Resist Senor Cable                       1

TR-81        TR-81               Transfer Unit                            1




PAGE PRINTER - Parts Catalogue      KYOCERA FS-5900c                   Page 8
                                                                           04-044


                                                                                   04-048



                      04-042

                                  04-001


                                            04-002     04-042

                                                                04-003
                                                                                                                                               04-036

                                                                     04-042
                                                                                                           04-004
                04-042

                               04-001


                                                                                                                                                                                          04-049

                                                                                                                                                                                                04-044
                                                           04-010

                                                                                                                         04-009

                                                                                     04-005

                                                                                                                                                             04-003
                                                     04-013
                                                                                                                                                                   04-042
    04-042                                                                                                      04-042

             04-001                                                                                                                                                     04-002
                                   04-042
                       04-019                                                                                          04-011                                                             04-006
                                                                                   04-043                                         04-042
                                                                                                                                                                                                 04-042
                                                 04-018                                                                            04-006
                                                                                                                                                                                                          04-007
                                                                                            04-014
                                                                                                                                              04-042

                                                                                                                                                               04-012

                                                                                                                04-043
                                                                04-020
                                                                                                                                                                        04-042

                                                                                                                                                                                                          04-008
                                                                                                                                      04-015
                                                                                                       04-042

                                                                                                                                                                  04-016

                                                                                                       04-019            04-018
                                                                          04-041                                                                                           04-043

                                                                                                                    04-006
                                                                                                                                                                              04-017
                                                                                      04-022
                                                                                                                                04-042                                               04-043
                                                                          04-045
                                                                                                                                           04-021

                                                                                                                                                      04-042
                                                                                                                                                                        04-023


                                                                                                                                             04-047



                                                                                                                                                    04-024

                                                                                                                                                      04-043
                                                                                                                         04-025                                                  04-027
                                                                                                                                            04-044
                                                                                                                                  04-026                 04-031
                                                                                                                                              04-043
                                                                                                                                                                                    04-028

                                                                                                                                                                                                   04-046


                                                                                                                                                     04-032
                                                                                                                                                                                     04-031
                                                                                                                                                      04-042                                          04-032

                                                                                                                                                                                                      04-030
                                                                                                                     04-001
                                                                                                                                                               04-042                                              04-029

                                                                                                       04-033



                                                                                                                                                    04-041




                                                                04-035
                                                                                                           04-043

                                                                     04-026                   04-034


                                                                                                                                                                            04-040
                                                                         04-043
                                 04-038


                                            04-037        04-044
                                                                                                                                                                                             04-039




                                                                                      Fig.4 - Paper Feeder



PAGE PRINTER - Parts Catalogue                                                       KYOCERA FS-5900c                                                                                                       Page 9
Ref No.      Part Code           Description                       Quantity

04-001       5SNSP0012942        Bushing                                  4
04-002       5SNSP0012943        Cam                                      2
04-003       5SNSP0012944        Pickup guide Roller                      2
04-004       5SNSP0013446        Pickup Roller Assembly M.P.T.            1
04-005       5SNSP0012945        Pin                                      4
04-006       5SNSP0012946        Bushing                                  3
04-007       5SNSP0012947        Gear                                     1
04-008       5SNSP0012519        STR Sensor Arm                           1
04-009       5SNSP0012948        M.P.T. Roller Shaft                      1
04-010       5SNSP0012499        Registation Roller                       1
04-011       5SNSP0012949        Registation Roller Gear                  1
04-012       5SNSP0012500        Registation Roller Clutch                1
04-013       5SNSA580CE51        STR Holder Assembly Left                 1
04-014       5SNSP0012950        STR Holder Shaft                         1
04-015       5SNSA580CE52        STR Holder Assembly Right                1
04-016       5SNSP0012951        STR Gear                                 1
04-017       5SNSP0012952        Gear                                     1
04-018       5SNSP0012953        Spring                                   2
04-019       5SNSP0012954        STR Cam                                  2
04-020       5SNSP0012955        STR Cam Shaft                            1
04-021       5SNSP0012520        STR clutch                               1
04-022       5SNSP0012956        M.P.T. Holder Guide                      1
04-023       5SNSP0012957        Gear                                     1
04-024       5SNSP0012958        Gear                                     1
04-025       5SNSP0012959        Gear                                     1
04-026       5SNSP0012960        Gear                                     2
04-027       5SNSP0012961        Motor Bracket Paper Feed Unit            1
04-028       5SNSP0013352        Motor Paper feed Unit                    1
04-029       5SNSP0013443        Clutch Assembly Paper Feed Unit          1
04-030       5SNSP0012962        Bushing                                  1
04-031       5SNSP0012502        Pickup Roller Rubber                     2
04-032       5SNSP0012503        Pickup Roller                            2
04-033       5SNSP0012963        Gear                                     1
04-034       5SNSP0012964        Gear                                     1
04-035       5SNSP0012965        Gear                                     1
04-036       5SNSP0012966        Paper Feed Roller                        1
04-037       5SNSP0013312        Joint Gear                               1
04-038       5SNSP0012968        Gear Guide Roller                        1
04-039       5SNSP0012521        Paper Out Sensor Arm                     1
04-040       5SNSP0012522        Paper Empty Sensor Arm                   1
04-041       5SNSP0012969        Pin                                      2
04-042       5SNSP0013180        E-ring                                  17
04-043       5SNSP0013191        E-ring                                   9
04-044                           E-ring                                   4
04-045       5SNSP0013188        Screw 3 x 5mm                            1


PAGE PRINTER - Parts Catalogue     KYOCERA FS-5900c                   Page 10
Ref No.      Part Code           Description          Quantity

04-046       5SNSP0013190        Screw 3 x 6mm               2
04-047       5SNSP0013193        Screw 3 x 6mm               1
04-048       5SNSP0012970        Bearing                     1
04-049       5SNSP0012971        Bearing                     1




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5900c      Page 11
                   05-002




                                 05-001




        05-008                                                 05-003




          05-009                                                                    05-006




                                                                                          05-004




                                                    05-006




                                                                                 05-005
                                                                        05-007
                                          05-006




                                           05-006




                                          Fig.5 - Power Supply Unit



PAGE PRINTER - Parts Catalogue                KYOCERA FS-5900c                             Page 12
Ref No.      Part Code           Description          Quantity

05-001       5SNSP0013415        Power Supply                1
05-002       5SNSP0013406        Power Supply Frame          1
05-003       5SNSP0013375        Sheild Cover                1
05-004       5SNSP0012974        Fan Motor Bracket           1
05-005       5SNSP0012504        Fan Motor                   1
05-006       5SNSP0013190        Screw 3 x 6                13
05-007       5SNSP0013194        Screw 3 x 25                2
05-008       5SNSP0013450        Fuse (F201)                 1
05-009       5SNSP0013451        Fuse (F203)                 1




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5900c      Page 13
                     06-012
                                                                                       06-012




                                                                                                06-001




                                          06-006
     06-012




                                                      06-005




                                 06-013



06-002




                                                                                                              06-005


                                                                                                                                06-004




                       06-007




                                                                                                                                         06-012
                                                                                                                       06-003
                                                                    06-008




                                                                                                           06-012

                        06-009


                                                                              06-010




                                                   06-012                                                     06-011




                                                                                                  06-012
                    06-012




                                                   Fig.6 - Paper Eject Unit



  PAGE PRINTER - Parts Catalogue                    KYOCERA FS-5900c                                                                     Page 14
Ref No.      Part Code           Description                  Quantity

06-001       5SNSP0013430        Unit Inner Cover                    1
06-002       5SNSP0012578        Solenoid Side Cover                 1
06-003       5SNSP0012571        Motor Side Cover                    1
06-004       5SNSP0012567        Spring D                            1
06-005       5SNSP0012568        Spacer                              2
06-006       5SNSP0012564        Spring C                            1
06-007       5SNSP0012566        Cover Spring B                      1
06-008       5SNSP0012565        Cover Spring A                      1
06-009       5SNSP0013431        Face Down Cover                     1
06-010       5SNSP0012570        Paper Tray Full Sensor Arm          1
06-011       5SNSP0013367        Unit Cover                          1
06-012       5SNSP0012581        Screw 3 x 8                        16
06-013       5SNSP0012562        Screw 3 x 8                         1




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5900c              Page 15
         07-035




07-005




         07-044

                      07-002

                                        07-001                                                                  07-041




                                                   07-002
                                                                                         07-005                                        07-007
                                                        07-003

                                                                      07-004

                                                                           07-035
                                                                                     07-006

                                                                                                  07-035




                                                                                                                     07-008
                             07-039

                                                       07-028




                             07-038                                                                                                                                        07-009
                                                                  07-032                                                                                                               07-010
                                                                                                   07-027


                    07-039                07-029
                                                                                                                                                  07-026                                         07-011
                                                                                                                                       07-002
                                                                 07-029

                                                                      07-030
                                                                                                                                              07-035            07-012
                                                                                                                                                                                                 07-013

                                      07-031
                                                                                                                                                                                                 07-037
                                                                                                                                       07-038
                                                                                                                                                                                      07-036

07-036
                                                                                                                                                                                                07-014




                                                                                                                                                                                       07-041

                  07-034                                                                                                                                                                             07-015


                                                                                                                                                            07-005

         07-033



                                                                                                                                                                07-029
                                                                                                                07-023               07-025
                                                                                                                                                                             07-016
                                                                                                                           07-024                  07-035

                                                                                                            07-043                                                                      07-039
                                                                                                                              07-042


                                                                                                       07-022
                                                                                                                                                                         07-039


                                                                                                                                                                                                     07-040




                                                                                                                  07-039




                                                                                                                 07-018


                                                                                                                            07-020                     07-019



                                                                                                                                                                  07-040




                                                                               Fig.7 - Toner Cartridge Selector



   PAGE PRINTER - Parts Catalogue                                                   KYOCERA FS-5900c                                                                                             Page 16
Ref No.      Part Code           Description                             Quantity

07-001       5SNSP0013311        Toner Selector Shaft                           4
07-002       5SNSP0012978        Pin                                            8
07-003       5SNSP0012979        Pin                                            4
07-004       5SNSP0012980        Toner Selector Cam                             4
07-005       5SNSP0012981        Bushing                                        9
07-006       5SNSP0012982        Toner Selector Cam Gear                        4
07-007       5SNSP0013337        Upper Paper Ejection Guide                     1
07-008       5SNSP0013338        Face Down Switch Gate                          1
07-009       5SNSP0012985        Gear                                           1
07-010       5SNSP0012986        Joint Gear Spring                              1
07-011       5SNSP0012987        Gear                                           1
07-012       5SNSP0012988        Joint Gear Shaft                               1
07-013       5SNSP0012989        Joint Gear Bracket                             1
07-014       5SNSP0013343        Relay Cable Bracket                            1
07-015       5SNSP0013364        Cable                                          1
07-016       5SNSP0013332        Cam Motor Bracket                              1
07-017       5SNSP0012993        Plastic Washer                                 4
07-018       5SNSP0012994        Cam Shaft                                      4
07-019       5SNSP0012484        Cam Motor                                      4
07-020       5SNSP0013416        Cam Motor Board with Motor                     1
07-021       5SNSP0013417        Toner Cartridge Movement Sensor Board          1
07-022       5SNSP0013315        Cam Gear                                       4
07-023       5SNSP0012998        Gear                                           1
07-024       5SNSP0012999        Gear                                           1
07-025       5SNSP0013000        Gear                                           1
07-026       5SNSP0013334        Switch Back Arm                                1
07-027       5SNSP0013001        Switch Back Shaft                              1
07-028       5SNSA580CE07        Solenoid Assembly                              1
07-029       5SNSP0013002        Plastic Washer                                 1
07-030       5SNSP0013003        Bushing                                        1
07-031       5SNSP0013004        Spring                                         1
07-032       5SNSP0013005        Switch Back Arm                                1
07-033       5SNSP0012524        Release Lever                                  1
07-034       5SNSP0013006        Spring                                         1
07-035       5SNSP0013191        E-ring                                        17
07-036       5SNSP0012560        E-ring                                         2
07-037       5SNSP0013180        E-ring                                         1
07-038       5SNSP0013195        E-ring                                         2
07-039       5SNSP0013190        Screw 3 x 6                                    7
07-040       5SNSP0013196        Screw 3 x 8                                    5
07-041       5SNSP0012581        Screw 3 x 8                                    1
07-042       5SNSP0013007        Nut                                            4
07-043       5SNSP0013197        Screw 26 x 5                                   8
07-044       5SNSP0013008        Developer Cam                                  4




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5900c                         Page 17
                                                             08-026
                                                                                        08-003




                                                    08-003                                                  08-001

                                                                                                                                         08-026


                                                                                                   08-026
                                                                        08-002                                                                     08-007



                                                                                                                     08-008
                                                                                       08-027                                                                08-004

                                                                                                                          08-004                                      08-005

                                                                                                                                        08-006


                                                               08-025
                                                                                                                                                   08-026



                                                          08-025

                                                                                     08-027                                                         08-027

                             08-017
                                                                            08-010
                        08-016

               08-019                 08-019
                                                                           08-011


                                               08-018                                                                    08-025



 08-027
                                                                                                                               08-025




                                                                                                                                08-012




                                                                                              08-013
08-026




                                                                                                                      08-014


                                                                                                                                                                                    08-019

                                                                                        08-015

              08-027



                                                                                                 08-009


                                                                                                                                                                 08-027

                                                                                                                                          08-026

              08-024                             08-027



                                                                                                                          08-022
                                                                                                                                 08-021




                                                                                 Fig.8 - Face Down Unit



         PAGE PRINTER - Parts Catalogue                                           KYOCERA FS-5900c                                                                             Page 18
Ref No.      Part Code           Description                    Quantity

08-001       5SNSP0013320        Paper Ejection Roller                 1
08-002       5SNSP0013323        Paper Ejection Roller                 1
08-003       5SNSP0013011        Bushing                               2
08-004       5SNSP0013012        Bushing                               2
08-005       5SNSP0013013        Gear                                  1
08-006       5SNSP0013014        Gear                                  1
08-007       5SNSP0013015        Pin                                   1
08-008       5SNSP0013016        Pin                                   1
08-009       5SNSP0013421        Jam A/D SW PWB                        1
08-010       5SNSP0013017        Stopper Shaft                         1
08-011       5SNSP0013018        Supporter Shaft                       1
08-012       5SNSP0013339        Lower Paper Ejection Guide            1
08-013       5SNSP0013418        Paper Exit Sensor Arm                 1
08-014       5SNSP0013353        Guide Roller                          4
08-015       5SNSP0013354        Guide Roller Spring                   4
08-016       5SNSP0013340        Paper Ejection Sensor Arm             1
08-017                           Spring                                1
08-018       5SNSP0013455        Plastic Washer                        1
08-019       5SNSP0013385        Paper Exit Sensor Board               1
08-020       5SNSP0013023        Cable                                 1
08-021       5SNSP0012538        Roller                                4
08-022       5SNSP0012539        Spring                                4
08-023       5SNSA580CE19        Paper Tray Full Sensor Board          1
08-024       5SNSP0013024        Hook Shaft                            1
08-025       5SNSP0013180        E-ring                                4
08-026       5SNSP0013191        E-ring                                8
08-027       5SNSP0013190        Screw 3 x 6                          10
08-028       5SNSP0012562        Screw 3 x 8                           4




PAGE PRINTER - Parts Catalogue     KYOCERA FS-5900c                Page 19
PAGE PRINTER - Parts Catalogue

                                                                                                                                                                                             09-027
                                                                                                                                                                                                                                                                       09-028
                                                                                                                                                                                                                                               09-029
                                                                                                                                                                                                                         09-028
                                                                                                                                                                                                                                                                        09-001

                                                                                                                                                                                                                                                                                    09-027
                                                                                                                                                                                                                    09-027                           09-023



                                                                                                                                                                                                                                                                                                09-002
                                                                                                                                                                                  09-031                                                                                                                   09-027


                                                                                                                                                                                  09-025                                  09-022

                                                                                                                                                                                   09-026
                                                                                                                                      09-027              09-027
                                                                                                                                                                                   09-030                               09-024
                                                                                                                                               09-017




                                                                                                                                                                                                                                                                                             09-020
                                 Fig.9 - Upper/Right/Left Side Parts
KYOCERA FS-5900c




                                                                                                                                                                                                                                                                                              09-033




                                                                                                                                                                                        09-027
                                                                                                                                                 09-033

                                                                                                                                                                                                 09-013
                                                                                                                             09-027                                  09-015                           09-027
                                                                                                                                                                 09-016                                                                                                                      09-027

                                                                                                                                                           09-033
                                                                                                                                                                                                                                                                                                  09-003
                                                                                                                                                                      09-032
                                                                                                                                                             09-027

                                                                                   09-019                                                                           09-014                                     09-011




◦ Jabse Service Manual Search 2022 ◦ Jabse PravopisonTap.bg ◦ Other service manual resources online : FixyaeServiceinfo
