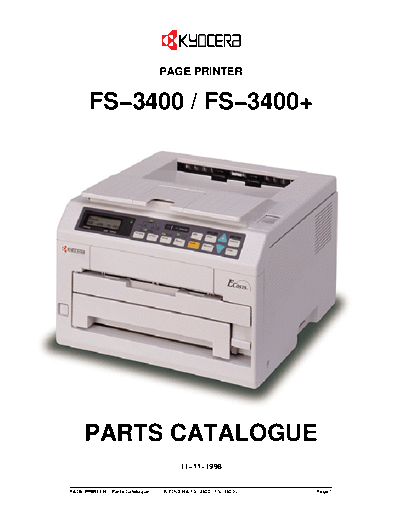

Image preview - the first page of the document
>> Download Kyocera FS-3400 Parts Manual documenatation <<
Text preview - extract from the document
PAGE PRINTER
FS-3400 / FS-3400+
PARTS CATALOGUE
11-11-1998
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 1
FS-3400 / FS-3400+ Parts Catalogue
Table of Contents
Covers (Fig.1) 3
Frame Unit (Fig.2) 5
Drive Frame Unit (Fig.3) 7
Controller Unit (Fig.4) 10
Feed Transfer Unit (Fig.5) 12
Fuser Unit (Fig.6) 15
Face Down Unit (Fig.7) 18
Drum Unit (Fig.8) 20
LED Head Unit (Fig.9) 23
Developer Unit (Fig.10) 25
Introduction
The figures which follow depict the major assemblies of the printer or option,
broken down into components. Following each figure are the list giving the
following information:
'Ref No.' Reference number which corresponds to the parts in the figure
'Part code' Part code which identifies the part
'Part description' A brief description of the part
'Quantity' Quantity of the part used in the printer or option
Only the parts highlighted in BOLD should be ordered. All other parts are for
reference only and are not stocked.
Consumables and Maintanence Kits
TK-12 Toner Kit
G-2 Grid Cleaner
MK-4 Maintenance Kit (300K pages)
Drum
Developer
Fuser
Drive Assy
Feed Trans Assy
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 2
01-013
PAGE PRINTER - Parts Catalogue
01-012
02-030
01-005
01-015 01-016
02-050
01-001
KYOCERA FS-3400 / FS-3400+
Fig.1 - Covers
01-022
01-006
05-000
01-017 01-008
01-009
01-007
01-003
01-002
01-004
01-018
Page 3
Ref No. Part Code Description Quantity
01-001 5AAFZ1550E*1 KEY BOARD ASSY(FS-3400) 1
01-001 5AFZ1550NE1 KEY BOARD ASSY(FS-3400+) 1
01-002 5MVB886SH041 COVER FRONT A (FS-1550) 1
01-002 5MVB886SH042 COVER FRONT A (FS-1550A) 1
01-003 5MVX852SH003 LID COVER FRONT 1
01-004 5MVB886SH035 COVER RIGHT 1
01-005 5MVB886SH046 COVER LEFT 1
01-006 5MVX842SH003 ROD SW POWER 1
01-007 5MMW361LD006 SPRING POWER 1
01-008 5MVM276SB002 CAP PRESS COVER 1
01-009 5MMW361LD005 SPRING PRESS COVER 1
01-010 5MVVS3400E*1 SER. NO. PLATE (FS-1550) 1
01-010 5MVVS3499A*1 SER. NO. PLATE (FS-1550A) 1
01-012 5MVX885SH003 TRAY FACE UP 1
01-013 5MVL664SH001 STOPPER PAPER FU 1
01-014 5MVS668SH005 STOPPER PAPER FD 1
01-015 5AAVTRAY*003 MANUAL TRAY ASSY 1
01-016 5AAVCLEAN037 CLEANER ASSY 1
01-017 5AAPRZZG2010AH PWB ASSY (ENV) 1
01-018 PC7-A4 CASSETTE A4 ASSY 1
01-018 PC7-LTR CASSETTE LTR ASSY 1
01-022 5MVVL411WN21 LABEL CLEANER 1
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 4
07-000
PAGE PRINTER - Parts Catalogue
02-026
02-037
02-047
02-006
02-032
02-005
02-044 02-045
KYOCERA FS-3400 / FS-3400+
02-024
02-043 02-013
Fig.2 - Frame Unit
02-003
02-007
02-048 02-010
02-004 02-008
02-014
02-025
02-015
02-030
02-021
02-052 02-040
02-038 04-024
02-031
02-018
Page 5
02-019 04-008 04-005
02-022
02-020
02-021
Ref No. Part Code Description Quantity
02-002 5MMU211SD007 CASE STOPPER 2
02-003 5MMF265SN001 PIN HINGE 1
02-004 5MVX874CB001 FRAME LEFT 1
02-005 5MVX221CB003 HOLDER THERMISTOR 1
02-006 5AAXTM007GEA THERMISTOR ASSY 1
02-007 5MMU411LD001 PLATE RECEPTACLE A 1
02-008 5AAXRD012GEA HIGH MEG R ASSY 1
02-010 5MMU311LD002 PLATE EARTH SPRING 1
02-013 5MMX864SL009 CHANNEL FRONT UP 1
02-014 5MVX843SB003 LATCH COVER 1
02-015 5MMW261LD007 SPRING LATCH 1
02-018 5MVX866SH009 CHANNEL FRONT LOW 1
02-019 5MMT876SN039 ROLLER MANUAL UP C 1
02-020 5MVX322SB012 ACTUATOR MANUAL 1
02-021 5MVM176DN009 BEARING 2
02-022 5EYYAFAAQ01**02 CLUTCH FEED 1
02-024 5MVX644SG001 LOCK DLP 1
02-025 5MMX332LD006 PLATE DLP 1
02-026 5AACCNNP4GEA CONN CORD S00954 1
02-029 5AACCNHY2GEA LEFT FRAME S00557 1
02-030 5AAPRPWC1004BH AC PWB ASSY (240V) 1
02-030 5AAPRPWC1004FH AC PWB ASSY (120V) 1
02-031 5AAPRSSCC1006DH Manual Feed PWB ASSY 1
02-032 5AAPRSSC1010AH Sencor PWB ASSY 1
02-037 5AAXTR032VDA TRANS ASSY 1
02-038 5MML121LD003 PLATE EARTH EF 2
02-040 5AACCNNN0GEA CONN. CORD 1
02-042 5AACCNNG4GEA CONN CORD S00934 1
02-043 5AACCNNK9GEA CONN CORD S00947 1
02-044 5MVS321KF016 SHEET FRAME A 1
02-045 5MVS321KF017 SHEET FRAME B 1
02-046 5MVS551KF003 SHEET PWB HV 1
02-047 5MVS322EF002 SEAL THERMISTOR 1
02-048 5MMW261LD009 SPRING SEPARETOR 1
02-050 5AAXCB001GEA COUNTER ASSY 1
02-052 5MVS331KC003 SHEET EF 2
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 6
03-052
PAGE PRINTER - Parts Catalogue
03-040
03-050
03-051 03-030
03-049 03-042
03-013
03-029
03-027
03-043
03-003 03-008 03-036
03-005
03-007
03-004 03-034 03-011
KYOCERA FS-3400 / FS-3400+
03-031 03-024 03-002
03-009
03-006
Fig.3 - Drive Frame Unit
03-021
03-012
03-038
03-028
03-005
03-033
03-004
03-020
03-035 03-034
03-022 03-037
03-010 02-029
03-039
03-016 03-014
03-015
03-023
03-017
03-026
03-019
03-018
03-025
Page 7
03-041
Ref No. Part Code Description Quantity
03-000 5AAY3400E*12 DRIVE ASSY 1
03-000 5AAY3400E*27 DRIVE GEAR PACK 1
03-002 5MMX873SL005 PLATE DRIVE B 1
03-003 5MMX532SL007 PLATE RE JOINT 1
03-004 5MMW261LD006 SPRING JOINT 2
03-005 5MVG138DB021 GEAR JOINT Z28 2
03-006 5MVG137DB024 GEAR CLUTCH Z22 1
03-007 5MVM190RB015 BELT DRIVE 1
03-008 5AAVGEAR *016 GEAR Z57P-Z20H ASSY 1
03-009 5AAVGEAR*017 GEAR Z45H-Z24H ASSY 1
03-010 5AAVGEAR*018 GEAR Z59H-Z24H ASSY 1
03-011 5MVG138DB022 GEAR FREE Z27 1
03-012 5MMW361LD004 SPRING FREE 1
03-013 5MVG148DB017 GEAR DRUM Z34H 1
03-014 5MVG158DB010 GEAR REG Z45H-Z45S 1
03-015 5MVG148DN011 GEAR Z40H-Z21S 1
03-016 5MVG138DB044 GEAR DLP Z28H 1
03-017 5MVG148DB030 GEAR Z38S 1
03-018 5MVG138DB049 GEAR Z24 1
03-019 5MVG137DB025 GEAR M FEED Z25 1
03-020 5MVG158DB011 GEAR Z25S-Z24H 1
03-021 5MMX532SL008 PLATE FE JOINT 1
03-022 5MVG138DB024 GEAR CLUTCH Z29 1
03-023 5MMS766SL007 PLATE DRIVE C 1
03-024 5MVG138DB040 GEAR FREE Z27H 1
03-025 5MVX773DB002 SPACER GEAR 1
03-026 5MVX632DB002 HOLDER CLUTCH 1
03-027 5MVG058DB003 GEAR IDLE H45-Z45 1
03-028 5MVM176DB008 BUSHING STOP 1
03-029 5MVM122DB022 PULLEY CASE 2
03-030 5MMT263SZ016 PIN STUD 2
03-031 5MMM176CJ005 BUSHING SBK 1
03-033 5MVM166AN001 COLLAR 1
03-034 5MBWK61805NN POLY SLIDER 6
03-035 5MMT565SN001 SHAFT CLUTCH 2
03-036 5MVG148XN004 GEAR FUSER Z34 1
03-037 5AAXMT016GEA MOTOR MAIN 1
03-038 5EYYAFAAK01**03 CLUTCH REGIST 1
03-039 5EYYAFAAQ01**03 CLUTCH FEED 1
03-040 5MMX543SL004 PLATE DRIVE D 1
03-041 5AAPRIFC1007AH Interconnect PWB ASSY 1
03-042 5EZNF2402501*03 FAN MOTOR 1
03-043 5MVS662KF005 SEAL FAN 1
03-049 5MVG147DB009 GEAR TC Z24-Z32 1
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 8
Ref No. Part Code Description Quantity
03-050 5MMX863SL005 PLATE DRIVE A 1
03-051 5MVQ221RF018 SEAL FRAME R2 1
03-052 5MVQ221RF017 SEAL FRAME R1 1
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 9
PAGE PRINTER - Parts Catalogue 04-031
04-016
04-017
04-018
04-022
04-020
04-011
04-012 04-013
KYOCERA FS-3400 / FS-3400+
Fig.4 - Controller Unit
04-007
04-011
04-003
04-009
04-032
04-006
04-033
04-019
Page 10
04-004
04-001
04-004
Ref No. Part Code Description Quantity
04-001 5AAVBOX**003 BOX ASSY 1
04-003 5MVX732SL002 RAIL PWB MAIN 1
04-004 5MVM160RB025 FOOT 4
04-005 5MMS886SL008 LID CONTROLLER 1
04-006 5MMS846SL003 PANEL REAR 1
04-007 5MVS775CC001 SHEET PWB POWER 1
04-008 5MVS532KF002 SHEET TRANS 1
04-009 5MML222SD005 HOLDER MAIN 1
04-011 5MVM266SB003 PULL KNOB 2
04-012 5MVB422SB003 BRACKET CONN F 1
04-013 5MMS646SD007 PLATE CONNECT 8N 1
04-015 5AACCNHW6GEA CONN. CORD S00541 1
04-016 5AAEZ3600E*1 SWITCHING REGURATOR (240V) 1
04-016 5AAEZ3600A*1 SWITCHING REGURATOR (120V) 1
04-017 5AACCNNF6GEA CONN CORD S00926 1
04-018 5AACCNNF7GEA CONN CORD S00927 1
04-019 5AAPRLGG4025AH MAIN LOGIC P.W.B. (FS-3400) 1
04-019 5AAPRLGG4026BH MAIN LOGIC P.W.B. (FS-3400+) 1
04-020 5AAPRCZR2002EH ENGINE PWB ASSY (240V) 1
04-020 5AAPRCZR2002FH ENGINE PWB ASSY (120V) 1
04-022 5AAPRZZG4010AH FUX PWB ASSY (FS-1550) 1
04-022 5AAPRZZG4012AH FUX PWB ASSY (FS-1550+) 1
04-024 5MVS636VB003 SHEET ENGINE ROM 1
04-027 5MVS621KF009 SHEET BOX 1
04-030 5MVQ611RX009 EMI GASKET 2
04-031 5MVX744DB001 ACTUATOR CASS SIZE 1
04-032 5EZNF0509001*01 FAN MOTOR 1
04-033 5MVS447XF001 SEAL BOX FAN 1
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 11
05-014
05-072
05-013 05-055
05-043
05-069
PAGE PRINTER - Parts Catalogue
05-045
05-063
05-037 05-067
05-061
05-003
05-036 05-044 05-062
05-027
05-001
05-045
05-067
05-049
05-077 05-060
05-042 05-052
05-004
05-037
05-032
05-080
05-012
KYOCERA FS-3400 / FS-3400+
05-038
Fig.5 - Feed Transfer Unit
05-040 02-002
02-002
05-050
05-020
05-028
05-042
05-002
05-034
05-016
05-015
05-021 05-024
05-015
05-016
05-019
05-041
Page 12
05-039
05-023
05-033
05-033
05-057
05-017
05-056
05-018
Ref No. Part Code Description Quantity
05-000 5AAY3400E*22 PAPER FEED UNIT 1
05-001 5MMT876SN033 ROLLER REGIST A 1
05-002 5MVG137DB029 GEAR REGIST Z24-Z32 1
05-003 5MMT821SN002 ROLLER REGIST UP 1
05-004 5MVG137DB028 GEAR REGIST Z24 1
05-012 5MMX532LD004 PLATE EARTH CONTACT 1
05-013 5MVX852SH002 GUIDE PAPER A 1
05-014 5MVX722SH003 SENSOR DOC 1
05-015 5MVG138DB029 GEAR IDLE Z26 2
05-016 5MVM121DB001 COLLAR JOINT 2
05-017 5MVG038DB002 GEAR FEED Z27 1
05-018 5MVX655SX001 LEVER LOCK 1
05-019 5MVX711DB002 LINK LOCK 1
05-020 5MVB886SH033 LOWER CASE 1
05-021 5MVX322DN002 GUIDE PAPER B 2
05-023 5MBWK54E08SZ FLAT S WASHER 1
05-024 5MVX431DB003 HINGE LOCK R 1
05-027 5MVS822KF006 SHEET REGIST C 1
05-028 5MMW167LD002 SPRING HING R 1
05-032 5MVX842SB008 SHAFT RELEASE 1
05-033 5MVM177DB008 BUSH FEED 2
05-034 5MVM410DB001 HOLDER ROLLER FEED 1
05-036 5MMT733SN002 SHAFT MANUAL FEED 1
05-037 5MVM460DB001 ROLLER IDLE 4
05-038 5MMW255LD003 SPRING MANUAL 2
05-039 5MVX641CB001 ACTUATOR CASSETTE A 1
05-040 5MVX321SB012 ACTUATOR CASSETTE B 1
05-041 5AAVROLL*027 FEED ROLLER ASSY 1
05-042 5MVM122DB003 BUSH POM 2
05-043 5MVX322DB012 BUSH TRANSFER L 1
05-044 5MVX321DB009 BUSH TRANSFER R 1
05-045 5MMW354LD001 SPRING BUSH A 2
05-049 5MMU222SD002 BRACKET JOINT GEAR 1
05-050 5MMW166LD006 SPRING BRACKET 1
05-052 5MMT243SZ005 BPIN RACKET A 1
05-055 5MMU862SZ012 PLATE EARTH 1
05-056 5MMT866SN019 SHAFT GUIDE 1
05-057 5MVM687DB001 ROLLER GUIDE 4
05-060 5MVX821CB002 GUIDE PAPER LOW 1
05-061 5MVM276DB007 COUPLING JOINT 1
05-062 5MVG132DB002 GEAR TC 1
05-063 5MVM176DB009 BUSH TRANSFER 1
05-067 5MMM276CJ001 METAL BUSH REGIST 2
05-069 5MMW172LD008 SPRING REGIST L 1
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 13
Ref No. Part Code Description Quantity
05-072 5AAY1500E*58 ROLLER TRANSFER ASSY 1
05-077 5MMW172SX005 SPRING REGIST R 1
05-080 5MVS552KF006 SHEET COVER GEAR 1
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 14
06-037
06-034 06-016
PAGE PRINTER - Parts Catalogue
06-025
06-042
06-040
06-044 06-018
06-006 06-017
06-029
06-015
06-014
KYOCERA FS-3400 / FS-3400+
06-010
06-032
06-039
Fig.6 - Fuser Unit
06-012
06-026 06-005
06-045
06-002
06-041 06-008
06-027 06-036 06-033 06-004
06-013
06-028
06-043
06-038 06-010
06-016 06-005
06-003 06-004
06-035
06-031
06-009
06-001 06-022
Page 15
06-011 06-019
06-021
06-020
06-036
06-030 06-007
06-009
06-035
06-023
Ref No. Part Code Description Quantity
06-000 FK-54 FUSER UNIT(5PLPZMAAPKE) 240V 1
06-000 FK-54 FUSER UNIT (5PLPZMBAUK1) 120V 1
06-001 5MMT888AX007 ROLLER HEAT 1
06-002 5MMT886SN010 ROLLER PRESS 1
06-003 5MMB866SL013 FRAME FUSER 1
06-004 5MMS627SL002 PLATE PRESS 2
06-005 5MMW251LD008 SPRING PRESS 2
06-006 5MVX842NB002 GUIDE THERMAL 1
06-007 5MVB653XB001 COVER FUSER R 1
06-008 5MVB663XB002 COVER FUSER L 1
06-009 5MVM188XN006 BUSHING HEAT C 2
06-010 5MVM166XN001 BUSHING PRESS 2
06-011 5MVX833XB002 GUIDE ENTRANCE 1
06-012 5MVX865SH001 GUIDE FU 1
06-013 5MVM176DB006 BUSHING POM 1
06-014 5MVX332XN003 SEPARATOR 4
06-015 5MMW241LD003 SPRING SEPARATOR 4
06-016 5MMT874SN003 ROLLER EXIT 1
06-017 5MVM174DB002 PULLEY EXIT 3
06-018 5MMW251LD016 SPRING PULLEY 2
06-019 5MMX542SL004 PLATE RELEASE R 1
06-020 5MVG148NN003 GEAR HEAT Z35 1
06-021 5MVG138XN007 GEAR JOINT Z26 1
06-022 5MVG137DB026 GEAR IDLE Z21 1
06-023 5MVG127DB018 GEAR EXIT Z16 1
06-025 5MVX833XB001 GUIDE EXIT UP 1
06-026 5MMX633RD001 HOLDER LAMP R 1
06-027 5MMX321RD005 HOLDER LAMP L 1
06-028 5MVX732CB001 ACTUATOR JAM 1
06-029 5MMX732RD002 PLATE CORD 1
06-030 5MMM176CJ005 BUSHING SBK 1
06-031 5MVX832XB001 GUIDE EXIT 1
06-032 5MMC852SL001 STAY FUSER 1
06-033 5MMX542SL003 PLATE RELEASE L 1
06-034 5MMT733SN001 SHAFT EXIT 1
06-035 5MMW172SB001 RING STOP 2
06-036 5MMT143SZ010 STUD SCREW SL 2
06-037 5MVVL721WN29 LABEL FUSER CAUTION 1
06-038 5EZPB2413320102 LAMP HEATER (240V) 1
06-038 5EZPB1216720102 LAMP HEATER (120V) 1
06-039 5EYFFQ18201**01 THERMOSTAT 1
06-040 5AAXTM008GEA THERMISTOR ASSY 1
06-041 5AAPRIFC1003CH Fuser PWB ASSY 1
06-042 5MVB322XB001 CAP FUSER 1
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 16
Ref No. Part Code Description Quantity
06-043 5AACCNNN1GEA CONN CORD S00951 1
06-044 5MMC831LD001 BRACKET FUSER 1
06-045 5MMF265SN001 PIN HINGE 1
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 17
01-014 07-025
PAGE PRINTER - Parts Catalogue
07-015
07-017
07-016
07-022
KYOCERA FS-3400 / FS-3400+
07-014 07-008
Fig.7 - Face Down Unit
07-023
07-012
07-003
07-005
07-020
07-014
07-018
07-013
07-001
07-002 07-024
Page 18
07-011
07-007
07-009
07-006
07-004
07-010
Ref No. Part Code Description Quantity
07-000 5AAY1550E*53 FACE DOWN UNIT 1
07-001 5MVX853SH001 GUIDE FD 1
07-002 5MVX831CB001 GUIDE CHANGE 1
07-003 5MVT873CB001 SHAFT FD 1
07-004 5MMX653SL008 PLATE HINGE R 1
07-005 5MMX663SL007 PLATE HINGE L 1
07-006 5MVX311DB006 ACTUATOR SOL 1
07-007 5MMW261LJ032 SPRING SOL 1
07-008 5MVS825XF001 BRUSH DISCHARGE 1
07-009 5MVG138DB020 GEAR FD Z30 2
07-010 5MMX632SL006 PLATE FD JOINT 1
07-011 5MVG127DB018 GEAR EXIT Z16 1
07-012 5MVM176DN009 BEARING 2
07-013 5MMW161LJ035 SPRING EARTH FD 1
07-014 5MVM320RB001 EXIT TYRE 1
07-015 5MVB887SH026 COVER TOP 1
07-016 5MVN260SH001 KNOB RELEASE 1
07-017 5MMW266LD002 SPRING KNOB 1
07-018 5MMX821SL001 PLATE BRUSH FD 1
07-020 5MVS825XF002 BUSH DISCHARGER FD 1
07-022 5MVM273DB002 PULLEY FD 2
07-023 5MMX322LD007 BRACKET PULLEY FD 2
07-024 5EZSA2401020304 SOLENOID TDS-KN07A 1
07-025 5MVVL732WN13 LABEL DIAGRAM 1
PAGE PRINTER - Parts Catalogue KYOCERA FS-3400 / FS-3400+ Page 19
08-001
PAGE PRINTER - Parts Catalogue
08-015
08-014
08-013
08-051
08-046
08-009
08-056
08-010
KYOCERA FS-3400 / FS-3400+
08-057
08-021
Fig.8 - Drum Unit
08-030
08-050
08-023
08-044
08-035 08-052 08-012
08-011
08-032
08-043
08-029
08-034
08-036
08-024
08-019
08-055
08-017
08-034
08-047
08-028
Page 20
08-016
08-053
08-045
08-042
08-033
08-037
08-027 08-041
08-047 08-038
08-031 08-022
Ref No. Part Code Description Quantity
08-000 DK-54 DRUM KIT(5PLPZLWAPKE) 240V 1
08-000 DK-54 DRUM KIT(5PLPZLXAPKE) 120V 1
08-001 5AAY1550E*47 MCH ASSY 1
08-009 5MVB865CB004 FRAME DRUM UP 1
08-010 5MMX432LD004 PLATE ZENNER A 1
08-011 5MMX433LD003 PLATE ZENNER B 1
08-012 5MVL662SB002 COVER ZENNER 1
08-013 5MMZ322LD003 PLATE MCH 1
08-014 5MVL541SB002 CASE BELT HOLDER 1
08-015 5MMW341SX001 SPRING CASE BELT 1
08-016 5AAVBLADE025 BLADE ASSY 1
08-017 5AAY1550E*52 BRUSH L ASSY (240V) 1
08-017 5AAY1550A*19 BRUSH L ASSY (120V) 1
08-019 5AAY3400E*26 DRUM ASSY (240V) 1
08-019 5AAY3400A*14 DRUM ASSY (120V) 1
08-021 5AAXLD025GEA LED ASSY 1
08-022 5MML821LD004 BRACKET SHEET 1
08-023 5MMT343SN003 PIN IDLER C 2
08-024 5MMT864RN002 ROLL CLN 1
08-027 5MVG126DB023 GEAR ROLL Z18H 1
08-028 5MVG137DB030 GEAR SCREW Z24 1
08-029 5MVG137DB055 GEAR Z18S-Z30H 1
08-030 5MVG137DB032 GEAR Z24 1
08-031 5MVQ211DN001 BUSH CLN 1
08-032 5MVQ321DN001 BUSH LEFT 1
08-033 5MVQ321DN003 BUSH RIGHT 1
08-034 5MVS218RN010 SEAL BLADE 2
08-035 5MVS328LN001 SEAL RING LEFT 1
08-036 5MVS428LN006 SEAL DRUM LEFT 1
08-037 5MVS428LN002 SEAL DRUM RIGHT 1
08-038 5MVS811RN002 SHEET ROLL 1
08-040 5MVS812XN001 TAPE ADHESIVE 1
08-041 5MVS721KN008 SHEET DRUM LOW 1
08-042 5MVS823KN001 SHEET SCRAPER 1
08-043 5MVT860SB001 ROLL MAGIC 1
08-044 5MVT864CB001 SCREW 1
08-045 5MVX864CB001 FRAME DRUM LOW 1
08-046 5AAY155◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
