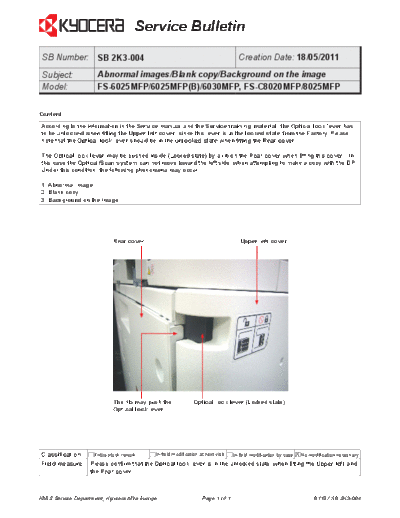

Image preview - the first page of the document



>> Download 2K3-004 documenatation <<

Text preview - extract from the document

                                      Service Bulletin
 SB Number: SB 2K3-004                                                             Creation Date: 18/05/2011
 Subject:            Abnormal images/Blank copy/Background on the image
 Model:              FS-6025MFP/6025MFP(B)/6030MFP, FS-C8020MFP/8025MFP


Content
According to the information in the Service manual and the Service training material, the Optical lock lever has
to be unlocked when fitting the Upper left cover, since this lever is in the locked state from the Factory. Please
note that the Optical lock lever should be in the unlocked state when fitting the Rear cover.

The Optical lock lever may be pushed inside (Locked state) by a rib on the Rear cover when fitting this cover. In
this case the Optical/Scan system can not move toward the left side, when attempting to make a copy with the DP.
Under this condition, the following phenomena may occur:

1. Abnormal image.
2. Blank copy.
3. Background on the image.




                            Rear cover                                              Upper left cover




                            The rib may push the              Optical lock lever (Locked state)
                            Optical lock lever.




Classification      Entire stock rework    In-field modification at next visit                  X No modification necessary
                                                                                 In-field modification by case
Field measure     Please confirm that the Optical lock lever is in the unlocked state, when fitting the Upper left and
                  the Rear cover.



KMIS Service Department, Kyocera Mita Europe                      Page 1 of 1                                    B119 / SB 2K3-004
