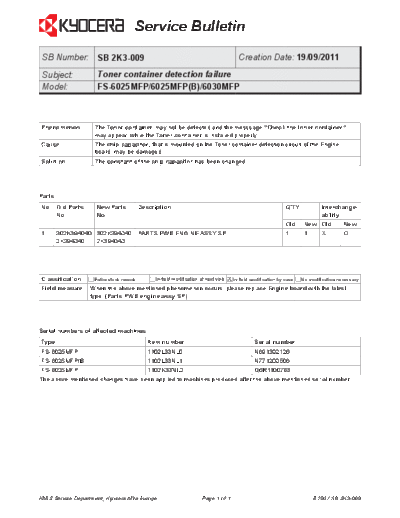

Image preview - the first page of the document



>> Download 2K3-009 documenatation <<

Text preview - extract from the document

                                      Service Bulletin
 SB Number: SB 2K3-009                                                               Creation Date: 19/09/2011
 Subject:            Toner container detection failure
 Model:              FS-6025MFP/6025MFP(B)/6030MFP



Phenomenon          The Toner container may not be detected and the messsage "Check the toner container"
                    may appear, while the Toner container is installed properly.
Cause               The chip capacitor, that is mounted on the Toner container detection circuit of the Engine
                    board, may be damaged
Solution            The constant of the chip capacitor has been changed.




Parts
No. Old Parts        New Parts            Description                                            Q'TY         Interchange-
    No.              No.                                                                                      ability
                                                                                                 Old    New Old       New
1       302K394040 302K394040             PARTS PWB ENGINE ASSY SP                               1      1     X       O
        2K394040   2K394040




Classification      Entire stock rework                       X In-field modification by case No modification necessary
                                               In-field modification at next visit
Field measure     When the above mentioned phenomenon occurs, please replace Engine board with the latest
                  type. (Parts PWB engine assy SP)




Serial numbers of affected machines
Type                                         Item number                                Serial number
FS-6025MFP                                   1102L33NL0                                 N691302126
FS-6025MFP/B                                 1102L33NL1                                 N771200506
 FS-6025MFP                        1102K33NL0                             Q6R1100763
The above mentioned changes have been applied to machines produced after the above mentioned serial number.




KMIS Service Department, Kyocera Mita Europe                          Page  of                              B293 / SB 2K3-009
