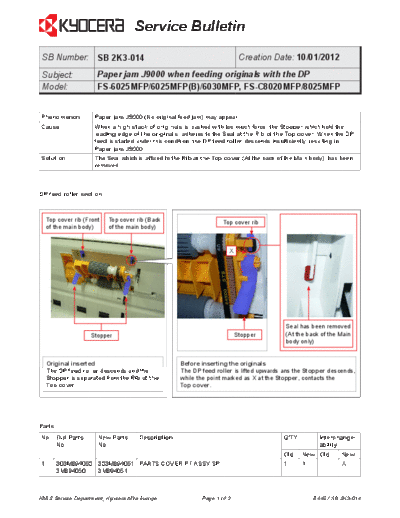

Image preview - the first page of the document
>> Download 2K3-014 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2K3-014 Creation Date: 10/01/2012
Subject: Paper jam J9000 when feeding originals with the DP
Model: FS-6025MFP/6025MFP(B)/6030MFP, FS-C8020MFP/8025MFP
Phenomenon Paper jam J9000 (No original feed jam) may appear.
Cause When a high stack of originals is pushed with too much force, the Stopper which hold the
leading edge of the originals, adheres to the Seal at the Rib of the Top cover. When the DP
feed is started under this condition, the DP feed roller descends insufficiently, resulting in
Paper jam J9000.
Solution The Seal which is affixed to the Rib at the Top cover (At the back of the Main body), has been
removed.
DP feed roller section
Top cover rib (Front Top cover rib (Back Top cover rib
of the main body) of the main body)
X
Seal has been removed
Stopper Stopper (At the back of the Main
body only)
Original inserted Before inserting the originals
The DP feed roller descends and the The DP feed roller is lifted upwards ans the Stopper descends,
Stopper is separated from the Rib at the while the point marked as X at the Stopper, contacts the
Top cover. Top cover.
Parts
No. Old Parts New Parts Description Q'TY Interchange-
No. No. ability
Old New Old New
1 303M894050 303M894051 PARTS COVER PF ASSY SP 1 1 X
3M894050 3M894051
KMIS Service Department, Kyocera Mita Europe Page 1 of 2 B446 / SB 2K3-014
Service Bulletin
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure When the above mentioned phenomenon occurs, please remove the Seal, which is affixed to the
Rib of the Top cover (At the back of the Main body). Do not remove the Seal at the front side of
the Main body, to ensure that the Stop function is not disabled.
Serial numbers of affected machines
Type Serial number
FS-6025MFP/6025MFP(B)/6030MFP, FS-C8020MFP/8025MFP Not available
The above mentioned changes have been applied to machines produced after the above mentioned production date.
Normal operation Abnormal operation
Rib of the Top cover Rib of the Top cover
Stopper Stack of Originals
Original
Stopper
1. Set the Original. 1. Set a high stack of Originals with to much force.
2. The Drive starts and the DP feed roller descends. 2. The Stopper and the Seal (Which is affixed to the
3. The Stopper position is lowered as shown in the Rib of the Top cover) adhere to each other.
image above and is separated from the Rib of the In this case, the Stopper is not separated from
Top cover. Now the Stopper can rotate. the Rib, when the DP feed roller descends.
3. Under the above mentioned condition, the
DP feed roller does not descend, resulting in
Paper jam J9000 (No original feed jam)
KMIS Service Department, Kyocera Mita Europe Page 2 of 2 B446 / SB 2K3-014
