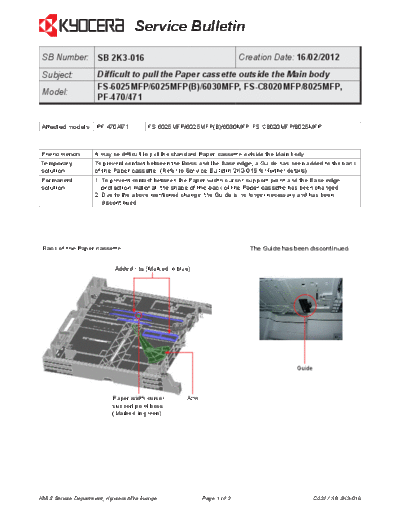

Image preview - the first page of the document
>> Download 2K3-016 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2K3-016 Creation Date: 16/02/2012
Subject: Difficult to pull the Paper cassette outside the Main body
FS-6025MFP/6025MFP(B)/6030MFP, FS-C8020MFP/8025MFP,
Model:
PF-470/471
Affected models PF-470/471 FS-6025MFP/6025MFP(B)/6030MFP, FS-C8020MFP/8025MFP
Phenomenon It may be difficult to pull the standard Paper cassette outside the Main body.
Temporary To prevent contact between the Boss and the Base edge, a Guide has been added to the back
solution of the Paper cassette. (Refer to Service Bulletin 2K3-015 for further details)
Permanent 1. To prevent contact between the Paper width cursor support point and the Base edge
solution protection material, the shape of the back of the Paper cassette has been changed.
2. Due to the above mentioned change, the Guide is no longer necessary and has been
discontinued.
Back of the Paper cassette The Guide has been discontinued
Added ribs (Marked in blue)
Guide
Paper width cursor Arm
support point boss
(Marked in green)
KMIS Service Department, Kyocera Mita Europe Page 1 of 2 C022 / SB 2K3-016
Service Bulletin
Parts
No. Old Parts New Parts Description Q'TY Interchange- Remarks
No. No. ability
Old New Old New
1 302K393171 302K393172 CT-475 1 1 O O *1
2K393171 2K393172
2 303NN93011 303NN93012 CT-476 1 1 O O *2
3NN93011 3NN93012
3 302K394900 ---------- + PARTS GUIDE BOTTOM 1 - X - (Set of the Guide/
2K394900 CASSETTE ASSY SP Screw/Leaflet)
Notes: *1. Main body standard Paper cassette and 1ste cassette of the PF.
*2. 2nd Paper cassette (Added for commonality with the standard Paper cassette and 1ste cassette of the PF)
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure When the above mentioned phenomenon occurs, please add the Guide to the Paper cassette
(Refer to Service Bulletin 2K3-015 for further details).
Serial numbers of affected machines
Type Serial number
PF-470/471 Planned from January 2012 production*.
FS-6025MFP/6025MFP(B)/6030MFP, FS-C8020MFP/ Not availble
8025MFP
The above is the plan at the present moment. Please note that there is a possibility of change after giving this
information.
KMIS Service Department, Kyocera Mita Europe Page 2 of 2 C022 / SB 2K3-016
