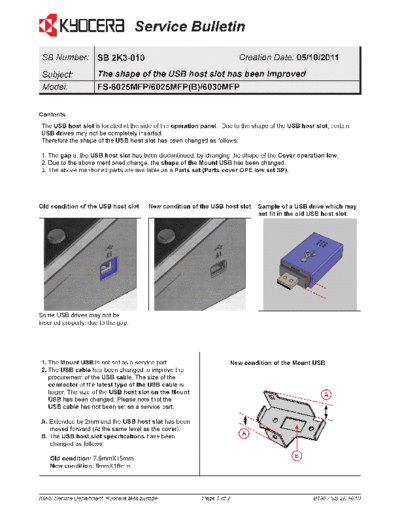

Image preview - the first page of the document
>> Download 2K3-010 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2K3-010 Creation Date: 05/10/2011
Subject: The shape of the USB host slot has been improved
Model: FS-6025MFP/6025MFP(B)/6030MFP
Contents
The USB host slot is located at the side of the operation panel. Due to the shape of the USB host slot, certain
USB drives may not be completely inserted.
Therefore the shape of the USB host slot has been changed as follows:
1. The gap at the USB host slot has been discontinued, by changing the shape of the Cover operation low.
2. Due to the above mentioned change, the shape of the Mount USB has been changed.
3. The above mentioned parts are available as a Parts set (Parts cover OPE low set SP).
Old condition of the USB host slot New condition of the USB host slot Sample of a USB drive which may
not fit in the old USB host slot.
Some USB drives may not be
inserted properly, due to the gap.
1. The Mount USB is not set as a service part. New condition of the Mount USB
2. The USB cable has been changed to improve the
procurement of the USB cable. The size of the
connector of the latest type of the USB cable is
larger. The size of the USB host slot on the Mount A
USB has been changed. Please note that the
USB cable has not been set as a service part.
A. Extended by 2mm and the USB host slot has been
moved forward (At the same level as the cover).
B. The USB host slot specifications have been A
changed as follows:
Old condition: 7.5mmX15mm B
New condition: 9mmX16mm
KMIS Service Department, Kyocera Mita Europe Page 1 of 2 B196 / SB 2K3-010
Service Bulletin
Parts
No. Old Parts New Parts Description Q'TY Interchange-
No. No. ability
Old New Old New
1 ---------- 302K394870 PARTS COVER OPE LOW SET SP * - 1 - O
2K394870
2 302K305021 302K305022 +COVER OPERATION LOW 1 1 X X
2K305021 2K305022
Notes: Item 1 is a parts set, containing the latest type of the Cover operation low and the Mount USB.
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure Please note that the old type of the Cover operation low is only compatible with the old type of
the Mount USB. Therefore please use the parts set (Parts cover OPE low set SP), when
replacing the Cover operation low with the latest type.
Serial numbers of affected machines
Type Serial number
FS-6025MFP/6025MFP(B)/6030MFP June 2011 production
The above mentioned changes have been applied to machines produced after the above mentioned production date.
KMIS Service Department, Kyocera Mita Europe Page 2 of 2 B196 / SB 2K3-010
