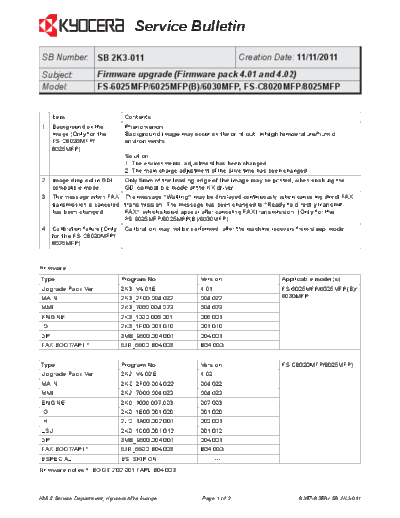

Image preview - the first page of the document
>> Download 2K3-011 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2K3-011 Creation Date: 11/11/2011
Subject: Firmware upgrade (Firmware pack 4.01 and 4.02)
Model: FS-6025MFP/6025MFP(B)/6030MFP, FS-C8020MFP/8025MFP
Item Contents
1 Background on the Phenomenon
image (Only for the Background image may occur on the print-out, in high temperature/humid
FS-C8020MFP/ environments.
8025MFP)
Solution
1. The environmental adjustment has been changed.
2. The main charge adjustment of the drive time has been changed.
2 Image drop out in GDI Only 5mm of the leading edge of the image may be printed, when enabling the
compatible mode. GDI compatible mode at the KX driver.
3 The message when FAX The message "Waiting" may be displayed continuously, when canceling direct FAX
transmission is canceled transmission. The message has been changed to "Ready to directly transmit
has been changed. FAX", which should appear after canceling FAX transmission. (Only for the
FS-6025MFP/6025MFP(B)/6030MFP)
4 Calibration failure (Only Calibration may not be performed, after the machine recovers from sleep mode.
for the FS-C8020MFP/
8025MFP)
Firmware
Type Program No. Version Applicable model(s)
Upgrade Pack Ver. 2K3_V4.01E 4.01 FS-6025MFP/6025MFP(B)/
MAIN 2K3_2F00.004.022 004.022 6030MFP
MMI 2K3_7000.004.023 004.023
ENGINE 2K3_1000.006.001 006.001
IO 2K3_1E00.001.010 001.010
DP 3M8_9500.004.001 004.001
FAX BOOT/APL * 5JR_5500.B04.003 B04.003
Type Program No. Version FS-C8020MFP/8025MFP)
Upgrade Pack Ver. 2KZ_V4.02E 4.02
MAIN 2KZ_2F00.004.022 004.022
MMI 2KZ_7000.004.023 004.023
ENGINE 2K0_1000.007.003 007.003
IO 2K0_1E00.001.020 001.020
IH 2LC_1A00.002.001 002.001
LSU 2K0_1C00.001.012 001.012
DP 3M8_9500.004.001 004.001
FAX BOOT/APL* 5JR_5500.B04.003 B04.003
ESPECIAL ES_SKIP.ON ----------
Firmware notes *: BOOT: Z02.001 / APL B04.003
KMIS Service Department, Kyocera Mita Europe Page 1 of 2 B357-B358 / SB 2K3-011
Service Bulletin
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure Please upgrade the firmware to the latest version to implement the above mentioned changes.
Serial numbers of affected machines
Type Serial number
FS-6025MFP/6025MFP/B/6030MFP, FS-C8020MFP/8025MFP October 2011 production.
The above mentioned changes have been applied to machines produced after the above mentioned production date.
KMIS Service Department, Kyocera Mita Europe Page 2 of 2 B357-B358 / SB 2K3-011
