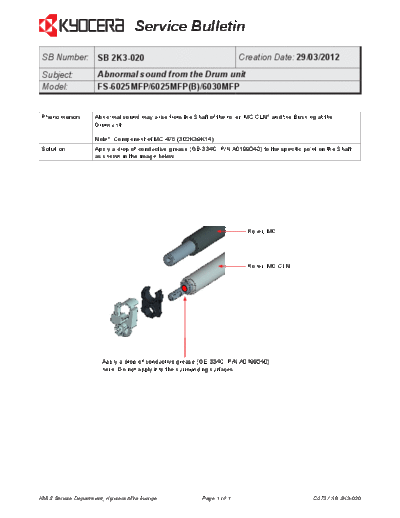

                                   Service Bulletin
 SB Number: SB 2K3-020                                                 Creation Date: 29/03/2012
 Subject:            Abnormal sound from the Drum unit
 Model:              FS-6025MFP/6025MFP(B)/6030MFP


Phenomenon          Abnormal sound may arise from the Shaft of the roller, MC CLN* and the Bushing at the
                    Drum unit.

                    Note*: Component of MC-475 (302K39K14)
Solution            Apply a drop of conductive grease (GE-334C: P/N A0199040) to the specific point on the Shaft
                    as shown in the Image below.




                                                                          Roller, MC




                                                                          Roller, MC CLN




                       Apply a drop of conductive grease (GE-334C: P/N A0199040)
                       here. Do not apply it to the surrounding surfaces.




KMIS Service Department, Kyocera Mita Europe              Page  of                                C073 / SB 2K3-020
