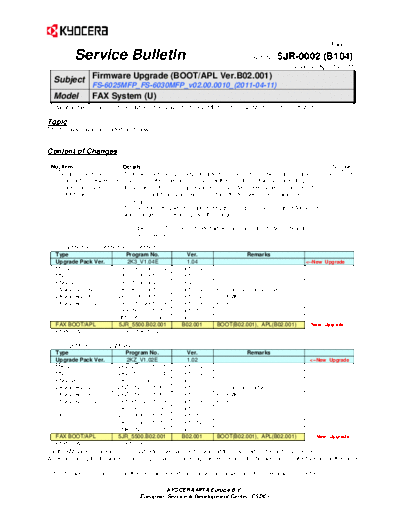

Image preview - the first page of the document
>> Download SB-5JR-0002-B104 documenatation <<
Text preview - extract from the document
(Page.1/2)
Service Bulletin Ref. No. 5JR-0002 (B104)
April 14 2011
Firmware Upgrade (BOOT/APL Ver.B02.001)
Subject
FS-6025MFP_FS-6030MFP_v02.00.0010_(2011-04-11)
Model FAX System (U)
(Installation target models: FS-6030MFP, FS-6025MFP, FS-6025MFP/B, FS-C8020MFP and FS-C8025MFP)
Topic
The firmware was upgraded as follows.
Content of Changes
No. Item Details CTL Ver.
1 Improvement the There was not enough margin to detect the connection between the controller 541776 FAX
connection between the board and FAX board and in case that the condition got worse depending on
controller board and the variation of the resistance values on the FAX board, system error *CF14A
FAX board or CF378 might rarely appear. Therefore, the following change was made.
[Change]
The register setting which is affected by the resistance value on the FAX board
was changed in order to improve the margin.
*CF14A/CF378: The error indicated when communication between boards is
disconnected
Type Program No. Ver. Remarks
Upgrade Pack Ver. 2K3_V1.04E 1.04 <--New Upgrade
MAIN 2K3_2F00.001.504 001.504
MMI 2K3_7000.001.500 001.500
ENGINE 2K3_1000.004.002 004.002
LANGUAGE BR 2K3_81BR.001.004 001.004 For Brazilian Portuguese
LANGUAGE KR 2K3_81KR.001.002 001.002 For KMKR *
LANGUAGE CN 2K3_81CN001.003 001.003 For KTST *
IO 2K3_1E00.001.010 001.010
DP 3M8_9500.003.001 003.001
FAX BOOT/APL 5JR_5500.B02.001 B02.001 BOOT(B02.001), APL(B02.001) <--New Upgrade
ESPECIAL ES_SKIP.ON ----------
Type Program No. Ver. Remarks
Upgrade Pack Ver. 2KZ_V1.02E 1.02 <--New Upgrade
MAIN 2KZ_2F00.001.504 001.504
MMI 2KZ_7000.001.504 001.504
ENGINE 2K0_1000.002.002 002.002
LANGUAGE BR 2KZ_81BR.001.006 001.006 For Brazilian Portuguese
LANGUAGE KR 2KZ_81KR.001.003 001.003 For KMKR *
LANGUAGE CN 2KZ_81CN.001.003 001.003 For KTST *
IO 2K0_1E00.001.020 001.020
IH 2LC_1A00.001.013 001.013
LSU 2K0_1C00.001.012 001.012
DP 3M8_9500.003.001 003.001
FAX BOOT/APL 5JR_5500.B02.001 B02.001 BOOT(B02.001), APL(B02.001) <--New Upgrade
ESPECIAL ES_SKIP.ON ----------
For the KM sales companies, it is possible to download the firmware at the download center on the ESDC.net.
When upgrading the firmware or replacing a board, please upgrade each kind of the firmware to the latest version at the same
time.
*: This firmware is not included in the upgrade pack. Please individually download it from the download center.
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.2/2)
Service Bulletin Ref. No. 5JR-0002 (B104)
April 14 2011
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure: No particular problem is expected.
Serial Nos. of the Affected Machines: Planned from the March 2011* production
* The above is the plan at the present moment. Please note that this information is subject to change.
