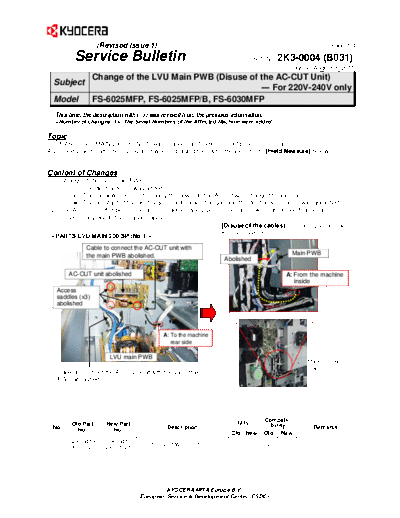

Image preview - the first page of the document
>> Download SB-2K3-0004-B031_1 documenatation <<
Text preview - extract from the document
(Revised Issue 1) (Page.1/4)
Service Bulletin Ref. No. 2K3-0004 (B031)
August 3, 2011
Change of the LVU Main PWB (Disuse of the AC-CUT Unit)
Subject
--- For 220V-240V only
Model FS-6025MFP, FS-6025MFP/B, FS-6030MFP
This time, the description with (-->) was revised from the previous information.
The Serial Numbers of the Affected Machine were added.
Topic
The PARTS LVU MAIN 200 SP (No.1) was changed as follows for part procurement ease.
Accordingly, some attention is required when replacing the parts. Please refer to [Field Measure] below.
Content of Changes
1) Change of the LVU main PWB
i) The discharger IC was added.
ii) The capacitor (YC10) to supply the power to the AC-cut was changed to a jumper.
iii) The constant of the discharger resistor was changed and the discharger resistor was abolished.
2) The AC-CUT unit, 3 pcs. of the access saddles and 2 pcs. of the cables were abolished that became
unnecessary due to the changes above.
[Disuse of the cables] (Connecting sections with
the main PWB (YC106))
Cable to connect the AC-CUT unit with
the main PWB abolished. Main PWB
Abolished
AC-CUT unit abolished A: From the machine
inside
Access
saddles (x3)
abolished
A: To the machine
rear side
LVU main PWB
Machine rear
side
Cable to connect the AC-CUT unit with the LVU main
PWB abolished
Com pati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
302K394120 302K394121
1 PARTS LVU MAIN 200 SP 1 1 X O
2K394120 2K394121
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Revised Issue 1) (Page.2/4)
Service Bulletin Ref. No. 2K3-0004 (B031)
August 3, 2011
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
Please replace the PARTS LVU MAIN 200 SP (No.1) with the new one when replacing the part in the machine
on which the new LVU main PWB is installed.
For the machine with the old LVU main PWB, either new or old PARTS LVU MAIN 200 SP (No.1) is
applicable. However, if replacing it with the new No.1, please remove the AC-CUT unit, the access saddles
(x3) and the cables (x2).
(*) Please refer to the next page how to distinct between the new and old LVU main PWB and the procedures
for detaching/refitting the cover when replacing the LVU main PWB.
Serial Nos. of the Affected Machines: Please refer to the table below.
(-->) Serial Nos. of the Affected Machines
TASKalfa305/FS-6030MFP 220-240V
KME 220VM KMAUS 220VM UTAX 220VM KMHG 220VM KMID 220VM KMSG 220VM KMTH 220VM
1102K33NL0 1102K33AS0 1102K33UT0 1102K33HK0 1102K33ND0 1102K33SG0 1102K33TH0
Q6R1301780 Q6S1300123 N6C1300471 N931400021 N941300015 N951300030 N961300061
KMKR 220VM Olivetti Philcopy 220VI
1102K33KR0 1102K33LV0 1102K34PH0
N9R1300401 NCY1300067 NM9 *1
TASKalfa255/FS-6025MFP 220-240V
KME 220VM UTAX 220VM Olivetti RYAD 220VM KMA 220VI KMAUS KMID 220VM
1102L33NL0 1102L33UT0 1102L33LV0 1102L33RY0 1102L34US0 1102L33AS0 1102L33ND0
N691303738 N6B1300981 ND31300145 NM3 *1 N7U1400103 N6A1300152 N991300036
KMSG 220VM KMTH 220VM KTST 220VM KMHG 220VM KMKR 220VM Philcopy
1102L33SG0 1102L33TH0 1102L33KS0 1102L33HK0 1102L33KR0 1102L34PH0
N9B1300043 N9D1300061 NDL1300001 N971300030 N9T1400511 NMB *1
TASKalfa255b/FS-6025MFP/B 220-240V
KME 220VM UTAX 220VM KMA 220VI KMAUS KMID 220VM KMSG 220VM KMTH 220VM
1102L33NL1 1102L33UT1 1102L34US1 1102L33AS1 1102L33ND2 1102L33SG1 1102L33TH1
N771400544 N781300147 N7W *1 N76 *1 N9A1500011 N9C *1 N9E *1
KTST 220VM KMHG 220VM Philcopy 220VI
1102L33KS1 1102L33HK1 1102L34PH1
NG91300001 N98 *1 NMC *1
*1 From Next Production
[How to distinct between the new and old LVU main PWB]
