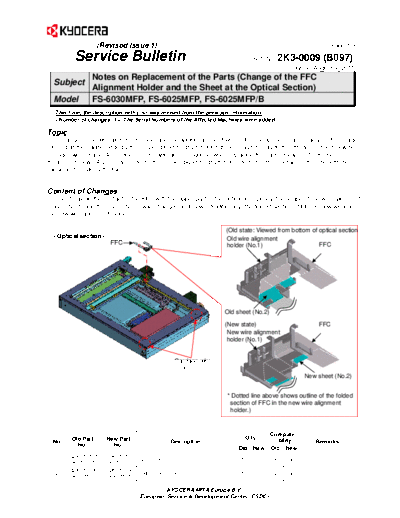

Image preview - the first page of the document
>> Download SB-2K3-0009-B097_1 documenatation <<
Text preview - extract from the document
(Revised Issue 1) (Page.1/3)
Service Bulletin Ref. No. 2K3-0009 (B097)
August 4, 2011
Notes on Replacement of the Parts (Change of the FFC
Subject
Alignment Holder and the Sheet at the Optical Section)
Model FS-6030MFP, FS-6025MFP, FS-6025MFP/B
This time, the description with (-->) was revised from the previous information.
The Serial Numbers of the Affected Machines were added.
Topic
The change of the wire alignment holder and the additional sheet were informed as the measure against the image
blurring at the trailing edge by the service bulletin SB-2K3-0003-B030. This time, as further measure, the following
changes were made. Accordingly, some attention is required when replacing the parts. Please refer to [Field
measure] below. (Also, please refer to the service bulletin SB-2K3-003-B030 for more details of the phenomenon,
cause and previous measure.)
Content of Changes
In order to avoid the contact of the FFC with the upper part of the optical wire pulley, the shape of the wire alignment
holder (No.1) and the sheet (No.2) was changed as follows. Additionally, the folded section of FFC is now wired in
the new wire alignment holder.
(Old state: Viewed from bottom of optical section)
Old wire alignment
FFC holder (No.1) FFC
Old sheet (No.2)
(New state) FFC
New wire alignment
holder (No.1)
Carriage wire
pulley
New sheet (No.2)
* Dotted line above shows outline of the folded
section of FFC in the new wire alignment
holder.)
Com pati-
Old Part New Part Q'ty bility
No. No. No. Description Remarks
Old New Old New
302K317171 302K317172
1 GUIDE FFC LED C 1 1 X X
2K317171 2K317172
302K317790 302K317791
2 SHEET FFC LED 1 1 X X
2K317790 2K317791
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Revised Issue 1) (Page.2/3)
Service Bulletin Ref. No. 2K3-0009 (B097)
August 4, 2011
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure: When replacing the part, please apply a set of the old or the new parts of No.1 and No.2.
Serial Nos. of the Affected Machines: Please refer to the table below.
(-->) Serial Nos. of the Affected Machines
TASKalfa305/FS-6030MFP
KMJ KMA 120V KME KMAUS UTAX CS KMA 220V KMBR
1102K32CS
1102K39JP0 1102K32US0 1102K33NL0 1102K33AS0 1102K33UT0 1102K34US0 1102K32BR0
0
Q6P1400581 Q6Q1401986 Q6R1401781 Q6S1400142 N6C1400671 N6S1501177 N7T *1 N8P1400061
KMHG KMID KMSG KMTH KMKR KMTW GSA Olivetti
1102K3TTW
1102K33HK0 1102K33ND0 1102K33SG0 1102K33TH0 1102K33KR0 1102K32US1 1102K33LV0
0
N931400021 N941400017 N951400110 N961400085 N9R1400501 N9S1400001 NCX1400099 NCY1400091
KTST PHILCOPY
1102K33KS0 1102K34PH0
NDJ1400401 NM9 *1
TASKalfa255/FS-6025MFP
KMJ KMA 120V KME KMAUS UTAX CS KMA 220V KMBR
1102L39JP0 1102L32US0 1102L33NL0 1102L33AS0 1102L33UT0 1102L32CS0 1102L34US0 1102L32BR0
N671402000 N681402705 N691304822 N6A1400162 N6B1401331 N6T1501211 N7U1400103 N8R1500077
KMID KMSG KMTH KMKR KMTW Olivetti KTST PHILCOPY
1102L33ND0 1102L33SG0 1102L33TH0 1102L33KR0 1102L3TTW0 1102L33LV0 1102L33KS0 1102L34PH0
ND3140016
N991400049 N9B1400083 N9D1400081 N9T1400511 N9U1400001 NDL1400501 NMB *1
1
TASKalfa255b/FS-6025MFP/B
GSA CONSIP KMBR KTST PHILCOPY
1102L32US1 1102L33NL1 1102L32BR1 1102L33KS1 1102L34PH1
N751400176 N771400544 N8S1500071 NG91400301 NMC *1
*1 From Next Production
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Revised Issue 1) (Page.3/3)
Service Bulletin Ref. No. 2K3-0009 (B097)
August 4, 2011
(Old) (New)
Rib cut to hold old sheet (No.2) Shape changed for FFC to be put in the
new wire alignment holder
(Figure above viewed from top) (Figure above viewed from top)
Rib cut to align FFC and to fit new sheet (No.2) Rib added to hold new sheet (No.2)
(Old: Fitted on the optical section bottom (New: Fitted in the new wire alignment holder (No.1))
of the old wire alignment holder (No.1))
