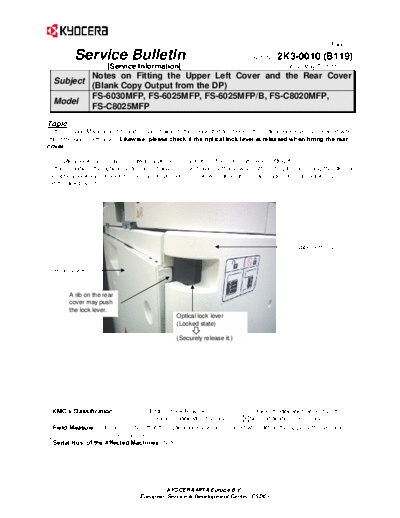

Image preview - the first page of the document



>> Download SB-2K3-0010-B119 documenatation <<

Text preview - extract from the document

                                                                                                            (Page.1/1)

          Service Bulletin                                                    Ref. No.   2K3-0010 (B119)
                       [Service Information]                                              May 7, 2011
          Notes on Fitting the Upper Left Cover and the Rear Cover
  Subject
          (Blank Copy Output from the DP)
          FS-6030MFP, FS-6025MFP, FS-6025MFP/B, FS-C8020MFP,
  Model
          FS-C8025MFP
Topic
In the Service Manual and during service training, it is requested to check if the optical lock lever is released when
fitting the upper left cover. Likewise, please check if the optical lock lever is released when fitting the rear
cover.

The optical lock lever may be unawarely pushed in by a rib on the rear cover when fitting it.
In this condition, the optical system is not able to move toward left side when attempting to copy using the DP since
the optical lock lever is locked (the lever is pushed in). This will cause abnormal images such as blank copy or
foggy background.




                                                                                               Upper left cover


  Rear cover


        A rib on the rear
        cover may push
        the lock lever.
                                                 Optical lock lever
                                                 (Locked state)

                                                 (Securely release it.)




 KMC's Classification                Entire Stock Rework                 In-Field modification at next visit
                                     In-Field modification by case       No modification necessary
  Field Measure: Please confirm that the optical lock lever is released when fitting the upper left cover and
                        the rear cover.
  Serial Nos. of the Affected Machines: N.A.




                                            KYOCERA MITA Europe B.V.
                                   European Service & Development Center (ESDC)
