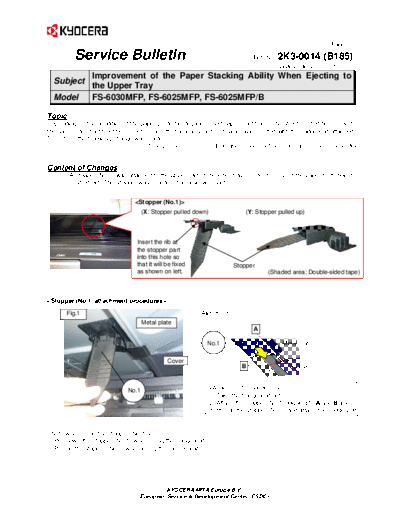

Image preview - the first page of the document
>> Download SB-2K3-0014-B185 documenatation <<
Text preview - extract from the document
(Page.1/2)
Service Bulletin Ref. No. 2K3-0014 (B185)
June 30, 2011
Improvement of the Paper Stacking Ability When Ejecting to
Subject
the Upper Tray
Model FS-6030MFP, FS-6025MFP, FS-6025MFP/B
Topic
Depending on the condition of the paper printed in duplex, curled paper might push the sheet ejected before, and
the page order might not be correct in case that a large volume of paper was ejected with the bridge unit attached.
Therefore, the following change was made.
*The phenomenon described above does not occur in case of simplex printing.
Content of Changes
1) A stopper (No.1) was attached to the upper part of the inner tray in order to prevent the paper from being
pushed out. This stopper was registered as a service part.
(X: Stopper pulled down) (Y: Stopper pulled up)
Insert the rib at
the stopper part
into this hole so
that it will be fixed Stopper
as shown on left. (Shaded area: Double-sided tape)
Fig.1 (Alignment)
Metal plate
A
No.1 Metal plate
Cover
B Cover
No.1
1) Take the bridge unit out.
2) Attach the stopper (No.1) aligning to A and B above.
3) Pull up the stopper (No.1) and attach the bridge unit.
- Pull down the stopper (No.1) when using the bridge unit.
- Pull up the stopper (No.1) when using the job separator.
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.2/2)
Service Bulletin Ref. No. 2K3-0014 (B185)
June 30, 2011
Com pati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
302K394860 PARTS STOPPER PAPER C
1 ---------- - 1 - O
2K394860 ASSY SP
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
Please attach the stopper (No.1) in case that the duplex pages are ejected in the wrong order. Please refer to
the bundled leaflet for the attachment procedure.
Serial Nos. of the Affected Machines: As this is a service part, no serial number information is available.
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
