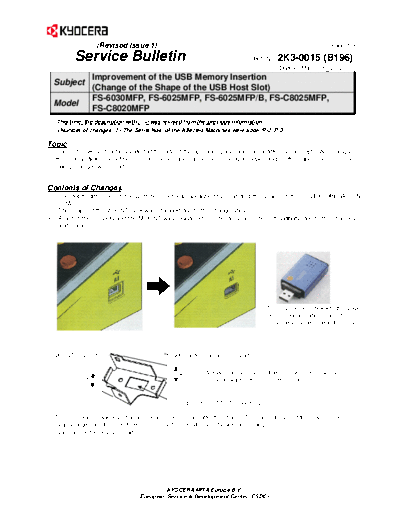

Image preview - the first page of the document
>> Download SB-2K3-0015-B196_1 documenatation <<
Text preview - extract from the document
(Revised Issue 1) (Page.1/3)
Service Bulletin Ref. No. 2K3-0015 (B196)
March 16, 2012
Improvement of the USB Memory Insertion
Subject
(Change of the Shape of the USB Host Slot)
FS-6030MFP, FS-6025MFP, FS-6025MFP/B, FS-C8025MFP,
Model
FS-C8020MFP
This time, the description with (-->) was revised from the previous information.
The Serial Nos. of the Affected Machines were adde (P-2, P-3).
Topic
The current USB host slot is located at the side of the operation panel and has a difference in depth. Accordingly,
USB memory stick may not be inserted enough and cannot be recognized depending on its shape. Therefore, the
following changes were made.
Contents of Changes
1. The depth difference in the USB host slot was abolished by changing the shape of the COVER OPERATION
LOW.
2. The shape of the MOUNT USB was changed due to the change above.
3. A set of the COVER and the MOUNT was registered in order to secure the compatibility due to the changes 1
and 2 above.
The USB memory stick with the shape
like the example above cannot be
completely inserted due to the bump.
MOUNT USB *1 *1: Not registered as a service part
A A: Extended by 2 mm so that the USB host slot will be
A put forward to the level of the cover.
USB host slot (7.5x15 -> 9x16) *2
*2: The USB cable *3 was also changed for procurement ease after this change. The connector size of the new USB cable is
slightly larger, and the size of the USB host slot on the MOUNT USB was also changed.
*3: Not registered as a service part
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Revised Issue 1) (Page.2/3)
Service Bulletin Ref. No. 2K3-0015 (B196)
March 16, 2012
Q'ty Com pati-
Old Part New Part bi lity
No. No. No. Description Remarks
Old New Old New
302K394870 PARTS COVER OPE LOW
1 ---- - 1 - O *4
2K394870 SET SP
302K305021 302K305022
2 +COVER OPERATION LOW 1 1 X X
2K305021 2K305022
*4: A set of No.2 and the MOUNT USB
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
Please note that the old type cover is only compatible with the old type MOUNT USB.
Please use the set (No.1) when replacing the old type cover with the new type.
Serial Nos. of the Affected Machines: (-->) Please refer to the tables below.
(-->) Serial Nos. of the Affected Machines
FS-6030MFP
KMJ KMA 120V CPY KMA GSA KMBR KMA 220V KME UTAX
1102K39JP0 1102K32US0 1102K32CS0 1102K32US1 1102K32BR0 1102K34US0 1102K33NL0 1102K33UT0
Q6P1600659 Q6Q1Z02265 N6S NextPdct NCX NextPdct N8P1600151 N7T1700090 Q6R1502481 N6C1501159
Olivetti KMAUS KTST KMKR KMTW KMHG KMID KMSG
1102K33LV0 1102K33AS0 1102K33KS0 1102K33KR0 1102K3TTW0 1102K33HK0 1102K33ND0 1102K33SG0
NCY1600350 Q6S1600205 NDJ1601041 N9R1600882 N9S1600081 N931600042 N941700022 N951700113
KMTH Philcopy
1102K33TH0 1102K34PH0
N961600136 NM91900001
FS-6025MFP/FS-6025MFP/b
KMJ KMJ KMA KMA GSA CPY CPY KMA b KMBR
1102L39JP0 1102L39JP1 1102L32US0 1102L32US2 1102L32CS0 1102L32CS1 1102L32US1 1102L32BR0
N671603200 N79 NextPdct N681703421 ND2 NextPdct N6T1X01226 N7V NextPdct N75 NextPdct N8R1600201
KMBR KMA 220V KMA b 220V KME UTAX UTAX Olivetti KME
1102L32BR1 1102L34US0 1102L34US1 1102L33NL0 1102L33UT0 1102L33UT1 1102L33LV0 1102L33NL1
N8S1600141 N7U1900199 N7W NextPdct N691607362 N6B1602209 N781600232 ND31600578 N77 NextPdct
RYAD KMAUS KMAUS KTST KTST b KMKR KMTW KMHG
1102L33RY0 1102L33AS0 1102L33AS1 1102L33KS0 1102L33KS1 1102L33KR0 1102L3TTW0 1102L33HK0
NM31800001 N6A1600278 N76 NextPdct NDL1601361 NG91600501 N9T1600833 N9U1600075 N971600059
Philcopy
KMHG KMID KMID KMSG KMSG KMTH KMTH
220V
1102L33HK1 1102L33ND0 1102L33ND2 1102L33SG0 1102L33SG1 1102L33TH0 1102L33TH1 1102L34PH0
N98 NextPdct N991600080 N9A NextPdct N9B1600237 N9C NextPdct N9D1600159 N9E NextPdct NMB1900001
Philcopy
220V
1102L34PH1
NMC NextPdct
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Revised Issue 1) (Page.3/3)
Service Bulletin Ref. No. 2K3-0015 (B196)
March 16, 2012
FS-C8025MFP
KMJ KMA CPY KMA GSA KMBR KMA 220V KME UTAX
1102K09JP0 1102K02US0 1102K02CS0 1102K02US1 1102K02BR0 1102K04US0 1102K03NL0 1102K03UT0
Q71 Q72 N8B NextPdct NH51800021 N8N1600073 NBD1600055 Q73 N6U1600801
Olivetti KMAUS KMCHN KMKR KMTW KMHG KMID KMSG
1102K03LV0 1102K03AS0 1102K03KS0 1102K03KR0 1102K0TTW0 1102K03HK0 1102K03ND0 1102K03SG0
NJM1600281 Q74 NG71600200 NCV1700311 NCW1600056 NAC1600032 NFP1X00026 NFQ1600042
KMTH Philcopy
1102K03TH0 1102K04PH0
NFR1600027 NM81800001
FS-C8025MFP
KMJ KMA CPY KMA KMBR KMA 220V KMA 220V KME
1102KZ9JP0 1102KZ2US0 1102KZ2CS0 1102KZ2US1 1102KZ2BR0 1102KZ4US0 1102KZ4US0 1102KZ3NL0
Q6W1601975 Q6X1Y01433 N8C NextPdct NH8180002 N8Q1600121 NBE NextPdct NFW1500091 Q6Y1604159
UTAX Olivetti KMAUS KTST KTST KMKR KMTW KMHG
1102KZ3UT0 1102KZ3LV0 1102KZ3AS0 1102KZ3KS0 1102KZ3KS0 1102KZ3KR0 1102KZTTW0 1102KZ3HK0
N6V1501510 NJN1600381 Q6Z1600367 NG81600366 NG81600366 NCZ1600260 ND11600040 NFS1600079
Philcopy
KMHG KMID KMSG KMSG KMTH
220V
1102KZ3HK0 1102KZ3ND0 1102KZ3SG0 1102KZ3SG0 1102KZ3TH0 1102KZ4PH0
NFS1600079 NAH1600051 NFT1600112 NFT1600112 NAK1600043 NMA1900001
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
