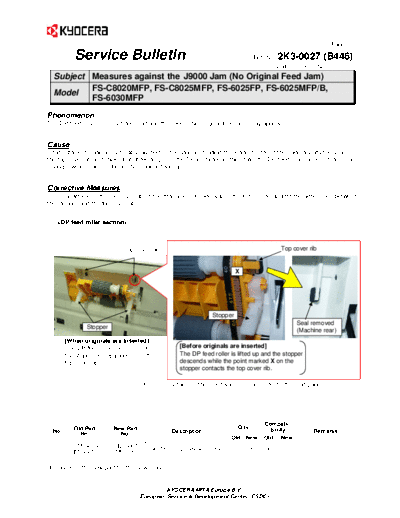

Service Bulletin Ref. No.2K3-0027 (B446)
December 21, 2011
Subject Measures against the J9000 Jam (No Original Feed Jam)
FS-C8020MFP, FS-C8025MFP, FS-6025FP, FS-6025MFP/B,
Model
FS-6030MFP
Phenomenon
The DP feed roller does not descend and the J9000 (No original feed jam) may appear.

Cause
If high stack of originals is forcibly pushed in, the stopper holding the leading edge of the originals hits the seal on
the top cover rib and sticks to it. If feeding from the DP is started in this state, the DP feed roller does not descend
enough, which causes J9000 (No original feed jam).

Corrective Measures
The seal affixed to the top cover rib on the machine rear side was removed in order to limit the adherence between
the stopper and the top cover rib.

Top cover rib Top cover rib

Stopper
Seal removed
Stopper
(Machine rear)
[When originals are inserted]
The DP feed roller descends and [Before originals are inserted]
the stopper is separated from the The DP feed roller is lifted up and the stopper
top cover rib. descends while the point marked X on the
stopper contacts the top cover rib.

*For more details on the mechanism, please refer to the next page.

Q'ty Com pati-
Old Part New Part bi lity
No. No. No. Description Remarks
Old New Old New
303M894050 303M894051
1 PARTS COVER PF ASSY SP 1 1 X O
3M894050 3M894051

*Please use the new part for the new models.

KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.2/2)

Service Bulletin Ref. No. 2K3-0027 (B446)
December 21, 2011

KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
Please remove the seals affixed to the top cover rib at the machine rear side only if the phenomenon
described above appears.
(In order to maintain the stopper function, do not remove the seal on the machine front side which is same as
the one on the rear side.)
Serial Nos. of the Affected Machines: Planned from the November 2011* production
*The above is the plan at the present moment. Please note that this information is subject to change.

Mechanism
Normal Operation When high stack of originals are forcibly set
High adherence between the rib seal
and the stopper

Top cover rib Top cover rib

Stopper Original forcibly set
Original
Stopper

1) Original is set. 1) High stack of originals is forcibly set.
2) Drive starts and the DP feed roller descends. 2) The stopper sticks to the seal affixed to the top cover
3) The stopper position is lowered with the motion rib due to the impact and the stopper is not separated
above and separated from the top cover rib. from the rib when the DP feed roller descends.
Then, the stopper can rotate. 3) The DP feed roller does not descend and No original
4) The original is fed. feed jam occurs.

KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
