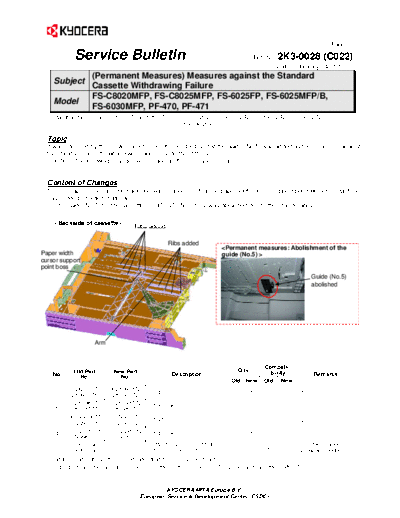

Service Bulletin Ref. No.2K3-0028 (C022)
January 24, 2012
(Permanent Measures) Measures against the Standard
Subject
Cassette Withdrawing Failure
FS-C8020MFP, FS-C8025MFP, FS-6025FP, FS-6025MFP/B,
Model
FS-6030MFP, PF-470, PF-471
(Installation target models of PF-470 and PF-471: FS-C8020MFP, FS-C8025MFP, FS-6025MFP, FS-6025MFP/B,
FS-6030MFP)
Topic
It was informed by the service bulletin SB-2K3-0024-B432 that the guide (No.5) was added as the measures against
the standard cassette withdrawing failure due to the stiffness.
This time, the following changes were made as the permanent measures.
Content of Changes
1) The shape of the cassette backside was changed so that the paper width cursor support point will not contact the
base edge protection material.
2) The guide (No.5) for the cassette CT-475/476(No.1 to 4) was abolished due to the change above.
Ribs added
Ribs added
cursor support
point boss
Guide (No.5)
abolished
Arm
Com pati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
302K393171 302K393172
1 CT-475 1 1 O O *1
2K393171 2K393172
302K39K171 302K39K172
2 CT-475 (KR) 1 1 O O *1
2K39K171 2K39K172
303NN93011 303NN93012
3 CT-476 1 1 O O *2
3NN93011 3NN93012
303NN9K011 303NN9K012
4 CT-476 (KR) 1 1 O O *2
3NN9K011 3NN9K012
302K394900 + PARTS GUIDE BOTTOM Set of the guide,
5 ---------- 1 - X -
2K394900 CASSETTE ASSY SP screw and leaflet
"+" at the head of the part name indicates that it is a component part.
*1: Standard cassette for main unit, first cassette of PF-471 and PF-470; *2: Second cassette of PF-470
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.2/2)
Service Bulletin Ref. No. 2K3-0028 (C022)
January 24, 2012
KMC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
Please install the guide (No.5) if it is hard to withdraw the old type cassette.
(For more details on the phenomenon, please refer to the service bulletin SB-2K3-0024-B432.)
Serial Nos. of the Affected Machines:
PF-470/PF-471: Planned from the January 2012* production
Others: After using up the old stock
*The above is the plan at the present moment. Please note that this information is subject to change.
