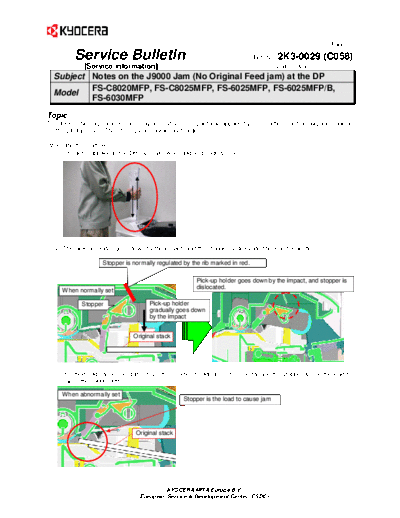

Image preview - the first page of the document
>> Download SB-2K3-0029-C058 documenatation <<
Text preview - extract from the document
(Page.1/1)
Service Bulletin Ref. No. 2K3-0029 (C058)
[Service information] March 19, 2012
Subject Notes on the J9000 Jam (No Original Feed jam) at the DP
FS-C8020MFP, FS-C8025MFP, FS-6025MFP, FS-6025MFP/B,
Model
FS-6030MFP
Topic
The J9000 (No original feed) jam may occur if some impact was applied by some action such as aligning originals
on the DP top cover. Therefore, please avoid such actions.
[Mechanism (example)]
(1) Impact is applied to the DP top cover when aligning originals there.
(2) The pick-up holder goes down by the impact, and the stopper is dislocated beyond the limiter.
Stopper is normally regulated by the rib marked in red.
Pick-up holder goes down by the impact, and stopper is
When normally set dislocated.
Stopper Pick-up holder
gradually goes down
by the impact
Original stack
(3) If setting originals in the state of (2), the bundle of originals enters too far and the stopper will be the load to
cause the J9000 jam.
When abnormally set
Stopper is the load to cause jam
Original stack
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
