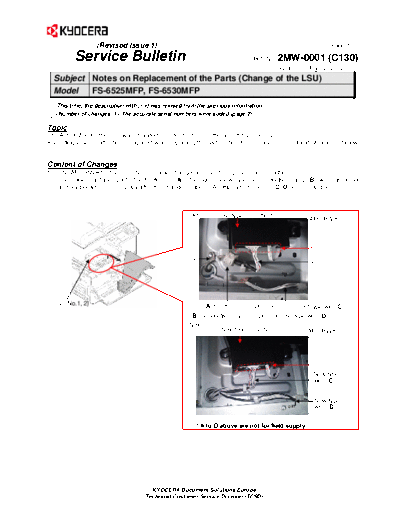

Image preview - the first page of the document
>> Download SB-2MV-0001-C130_1 documenatation <<
Text preview - extract from the document
(Revised Issue 1) (Page.1/2)
Service Bulletin Ref. No. 2MW-0001 (C130)
July 12, 2012
Subject Notes on Replacement of the Parts (Change of the LSU)
Model FS-6525MFP, FS-6530MFP
This time, the description with (-->) was revised from the previous information.
The accurate serial numbers were added (page 2).
Topic
The APC PWB for the LSU was changed in order to improve the assembly process.
Accordingly, some attention is required when replacing the parts. Therefore, please refer to [Field Measures] below.
Content of Changes
1) The APC PWB for the LSU (No.1, 2) was changed in order to improve noise resistance.
2) The noise resistance parts (the ferrite core (A in the figure below) and the conductive clamp (B)) were abolished
as they became unnecessary after the change 1) above. Additionally, the wires (C, D) were changed.
(Old) Old type LSU (No.1, 2)
APC PWB
LSU (No.1, 2) A: Ferrite core --- Disused Old type wire(C)
B: Conductive clamp --- Disused Old type wire (D)
(New)
New type LSU (No.1, 2) APC PWB
New type
wire (C)
New type
wire (D)
* A to D above are not for field supply.
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
(Revised Issue 1) (Page.2/2)
Service Bulletin Ref. No. 2MW-0001 (C130)
July 12, 2012
Q'ty Com pati-
Old Part New Part bi lity
No. No. No. Description Remarks
Old New Old New
302K393071 302K393072
1 LK-475 1 1 X O Except KDKR
2K393071 2K393072
302K39K071 302K39K072
2 LK-475(KR) 1 1 X O For KDKR
2K39K071 2K39K072
KDC's Classification Entire Stock Rework In-Field modification at next visit
In-Field modification by case No modification necessary
Field Measure:
Please use the new type LSU (No.1, 2) when replacing the LSU for the machine after this change.
(The noise resistance margins will not be secured if the old type LSU is installed on the machine without the
noise resistance parts.) The new type LSU can be installed on the machine before this change. (Do not
remove the noise resistance parts such as ferrite core and conductive clamp.)
Serial Nos. of the Affected Machines: (-->) Please refer to the tables below.
(-->) Serial Nos. of the Affected Machines
FS-6530MFP
KDA CPY KDA 220VI KDBR KDE KDAU
1102MW2US0 1102MW2CS0 1102MW4US0 1102MW2BR0 1102MW3NL0 1102MW3AS0
Planned from the Planned from the 1st
NWV2600090 1st production NWX2600377 NWW2600023
1st production production
FS-6525MFP
KDA CPY KDA 220VI KDBR KDE KDAU
1102MX2US0 1102MX2CS0 1102MX4US0 1102MX2BR0 1102MX3NL0 1102MX3AS0
Planned from the 1st
NWZ2600324 NXH2600021 1st production NX42501025 NX22600051
production
KYOCERA Document Solutions Europe
Technical Customer Service Division (TCSD)
