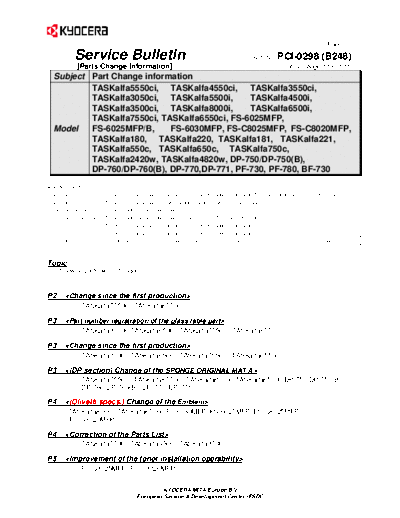

Image preview - the first page of the document
>> Download SB-PCI-0298-B248_ESDC documenatation <<
Text preview - extract from the document
(Page.1/11)
Service Bulletin Ref. No. PCI-0298 (B248)
[Parts Change Information] August 19, 2011
Subject Part Change information
TASKalfa5550ci, TASKalfa4550ci, TASKalfa3550ci,
TASKalfa3050ci, TASKalfa5500i, TASKalfa4500i,
TASKalfa3500ci, TASKalfa8000i, TASKalfa6500i,
TASKalfa7550ci, TASKalfa6550ci, FS-6025MFP,
Model FS-6025MFP/B, FS-6030MFP, FS-C8025MFP, FS-C8020MFP,
TASKalfa180, TASKalfa220, TASKalfa181, TASKalfa221,
TASKalfa550c, TASKalfa650c, TASKalfa750c,
TASKalfa2420w, TASKalfa4820w, DP-750/DP-750(B),
DP-760/DP-760(B), DP-770,DP-771, PF-730, PF-780, BF-730
Affected models:
PF-730 TASKalfa5550ci/4550ci/3550ci/3050ci, TASKalfa5500i/4500i/3500i, TASKalfa8000i/6500i, TASKalfa7550ci/6550ci
PF-780 TASKalfa5550ci/4550ci, TASKalfa8000i/6500i, TASKalfa7550ci/6550ci
DP-750/DP-760 TASKalfa500ci/400ci/300ci/250ci
DP-750(B)/DP-760(B) TASKalfa500ci/400ci/600ci/250ci, TASKalfa552ci, TASKalfa420i/520i
DP-770 TASKalfa5550ci/4550ci/3550ci/3050ci, TASKalfa5500i/4500i/3500i
DP-771 TASKalfa5550ci/4550ci/3550ci/3050ci, TASKalfa5500i/4500i/3500i
BF-730 DF-790 (Main unit: TASKalfa5550ci/4550ci/3550ci/3050ci,TASKalfa5500i/4500i/3500i,TASKalfa8000i/6500i,TASKalfa7550ci/6550ci)
Topic
The following parts were changed.
P2
TASKalfa7550ci, TASKalfa6550ci
P3
TASKalfa8000i, TASKalfa6500i, TASKalfa7550ci, TASKalfa6550ci
P3
TASKalfa8000i, TASKalfa6500i, TASKalfa7550ci, TASKalfa6550ci
P3 <(DP section) Change of the SPONGE ORIGINAL MAT A>
TASKalfa7550ci, TASKalfa6550ci, TASKalfa8000i, TASKalfa6500i, DP-750/DP-750(B),
DP-760/DP-760(B), DP-770, DP-771
P4 <(Olivetti specs.) Change of the Emblem>
TASKalfa8000i, TASKalfa6500i, FS-6030MFP, FS-6025MFP, FS-C8025MFP,
FS-C8020MFP
P4
TASKalfa5500i, TASKalfa4500i, TASKalfa3500i
P5
FS-C8025MFP, FS-C8020MFP
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.2/11)
Service Bulletin Ref. No. PCI-0298 (B248)
[Parts Change Information] August 19, 2011
P5
TASKalfa550c, TASKalfa650c, TASKalfa750c
P6
TASKalfa550c, TASKalfa650c, TASKalfa750c
P7 <(PF-800) Improvement of the LCF rear side latch>
TASKalfa550c, TASKalfa650c, TASKalfa750c
P7
TASKalfa550c, TASKalfa650c, TASKalfa750c
P8 <(DF-800/810) Correction of the Parts List>
TASKalfa550c, TASKalfa650c, TASKalfa750c
P8
TASKalfa4820w
P8
TASKalfa2420w, TASKalfa4820w
P9
BF-730
P10
TASKalfa5550ci, TASKalfa4550ci, TASKalfa3550ci, TASKalfa3050ci,TASKalfa5500i,
TASKalfa4500i, TASKalfa3500i
P11
TASKalfa180, TASKalfa220, TASKalfa181, TASKalfa221
TASKalfa7550ci, TASKalfa6550ci
The following parts were changed since the first production.
Com pati-
Old Part New Part Q'ty bi lity
No. Description Remarks
No. No.
Old New Old New
302K994110 302K994B00
1 PARTS CLN WT UNIT(M) SP 1 1 X O
2K994110 2K994B00
302LC94180 302K994B10
2 PARTS CLN WT MOTOR ASSY (M) SP 1 1 X O
2LC94180 2K994B10
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.3/11)
Service Bulletin Ref. No. PCI-0298 (B248)
[Parts Change Information] August 19, 2011
TASKalfa8000i, TASKalfa6500i, TASKalfa7550ci, TASKalfa6550ci
The part number of the glass table assembly was registered.
No.1
No.1 bottom view
Machine front side
Com pati-
Q'ty
No. Old Part New Part Description bi lity Remarks
No. No.
Old New Old New
302K994A70
1 -------- PARTS GLASS TABLE ASSY SP - 1 - O Newly registered
2K994A70
302K904031 302K904031
2 +COVER FRONT TOP 1 1 - - *1
2K904031 2K904031
302K904520 302K904520
3 +COVER GLASS TABLE 1 1 - - *1
2K904520 2K904520
302LC04340 302LC04340
4 +COVER ISU LEFT SUB 1 1 - - *1
2LC04340 2LC04340
*1: Listed in the Parts List
TASKalfa8000i, TASKalfa6500i, TASKalfa7550ci, TASKalfa6550ci
The following part was changed since the first production.
Com pati-
Old Part New Part Q'ty bi lity
No. Description Remarks
No. No.
Old New Old New
302K994310 302K994A80
1 PARTS MOTOR HB MID SP 1 1 X O
2K994310 2K994A80
<(DP section) Change of the SPONGE ORIGINAL MAT A From available timing in
June 2011 production>
TASKalfa7550ci, TASKalfa6550ci, TASKalfa8000i, TASKalfa6500i, DP-750/DP-750(B),
DP-760/DP-760(B), DP-770, DP-771
The following part was changed in order to strengthen the sponge applied between the DP original mat and the
hook & loop fastener.
Material: (Old) F-2G (New) RL-150FR
Thickness: (Old) 3 mm (New) 2.5 mm
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.4/11)
Service Bulletin Ref. No. PCI-0298 (B248)
[Parts Change Information] August 19, 2011
Com pati-
Old Part New Part Q'ty
bi lity
No. Description Remarks
No. No.
Old New Old New
303J902091 303M802320
1 SPONGE ORIGINAL MAT A 1 1 O O
3J902091 3M802320
<(Olivetti specs.) Change of the emblem Planned from available timing in July 2011
production>
TASKalfa8000i,TASKalfa6500i,FS-6030MFP,FS-6025MFP,FS-C8025MFP, FS-C8020MFP
The color of the emblem applied to the front cover was changed as follows.
(The illustration below is for the TASKalfa6500i.)
(Old) (New)
PANTONE COOL GRAY 10c PANTONE COOL GRAY 11c
Q'ty Compati-
No. Old Part New Part Description bi lity Remarks
No. No.
Old New Old New
302LG61020 302LG61020 *1
1 SHEET EMBLEM 6500(LV) 1 1 O O
2LG61020 2LG61020 TASKalfa6500i
302LF61020 302LF61020 *1
2 SHEET EMBLEM 8000(LV) 1 1 O O
2LF61020 2LF61020 TASKalfa8000i
*1: The part number remains unchanged.
TASKalfa5500i, TASKalfa4500i, TASKalfa3500i
The part name listed in the Parts List was corrected as follows.
[Wrong] [Correct]
Fig. Ref. Part No. Description Part No. Description
302LG93010 302LG93010
11 12 LK-6706 LK-6705
2LG93010 2LG93010
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.5/11)
Service Bulletin Ref. No. PCI-0298 (B248)
[Parts Change Information] August 19, 2011
FS-C8025MFP, FS-C8020MFP
The illustration on the label applied to the front cover and the one in the leaflet bundled in the toner kit were
changed as follows in order to improve the installation ability of the toner.
(Old) (New)
(Old)
(New)
Front cover (302KZ9401-/302KZ9406-/302KZ9402-/302K09436-)
TASKalfa550c, TASKalfa650c, TASKalfa750c
The following part (No.1) was changed in order to improve the assembly process.
Com pati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
305JN70XY0 305JN72GU0
1 BUSH-6-NU4 * * O O
5JN70XY0 5JN72GU0
*The qty. to be used is for one model.
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.6/11)
Service Bulletin Ref. No. PCI-0298 (B248)
[Parts Change Information] August 19, 2011
TASKalfa550c, TASKalfa650c, TASKalfa750c
The machine front side bearing (No.1) of two bearings at the both ends of the transfer roller was changed in order
to improve the assembly process.
(No.2) (No.1)
11 mm 13 mm
Material: Conductive polyacetal
Color: Black Material: POM
Grease: Apply Color: White
Grease: Not required
FIG. 30 TRANSFER-BELT-1 FIG. 31 TRANSFER-BELT-2
No.2 No.1
Com pati-
Old Part New Part Q'tybi lity
No. Description Remarks
No. No.
Old New Old New
305JN72RM0
1 ---------- BUSH-TR1-TBU - 2 - O
5JN72RM0
Two of them
305JN70170 305JN70170
2 HOLDER:HLDR-TR-ROLL 4 2 O - were changed
5JN70170 5JN70170
to No.1.
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.7/11)
Service Bulletin Ref. No. PCI-0298 (B248)
[Parts Change Information] August 19, 2011
<(PF-800) Improvement of the LCF rear side latch After using up the old stock>
TASKalfa550c, TASKalfa650c, TASKalfa750c
The PF-800's rear side latch might very rarely come off from the machine when the upper part of the front cover
was strongly pressed by hand while fully pulling the tray unit out. Therefore, the tension of the spring was
increased in order to improve the margin. X
Release button Rear side hook (view from X)
Hook coming off
Front side hook Spring change
(No.2 Spring) --- No change (No.2: Silver No.1: Black)
Com pati-
Q'ty
No. Old Part New Part Description bi lity Remarks
No. No.
Old New Old New
305JN72RP0 Machine rear
1 ------------ SPRING:SPG-E-7R5XR8X42R2 - 1 - O
5JN72RP0 Spring (Black)
305JN703E0 305JN703E0
2 SPRING:SPE-LOCK 2 1 O - *1 (Silver)
5JN703E0 5JN703E0
*1: (Old) Used for machine front/rear hooks (New) Used for the machine front hook only; changed to No.1 for the machine
rear side
TASKalfa550c, TASKalfa650c, TASKalfa750c
The below is the new part number of the part in the Parts List illustration. (The part number only was already
listed in the No.16 of Fig.91 HARNESS-DRV_ADU in the Parts List.)
FIG. 45 REAR-FRAME-1-ASM
No.1
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.8/11)
Service Bulletin Ref. No. PCI-0298 (B248)
[Parts Change Information] August 19, 2011
Com pati-
Old Part New Part Q'ty
bi lity
No. Description Remarks
No. No.
Old New Old New
305JN72C00
1 ---------- WIRE HARNESS:HRNS-RLY-430 - 1 - O
5JN72C00
<(DF-800/810) Correction of the Parts List>
TASKalfa550c, TASKalfa650c, TASKalfa750c
The part name in the Parts List was changed as follows.
[Wrong] [Correct]
Fig. Ref. Part No. Description Part No. Description
305JN70SX0 305JN70SX0
1 1 COVER-FRT-EPU-434T HANDLE:HNDL-JCT-PIT
5JN70SX0 5JN70SX0
TASKalfa4820w
The following part (No.1) was changed for common use.
Com pati-
Old Part New Part Q'ty
bi lity
No. Description Remarks
No. No.
Old New Old New
305H675880 305J071320
1 PLATE GRID 1 1 O O
5H675880 5J071320
TASKalfa2420w, TASKalfa4820w
The part number of the CPU (No.1) was registered.
Also, the washer for the eject unit was corrected as follows.
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.9/11)
Service Bulletin Ref. No. PCI-0298 (B248)
[Parts Change Information] August 19, 2011
FIG. 1 ASSEMBLY LOCATION 1 FIG. 24 PAPER EXIT ASSY 1 (Inside)
---Affected model TASKalfa2420w, TASKalfa4820w ----Affected model TASKalfa4820w
No.1
No.2
[120/230V]CONTROLLER ASSY: IPS DC1 CONTROLLER (305JZ7004-)
[120V] CONTROLLER ASSY: IPS DC1 CONTROLLER (305JZ7004-)
[230V] PARTS CONTROLLER ASSY EU SP (305JZ9401-)
Compati-
Old Part New Part Q'ty bi lity
No. No. No. Description Remarks
Old New Old New
305J071300 TASKalfa2420w
1 ---------- CPU: CELERON2.0G - 1 - O
5J071300 TASKalfa4820w
305JZ70290 305H678150
2 WASHER SPECIAL 2 2 X O TASKalfa4820w
5JZ70290 5H678150
BF-730
The part number was registered to the assembly and the individual part 303J128280
PAD EJECT PAPER
for the ARM PAPER EJECT HOLDER. HOLDER
303J128300
FILM EJECT PAPER
HOLDER 303J128251
SHAFT EXIT
PAPER HOLDER
303J128290
COVER EJECT PAPER
HOLDER
No.1 303ND28101
ARM PAPER EJECT No.1 backside view
HOLDER
KYOCERA MITA Europe B.V.
European Service & Development Center (ESDC)
(Page.10/11)
Service Bulletin Ref. No. PCI-0298 (B248)
[Parts Change Information] August 19, 2011
Com pati-
Old Part New Part Q'ty bi lity
No. Description Remarks
No. No.
Old New Old New
303ND94100 PARTS ARM PAPER EJECT HOLDER Newly
1 -------- - 1 - O
3ND94100 ASSY SP registered
303ND28101
2 -------- +ARM PAPER EJECT HOLDER - 1 - O
3ND28101
303J128290
3 -------- +COVER EJECT PAPER HOLDER - 1 - O
3J128290
303J128300
4 -------- +FILM EJECT PAPER HOLDER - 1 - O
3J128300
303J128280
5 -------- +PAD EJECT PAPER HOLDER - 1 - O
3J128280
303J128251
6 -------- +SHAFT EXIT PAPER HOLDER - 1 - O
3J128251
TASKalfa5550ci, TASKalfa4550ci, TASKalfa3550ci, TASKalfa3050ci,TASKalfa5500i,
TASKalfa4500i, TASKalfa3500i
The waste toner bottle cap was changed as follows in order to tightly close and to strengthen the hinge part.
Tight close --Size A: 22->22.1 Size B: 22->21.8 Projection D: 0.1 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
