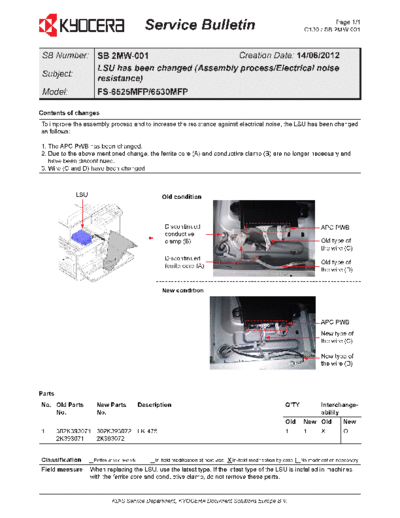

Image preview - the first page of the document



>> Download 2MW-001 documenatation <<

Text preview - extract from the document

                                            Service Bulletin                                                        Page /
                                                                                                          C30 / SB 2MW-00



 SB Number: SB 2MW-001                    Creation Date: 14/06/2012
            LSU has been changed (Assembly process/Electrical noise
 Subject:
            resistance)
 Model:               FS-6525MFP/6530MFP

Contents of changes
To improve the assembly process and to increase the resistance against electrical noise, the LSU has been changed
as follows:

1. The APC PWB has been changed.
2. Due to the above mentioned change, the ferrite core (A) and conductive clamp (B) are no longer necessary and
   have been discontinued.
3. Wire (C and D) have been changed.



             LSU                                   Old condition



                                                   Discontinued                                                 APC PWB
                                                   conductive
                                                   clamp (B)                                                    Old type of
                                                                                                                the wire (C)
                                                   Discontinued
                                                                                                                Old type of
                                                   ferrite core (A)
                                                                                                                the wire (D)


                                                   New condition




                                                                                                                APC PWB
                                                                                                                New type of
                                                                                                                the wire (C)

                                                                                                                New type of
                                                                                                                the wire (D)



Parts
No. Old Parts        New Parts            Description                                             Q'TY          Interchange-
    No.              No.                                                                                        ability
                                                                                                  Old    New Old         New
        302K39307 302K393072              LK-475                                                                X        O
        2K39307   2K393072


Classification      Entire stock rework                                X In-field modification by case No modification necessary
                                               In-field modification at next visit
Field measure      When replacing the LSU, use the latest type. If the latest type of the LSU is installed in machines
                   with the ferrite core and conductive clamp, do not remove these parts.


                            KDIS Service Department, KYOCERA Document Solutions Europe B.V.
